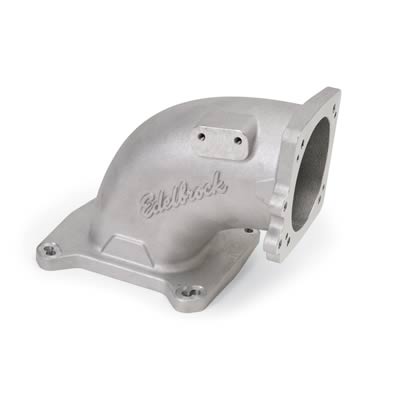

Edelbrock High-Flow EFI 4500 Series Intake Elbows 3815

These Edelbrock High-Flow EFI 4500 Series Intake Elbows are intended for very high-power naturally aspirated EFI applications and turbocharged or centrifugal-supercharged engines making over 1,100 horsepower. These castings are CNC-machined to a 120mm opening and have a 4.250-inch-square throttle body bolt pattern with a base flange bolt pattern of 5.375-inch-square for use with 4500-series intake manifolds. These elbows have a 10-degree downward angle for a total of 100 degrees and can be mounted in a forward, backward or sideways configuration. An internal divider prevents flow from concentrating at the back of the manifold, which is a condition that commonly occurs with other elbows.Brand: Edelbrock
Manufacturer's Part Number: 3815
Part Type: Throttle Body Intake Elbows
Product Line: Edelbrock High-Flow EFI 4500 Series Intake Elbows
HP Direct Part Number: EDL-3815
UPC: 085347038152
Intake Elbow Type: Elbow
Throttle Body Bore Size: 120mm

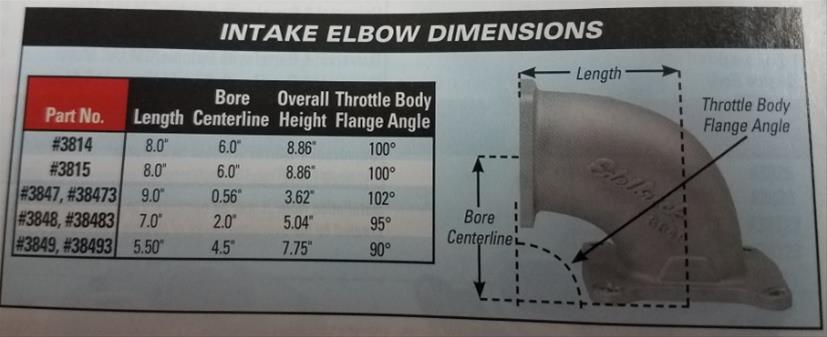

Intake Elbow Height (in.): 8.86
Intake Elbow Material: Aluminum
Intake Elbow Color: Satin
Quantity: Sold individually.
Notes: Includes universal throttle bracket. For smaller 90mm throttle bodies use EDL-3814
