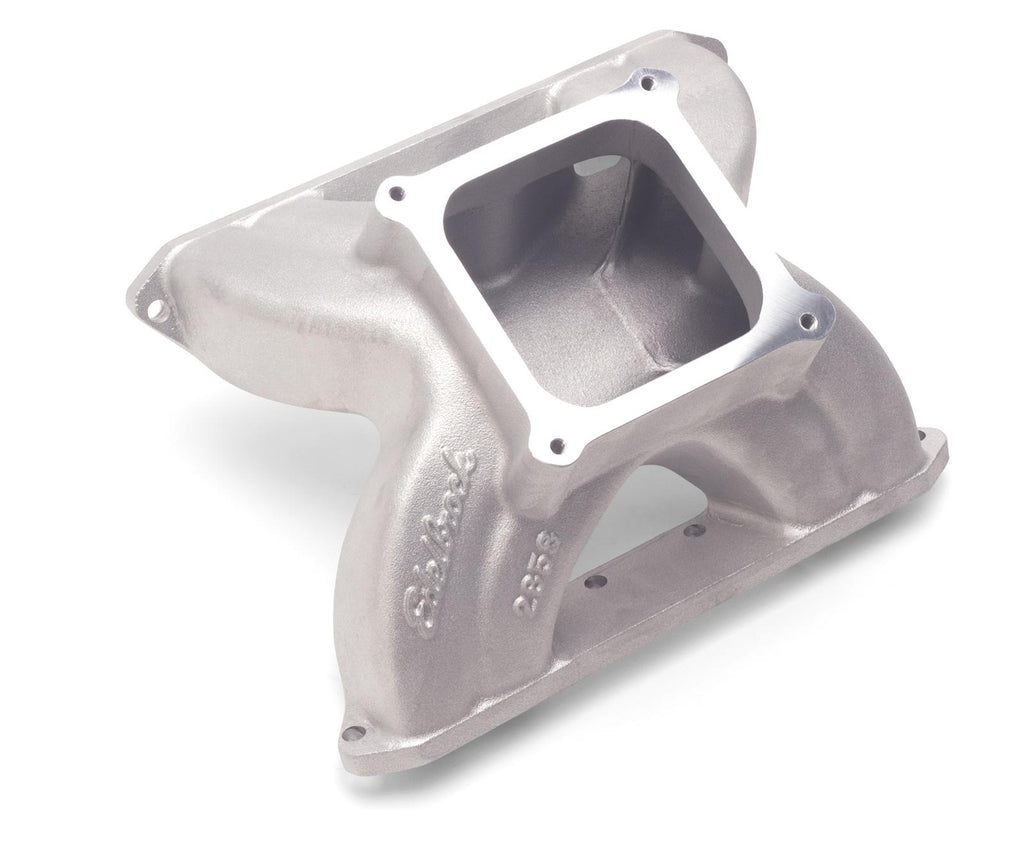

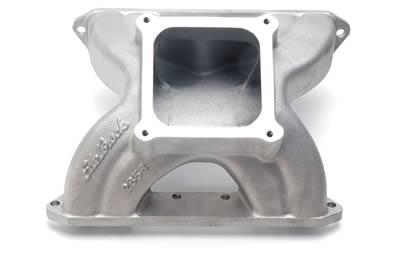

Edelbrock Glidden Victor Spider Intake Manifolds 2858

Edelbrock Glidden Victor Spider intake manifolds are specifically intended for use on 375 c.i.d. and higher HO drag race engines. They were developed in conjunction with noted drag racer Billy Glidden to complement the flow characteristics of fully ported 18 and 15 degree cylinder heads. The intake manifolds use either 4150 or a 4500 Series Dominator carburetor flange and dividers that have been pulled back to increase plenum size and shorten the runners for improved high-rpm performance. The runners are wider at the plenum, producing approximately 3.6 sq. in. of area at the opening. A Victor base, sold separately, is required for installation.Brand: Edelbrock
Manufacturer's Part Number: 2858
Part Type: Intake Manifolds, Carbureted
Product Line: Edelbrock Glidden Victor Spider Intake Manifolds
HP Direct Part Number: EDL-2858
UPC: 085347028580
Intake Section Included: Complete
Engine Block Deck Height: Standard deck
Carburetor Quantity: One
Intake Style: Single plane
Basic Operating RPM Range: 5,000-8,500
Intake Color: Natural
Intake Material: Aluminum
EGR: No
Quantity: Sold individually.
Notes: Uses 4500 carb flange.
