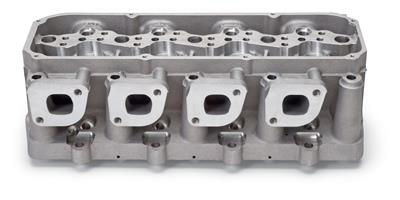

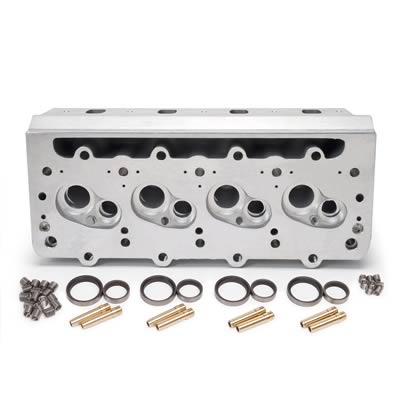

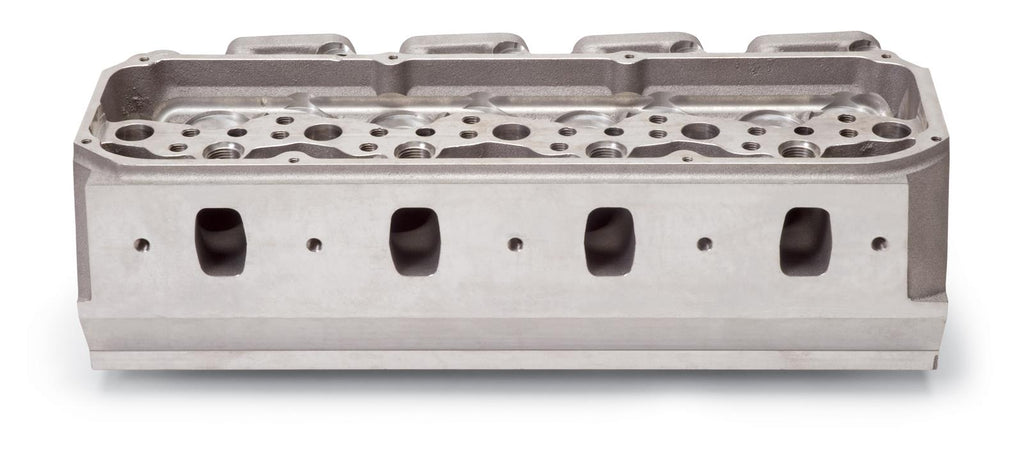

Edelbrock Glidden Victor SC-1 Pro-Port Raw Cylinder Heads 770769

With a true canted valve design (7.3 degree intake and 6.9 degree exhaust valve angles), these Edelbrock Glidden Victor SC-1 Pro-Port Raw cylinder heads have maximum power potential. Their extended intake flange and raised runners work with Yates-style manifolds. These heads are ideal for unlimited drag racing.Brand: Edelbrock
Manufacturer's Part Number: 770769
Part Type: Cylinder Heads
Product Line: Edelbrock Glidden Victor SC-1 Pro-Port Raw Cylinder Heads
HP Direct Part Number: EDL-770769
UPC: 085347994304
Combustion Chamber Volume (cc): 20
Cylinder Head Style: Bare
Cylinder Head Material: Cast aluminum
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.240 in.
CNC-Machined Combustion Chamber: No
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Intake Port Location: Raised
Exhaust Port Shape: Rectangular
Exhaust Port Location: Raised
Intake Valves Included: No
Exhaust Valves Included: No
Exhaust Valve Diameter (in.): 1.640 in.
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 7.30
Exhaust Valve Angle: 6.90
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: No
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold individually.
Notes: Designed specifically for the professional head porter and engine builder. Unported and can not be used without professional head preparation.
