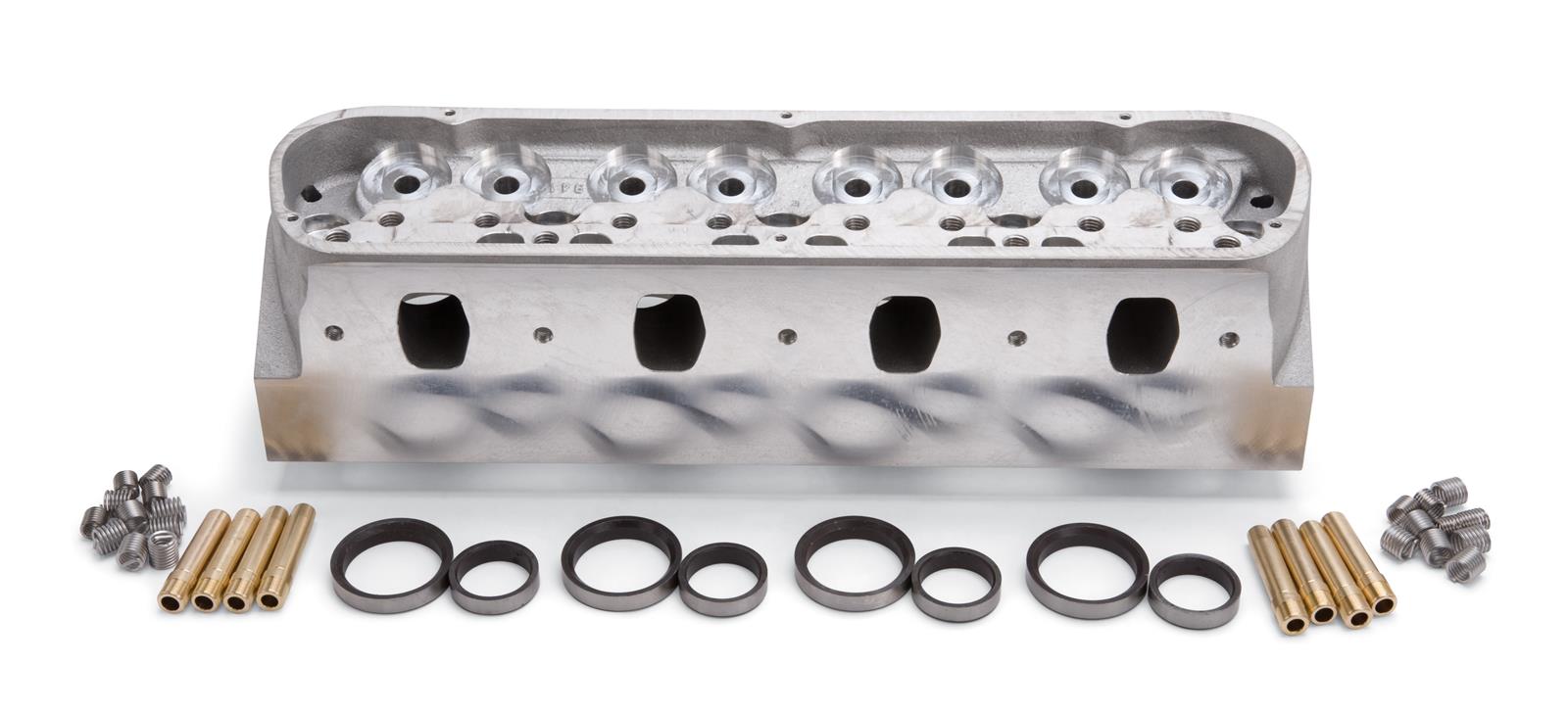

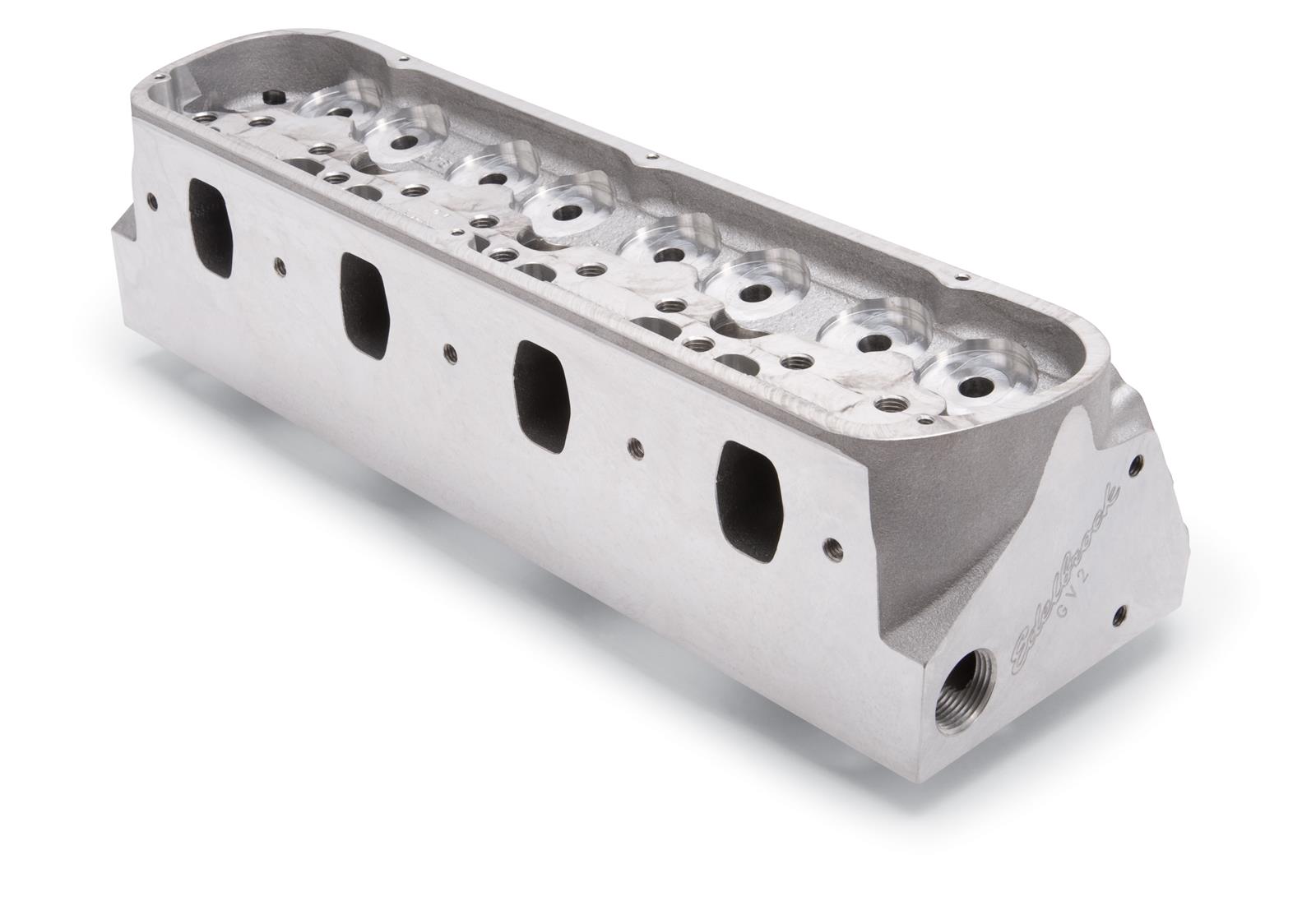

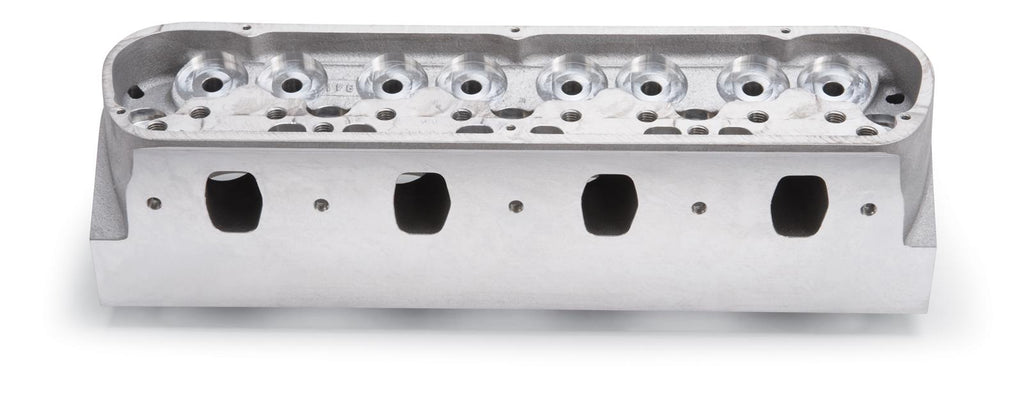

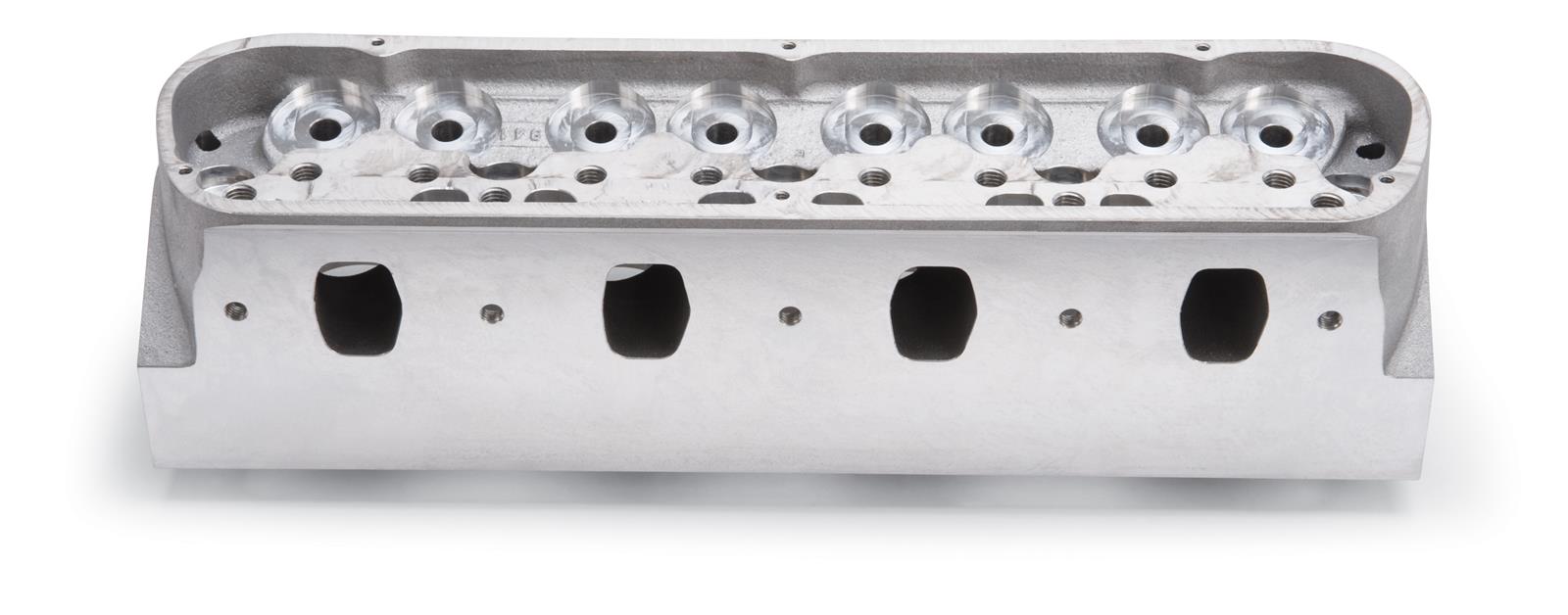

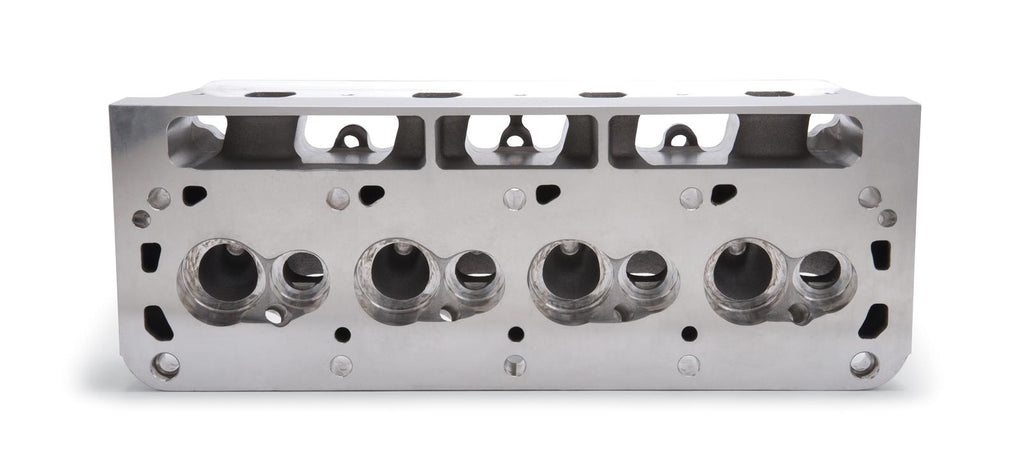

Edelbrock Glidden Victor II Pro Port Raw Cylinder Heads 773169

Edelbrock Glidden Victor II Pro-Port heads feature small ports and chambers with thick walls. They're designed for classes requiring in-line valves but not restricted to OEM port location. Their extended intake flange and raised runners work with Yates-style manifolds, and their raised exhaust port fits standard Yates header flanges. These heads have an improved spark plug location and angle, along with an improved water jacket design yielding a lighter and stronger casting. Water outlets are provided on the front and rear for external plumbing of a water crossover.Brand: Edelbrock
Manufacturer's Part Number: 773169
Part Type: Cylinder Heads
Product Line: Edelbrock Glidden Victor II Pro Port Raw Cylinder Heads
HP Direct Part Number: EDL-773169
UPC: 085347994373
Combustion Chamber Volume (cc): 24
Cylinder Head Style: Bare
Cylinder Head Material: Cast aluminum
Intake Valve Diameter (in.): 2.240 in.
CNC-Machined Combustion Chamber: No
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Intake Valves Included: No
Exhaust Valves Included: No
Exhaust Valve Diameter (in.): 1.640 in.
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 11.3
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: No
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold individually.
Notes: Heads are Hot Isostatic Pressing or HIP processed for optimum strength. Seats and manganese-bronze valve guides are included, yet not installed. These heads can not be used without professional head preparation.
