Description

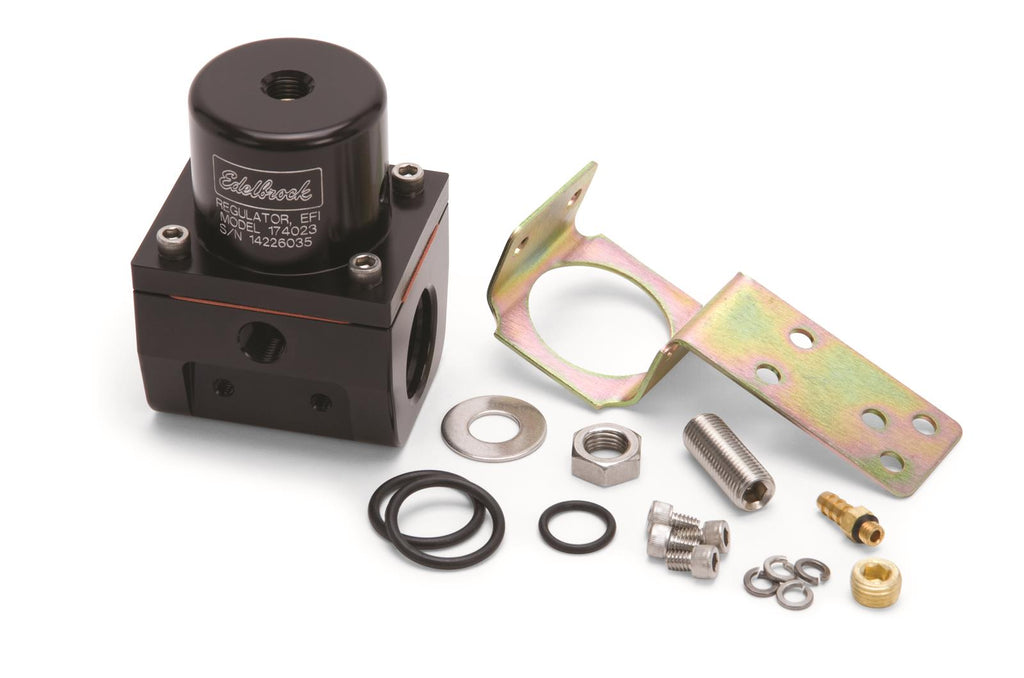

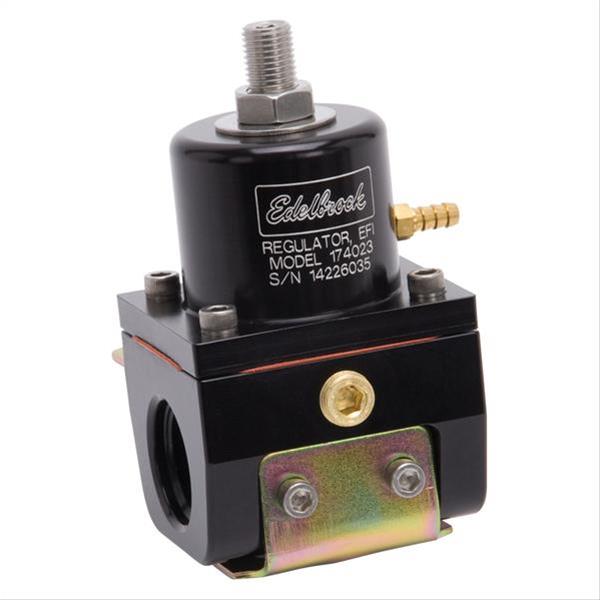

Edelbrock fuel pressure regulators are machined from aircraft-quality aluminum for those who demand the best. These regulators feature fluorosilicone diaphragm material for extended life and high-temperature protection. They are compatible with all grades of gasoline/methanol.Brand: Edelbrock
Manufacturer's Part Number: 174023
Part Type: Fuel Pressure Regulators
Product Line: Edelbrock Fuel Pressure Regulators
HP Direct Part Number: EDL-174023
UPC: 087133932279
Regulator Pressure (psi): 35-90
Regulator Style: Return
Regulator Location: Inline
Boost/Vacuum Reference Port: Yes
Boost/Vacuum Rise Ratio: 1:1
Gauge Port: Yes
Inlet Quantity: 1
Regulator Inlet Size: -10 AN
Inlet Attachment: Female straight cut O-ring
Outlet Quantity: 1
Regulator Outlet Size: -10 AN
Outlet Attachment: Female straight cut O-ring
Return Fitting Size: -6 AN
Return Attachment: Female straight cut O-ring
Fittings Included: Yes
Regulator Material: Aluminum
Regulator Color: Black
Rebuildable: Yes
Mounting Bracket Included: Yes
Remanufactured: No
Quantity: Sold as a kit.
Notes: 180 gallons per hour.
