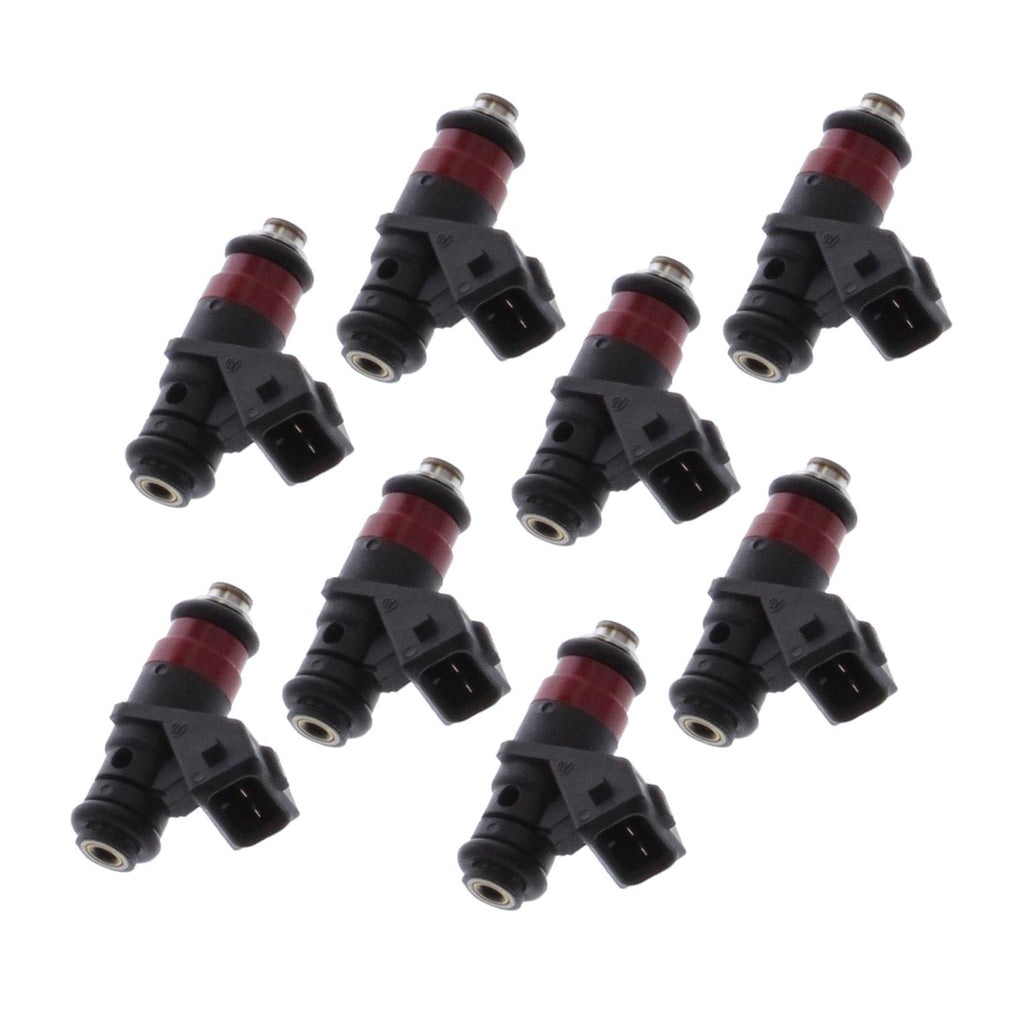

Edelbrock Fuel Injectors 3522

Edelbrock fuel injectors offer precise, controlled fuel flow for better power, throttle response, and economy. They are available in a number of designs to fit the various Edelbrock fuel injection systems, as well as a wide range of fuel flow rates.Brand: Edelbrock
Manufacturer's Part Number: 3522
Part Type: Fuel Injectors
Product Line: Edelbrock Fuel Injectors
HP Direct Part Number: EDL-3522
UPC: 85347035229
OEM Replacement: No
Injector Advertised Flow Rate (lbs./hr.): 80 lbs./hr.
Injector Advertised Flow Rate (cc/min.): 819.0cc/min.
Injector Plug Style: Jetronic/Minitimer
Injector Impedance: 12.5 ohms
Driver Type: 12V saturated circuit
Overall Height (in.): 1.89 in.
Seat to Seat Height (in.): 1.152 in.
Manifold O-Ring Outside Diameter (in.): 0.587 in.
Fuel Rail O-Ring Outside Diameter (in.): 0.594 in.
Outside Diameter (in.): 0.602
Wiring Harness Included: No
O-Rings Included: Yes
Remanufactured: No
Quantity: Sold as a set of 8.
Notes: Short Body Siemens Deka injector features a red band around the black injector for identification. Capable of up to 1050 hp supercharged or 1300 hp naturally aspirated. These injectors are an upgrade for the ProFlo 4 and are compatible with many OEM and aftermarket EFI systems.
