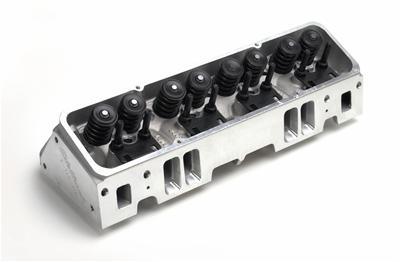

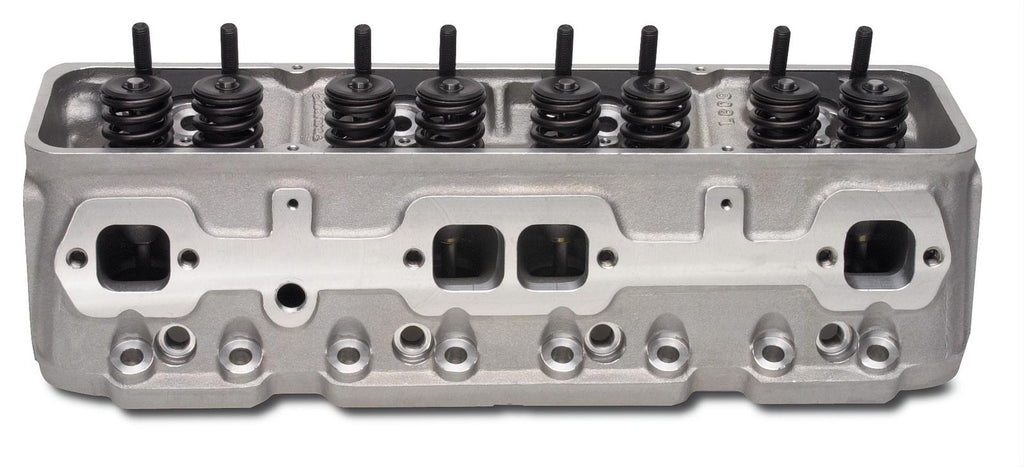

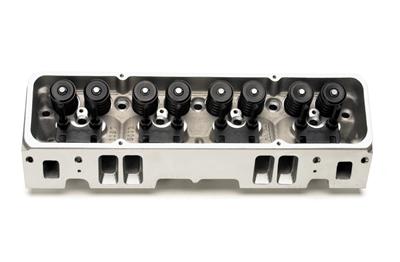

Edelbrock E-Tec Cylinder Heads 60975

Engineered for maximum performance, the new E-Tec Series aluminum cylinder heads fit all small Chevys with Vortec-style intake manifolds. They incorporate Edelbrock's new high-quench 64cc combustion chamber design, which promotes a more uniform atomization of the air/fuel mixture for increased power. Available with 170cc or 200cc intake runners, these cylinder heads are assembled with one-piece stainless steel valves, 1.46 in. valve springs, retainers, and locks. The E-Tec models accept either centerbolt or standard valve covers, and work with most exhaust manifolds and headers. Match your vehicle specs to the correct Edelbrock head for precise fitment.
Brand: Edelbrock
Manufacturer's Part Number: 60975
Part Type: Cylinder Heads
Product Line: Edelbrock E-Tec Cylinder Heads
HP Direct Part Number: EDL-60975
UPC: 085347609758
Combustion Chamber Volume (cc): 64
Intake Runner Volume (cc): 170cc
Exhaust Runner Volume (cc): 70cc
Cylinder Head Style: Assembled
Cylinder Head Material: Cast aluminum
Camshaft Style: Hydraulic roller
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 1.940 in.
CNC-Machined Combustion Chamber: No
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: Square
Exhaust Port Location: Standard
Spark Plug Style: Straight
Intake Valves Included: Yes
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in.): 1.550 in.
Valve Springs Included: Yes
Maximum Valve Lift (in.): 0.600 in.
Outside Diameter of Outer Spring (in.): 1.460 in.
Damper Spring Included: Yes
Number of Springs Per Valve: Dual
Retainers Included: Yes
Retainer Material: Steel
Locks Included: Yes
Lock Style: 7 degree
Valve Stem Seals Included: Yes
Valve Stem Seal Style: Positive stop
Rocker Arm Studs Included: Yes
Rocker Arm Nut Thread Size: 3/8 in.-24
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: Yes
Guideplate Pushrod Size: 5/16 in.
Valve Cover Mounting Style: Center and perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 23
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Powdered metal
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold individually.
CARB EO Number(s): D-215-94
Emissions: California EO Approved
