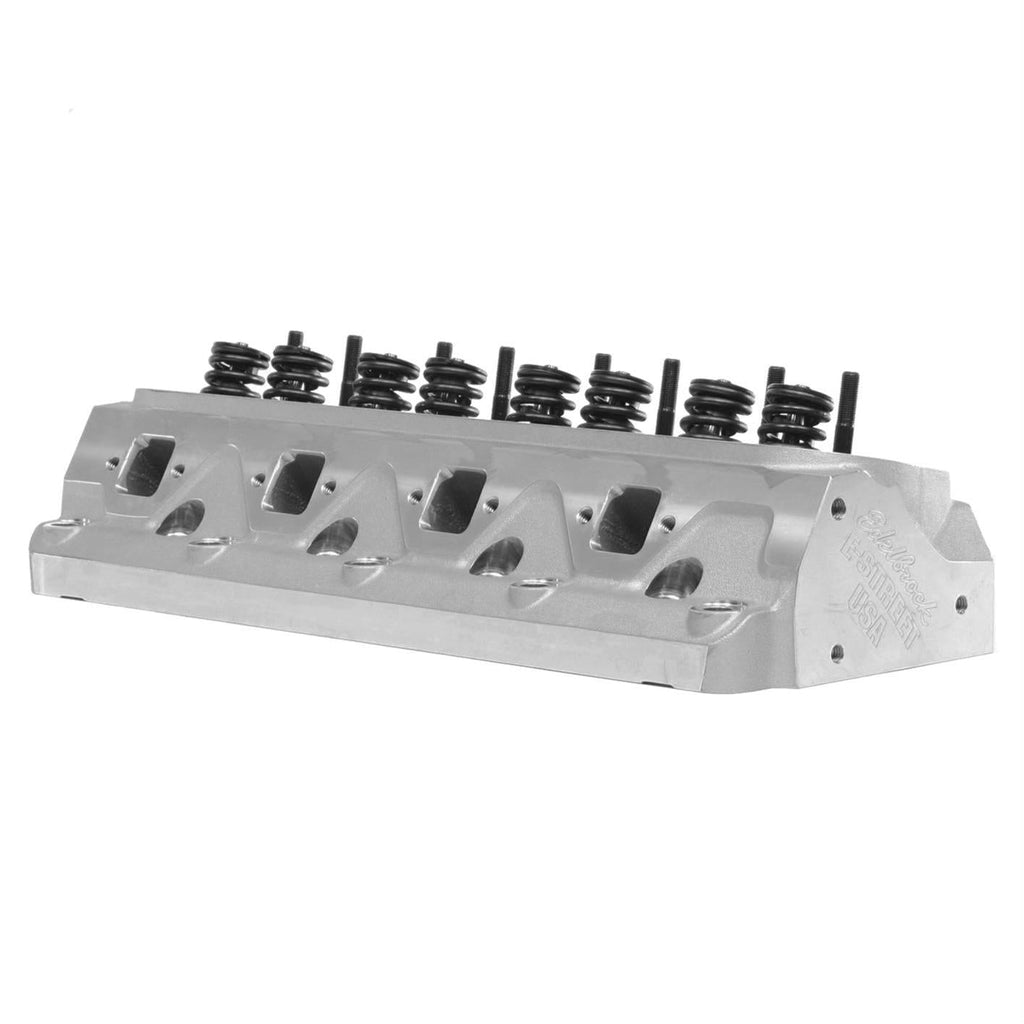

Edelbrock E-Street Cylinder Heads 5025

Are you looking for a set of entry-level street performance heads for your modern street rod, muscle car, or truck? Edelbrock E-Street cylinder heads are just the ticket. These heads feature A356 aluminum castings that are heat-treated to T-6 specs for superior casting strength and quality. Their modern combustion chamber design helps to improve the combustion process and their larger-than-stock intake and exhaust ports help to move more air through your engine. These features improve an engine's efficiency, resulting in more horsepower and torque and improved mileage potential. All Edelbrock E-Street cylinder heads are assembled with manganese bronze valve guides, powder metal interlocking valve seats, and stainless steel one-piece valves with hardened valve tips. Edelbrock E-Street cylinder heads are ideal for entry level street performance engines.Brand: Edelbrock
Manufacturer's Part Number: 5025
Part Type: Cylinder Heads
Product Line: Edelbrock E-Street Cylinder Heads
HP Direct Part Number: EDL-5025
UPC: 085347050253
Combustion Chamber Volume (cc): 60
Intake Runner Volume (cc): 170cc
Exhaust Runner Volume (cc): 60cc
Cylinder Head Style: Assembled
Cylinder Head Material: Cast aluminum
Camshaft Style: Hydraulic flat tappet
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.020 in.
CNC-Machined Combustion Chamber: No
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: Square
Exhaust Port Location: Standard
Intake Valves Included: Yes
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in.): 1.600 in.
Valve Springs Included: Yes
Maximum Valve Lift (in.): 0.550 in.
Outside Diameter of Outer Spring (in.): 1.460 in.
Damper Spring Included: Yes
Number of Springs Per Valve: Single
Retainers Included: Yes
Retainer Material: Steel
Locks Included: Yes
Lock Style: 7 degree
Valve Stem Seals Included: Yes
Valve Stem Seal Style: Umbrella
Rocker Arm Studs Included: Yes
Rocker Arm Nut Thread Size: 3/8 in.-24
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: Yes
Guideplate Pushrod Size: 5/16 in.
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Powdered metal
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold as a pair.
Notes: Designed for use with hydraulic flat tappet camshafts with less than .550 in. lift. Requires use of hardened pushrods. Part number EDL-9680 head bolt bushing kit required for use with 7/16 in. head bolts. The valve and seat combination used in these heads is not recommended for use with a hydraulic or mechanical roller camshafts.
