Edelbrock E-Force TVS2650 Mustang Stage 2 Track System Supercharger Kits 15388

Edelbrock E-Force TVS2650 Mustang Stage 2 track system supercharger kits will transform your late model muscle car into a force to be reckoned with! The kits utilize Eaton's TVS2650 supercharger rotors. The high twist, 4-lobe rotor design is 15 percent larger than the TVS2300 and features several improvements to maximize efficiency and performance at upper RPMs, including:

* 170 degree twist (versus 160)
* Better sealing with optimized "length to diameter" ratio
* Increased durability with larger bearings and timing gears
* Pressure relief ports in bearing plate for reduced input power

Models are available for Coyote or stock cylinder head configuration; with or without damper these features: computer chip/programmer; damper; fuel pump; and belt tensioner. Order the kit with options preferred for your application.Brand: Edelbrock
Manufacturer's Part Number: 15388
Part Type: Superchargers, Roots Style Kits
Product Line: Edelbrock E-Force TVS2650 Mustang Stage 2 Track System Supercharger Kits
HP Direct Part Number: EDL-15388
UPC: 085347153886
Cylinder Head Configuration: Coyote
Supercharger Pulley Included: Yes
Pulley Style: Serpentine
Engine Block Deck Height: Standard deck
Damper Included: Yes
Crankshaft Pulley Grooves: 8-groove, serpentine
Supercharger Finish: Black
Computer Chip/Programmer Included: Yes
Multi-Port Fuel Rails Included: Yes
Fuel Injectors Included: Yes
Fuel Pump Included: No
Regulator Included: No
Wiring Harness Included: Yes
Linkage Included: No
Intercooler Included: Yes
PTFE Lined Rotors: No
Supercharger Model: Eaton TVS 2650
Belt Tensioner Included: Yes
Remanufactured: No
Quantity: Sold as a kit.

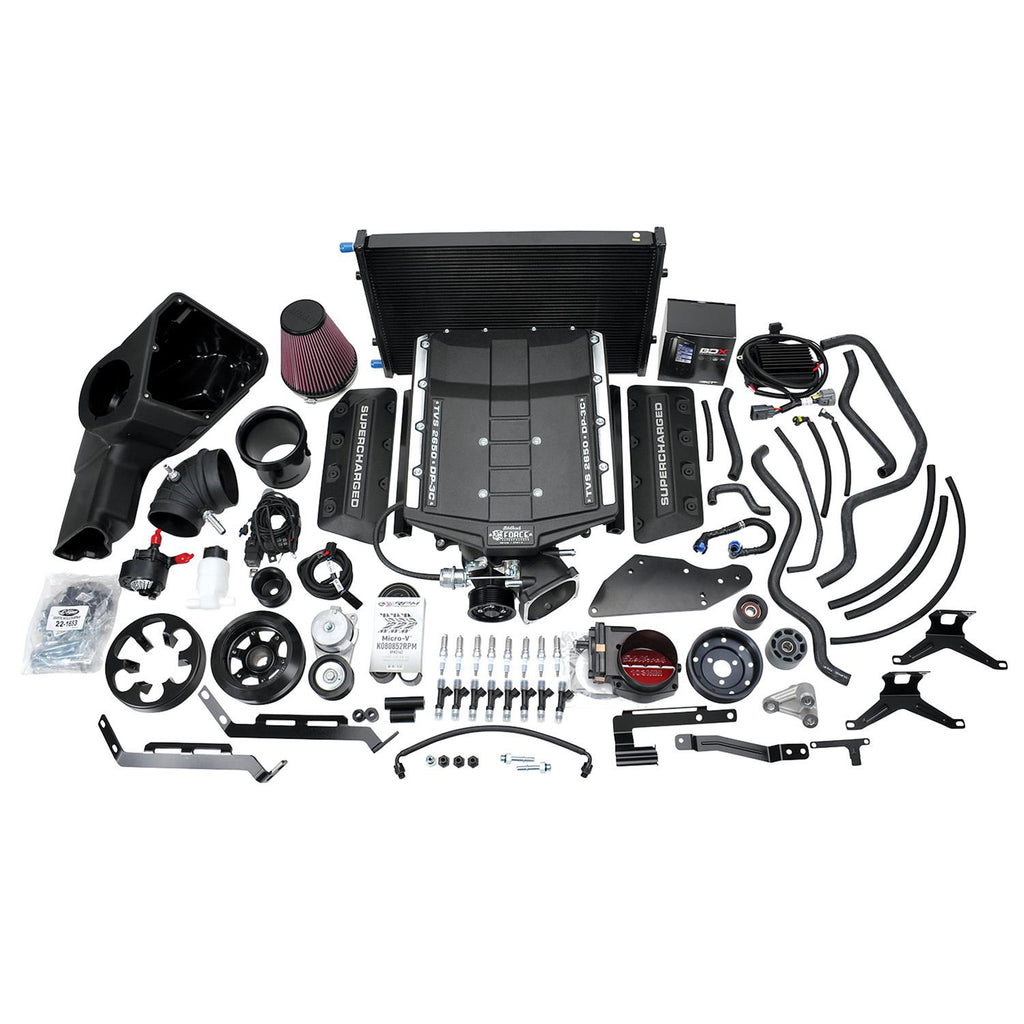

Notes: Kit features Eaton's R2650 rotor group along with Edelbrock's dual-pass 3-core intercooler. Also includes a 103mm throttle body, high-flow 113mm air intake system, 8-Rib Belt Drive, upgraded port fuel injectors and a fuel pump voltage booster.
CARB EO Number(s): D-215-115
Emissions: California EO Approved
