Edelbrock E-Force FR-S and BRZ Supercharger Kits 1556

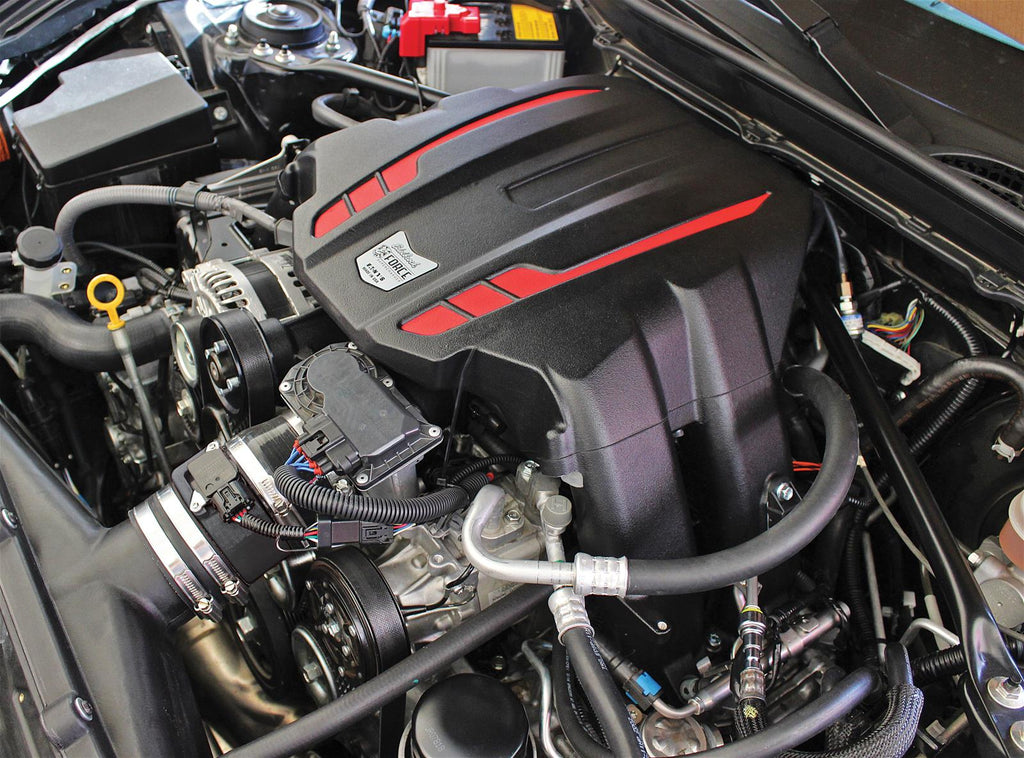

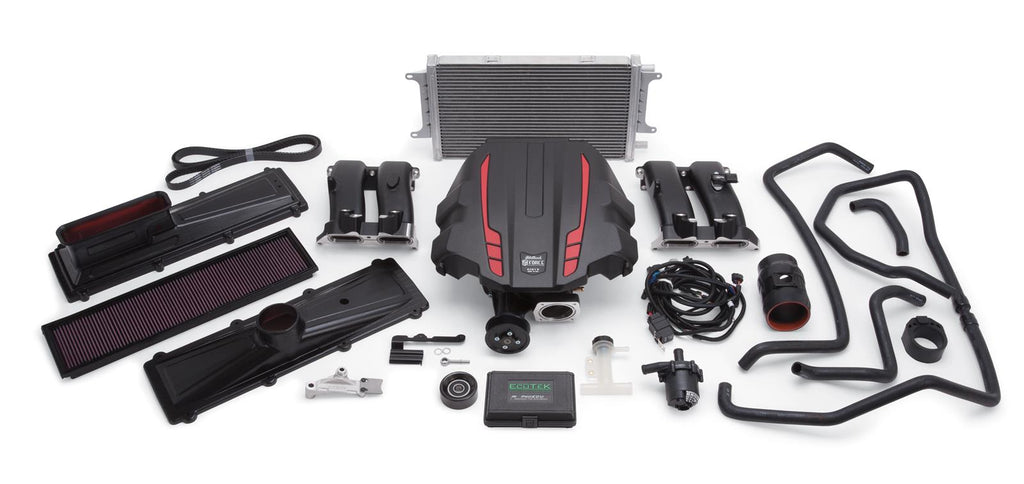

Edelbrock E-Force FR-S and BRZ Supercharger kits have finally arrived for your 2.0L equipped FR-S and BRZ. These kits are designed exclusively for the FA20/4U-GSE engine. The unique inverted design features long runners that allow for maximum flow at high rpm, while retaining great daily driving characteristics. The superchargers have been designed from the ground-up and utilize Eaton 1320 TVS rotor assemblies for maximum efficiency in a compact package. As with all Edelbrock E-Force superchargers, these systems feature an efficient high-flow inlet configuration that results in a shorter, less restrictive intake path for improved airflow and performance. A large dual pass air-to-water intercooler and heat exchanger cool the incoming air. All of these features help the E-Force supercharger to deliver dramatically improved performance—especially in the mid-range, where power dips have been eliminated for a smooth linear power curve. Lastly, each supercharger assembly is finished in a durable black powdercoat with red accents for a unique look that will let everyone know your car is E-Force powered! Kits are available with or without tuner. Order the model recommended for your vehicle.

Additional product features:

* High-flow intake box and filter that allows for twice the airflow
* Compact design fits under the stock hood without modification
* Supplied with preformed hoses for ease of installation
* Bolt-on installation; everything fits right out of the box with no cutting or welding required
* Features Eaton Gen VI 1320 TVS rotor assembly—the same high-quality rotors used by many OEM manufacturers
* Self-contained oil system with 100,000 mile service interval (no drilling or plumbing required)
* Includes an EcuTek ProECU Programming Kit with E-Force tune pre-installed
* Integrated bypass valve for minimal decrease in fuel economy
* 50-state emissions pending with Edelbrock tune
* 3-year / 36,000 mile powertrain warranty
Brand: Edelbrock
Manufacturer's Part Number: 1556
Part Type: Superchargers, Roots Style Kits
Product Line: Edelbrock E-Force FR-S and BRZ Supercharger Kits
HP Direct Part Number: EDL-1556
UPC: 085347015566
Cylinder Head Configuration: Stock
Supercharger Pulley Included: Yes
Pulley Style: Serpentine
Engine Block Deck Height: Standard deck
Damper Included: No
Supercharger Finish: Black
Computer Chip/Programmer Included: Yes
Multi-Port Fuel Rails Included: No
Fuel Injectors Included: No
Fuel Pump Included: No
Regulator Included: No
Wiring Harness Included: Yes
Linkage Included: Yes
Intercooler Included: Yes
PTFE Lined Rotors: No
Supercharger Model: Eaton TVS 1320
Belt Tensioner Included: Yes
Remanufactured: No
Quantity: Sold as a kit.
CARB EO Number(s): D-215-116
Emissions: California EO Approved
