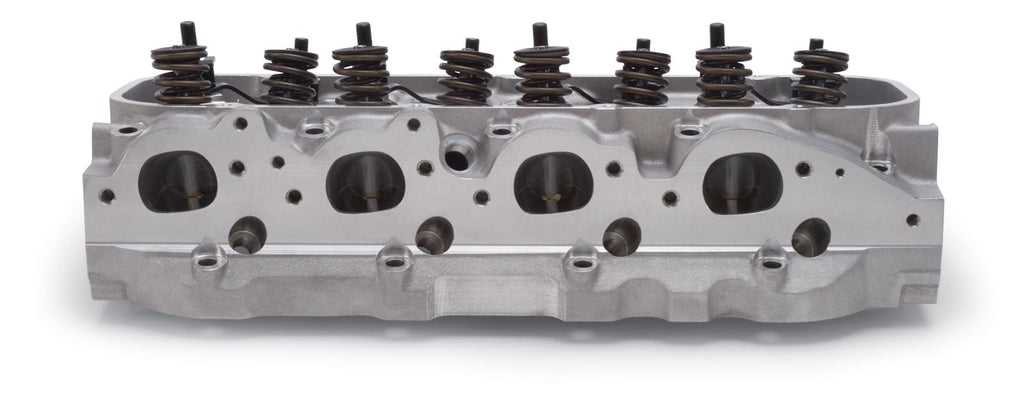

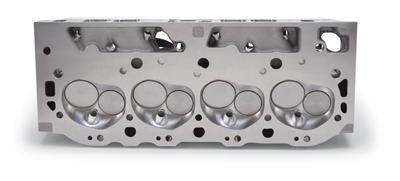

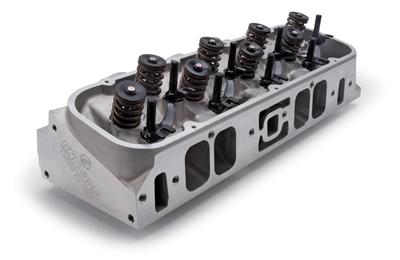

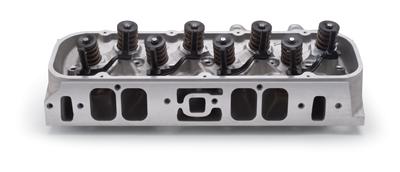

Edelbrock E-CNC 355 cylinder heads afford you the ultimate in performance! E-CNC 355 heads are fully CNC-ported to make more horsepower and torque in your high performance street or entry-level race application. Edelbrock cylinder heads are made in America and come available either bare or assembled. Improved airflow and modified spark plug angles that increase fuel efficiency and maximize power are just part of the overall performance potential you'll experience with Edelbrock E-CNC 355 cylinder heads.Brand: Edelbrock
Manufacturer's Part Number: 79555
Part Type: Cylinder Heads
Product Line: Edelbrock E-CNC 355 Cylinder Heads
HP Direct Part Number: EDL-79555
UPC: 085347795550
Combustion Chamber Volume (cc): 118
Intake Runner Volume (cc): 344cc/352cc
Exhaust Runner Volume (cc): 142cc
Cylinder Head Style: Assembled
Cylinder Head Material: Cast aluminum
Camshaft Style: Hydraulic roller
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.300 in.
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: Yes
CNC-Machined Exhaust Runner: Yes
Intake Port Location: Standard
Exhaust Port Shape: Rectangular
Exhaust Port Location: Standard
Spark Plug Style: Straight
Intake Valves Included: Yes
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in.): 1.880 in.
Valve Springs Included: Yes
Maximum Valve Lift (in.): 0.775 in.
Outside Diameter of Outer Spring (in.): 1.540 in.
Damper Spring Included: Yes
Number of Springs Per Valve: Dual
Retainers Included: Yes
Retainer Material: Steel
Locks Included: Yes
Lock Style: 7 degree
Valve Stem Seals Included: Yes
Valve Stem Seal Style: Positive stop
Rocker Arm Studs Included: Yes
Rocker Arm Nut Thread Size: 7/16 in.-20
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: Yes
Guideplate Pushrod Size: 3/8 in.
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 24.5/4.4
Exhaust Valve Angle: 15.5/4.2
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold individually.
