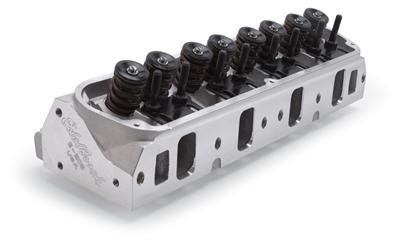

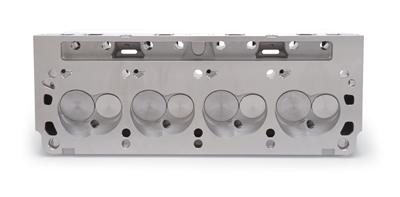

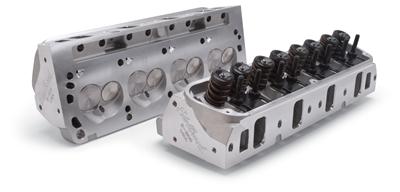

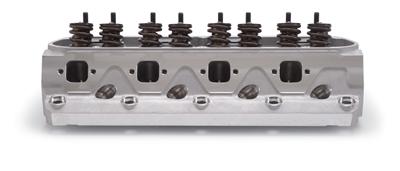

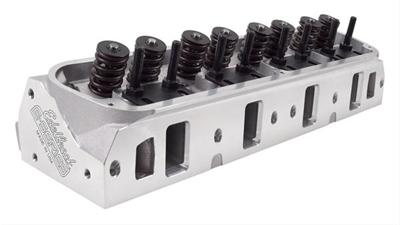

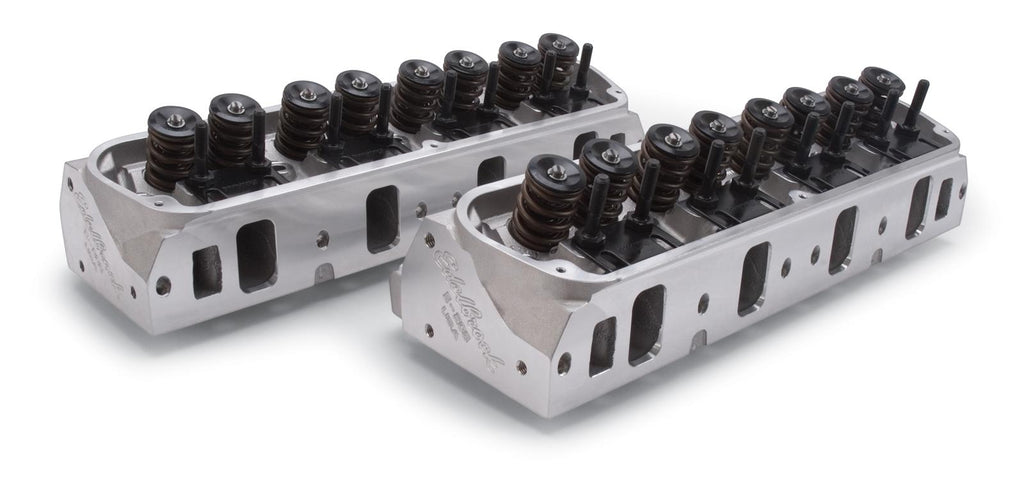

Edelbrock E-205 Cylinder Heads 5027

You're taking a step up in performance with Edelbrock E-205 small block Ford cylinder heads. Featuring larger runners for increased airflow, revised exhaust ports, and larger diameter springs for higher lift camshafts, Edelbrock E-205 cylinder heads are ideal for spec series racers and larger displacement engines. They are able to support the power that you need to compete--more than 500 naturally aspirated horsepower and even more in forced induction applications! Get race-level performance with OEM compatibility when you bolt on a pair of Edelbrock E-205 cylinder heads.Brand: Edelbrock
Manufacturer's Part Number: 5027
Part Type: Cylinder Heads
Product Line: Edelbrock E-205 Cylinder Heads
HP Direct Part Number: EDL-5027
UPC: 085347050277
Combustion Chamber Volume (cc): 60
Intake Runner Volume (cc): 205cc
Exhaust Runner Volume (cc): 62cc
Cylinder Head Style: Assembled
Cylinder Head Material: Cast aluminum
Camshaft Style: Hydraulic roller
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.080 in.
CNC-Machined Combustion Chamber: No
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: Square
Exhaust Port Location: Standard
Intake Valves Included: Yes
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in.): 1.600 in.
Valve Springs Included: Yes
Maximum Valve Lift (in.): 0.650 in.
Outside Diameter of Outer Spring (in.): 1.460 in.
Damper Spring Included: Yes
Number of Springs Per Valve: Dual
Retainers Included: Yes
Retainer Material: Steel
Locks Included: Yes
Lock Style: 7 degree
Valve Stem Seals Included: Yes
Valve Stem Seal Style: Positive stop
Rocker Arm Studs Included: Yes
Rocker Arm Nut Thread Size: 3/8 in.-24
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: Yes
Guideplate Pushrod Size: 5/16 in.
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 20
Exhaust Valve Angle: 20
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Powdered metal
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold as a pair.
Notes: Hardened pushrods required, use Edelbrock EDL-9632 (flat tappet only) for 302 applications. Will not accept rail rockers. 289-302 V8's require head bolt bushings EDL-9680 and either head bolt kit EDL-8552 (7/16") or stock head bolts. Bare heads will have valve guides and seats installed, but will require final sizing & a valve job to match the valves you will be using.
