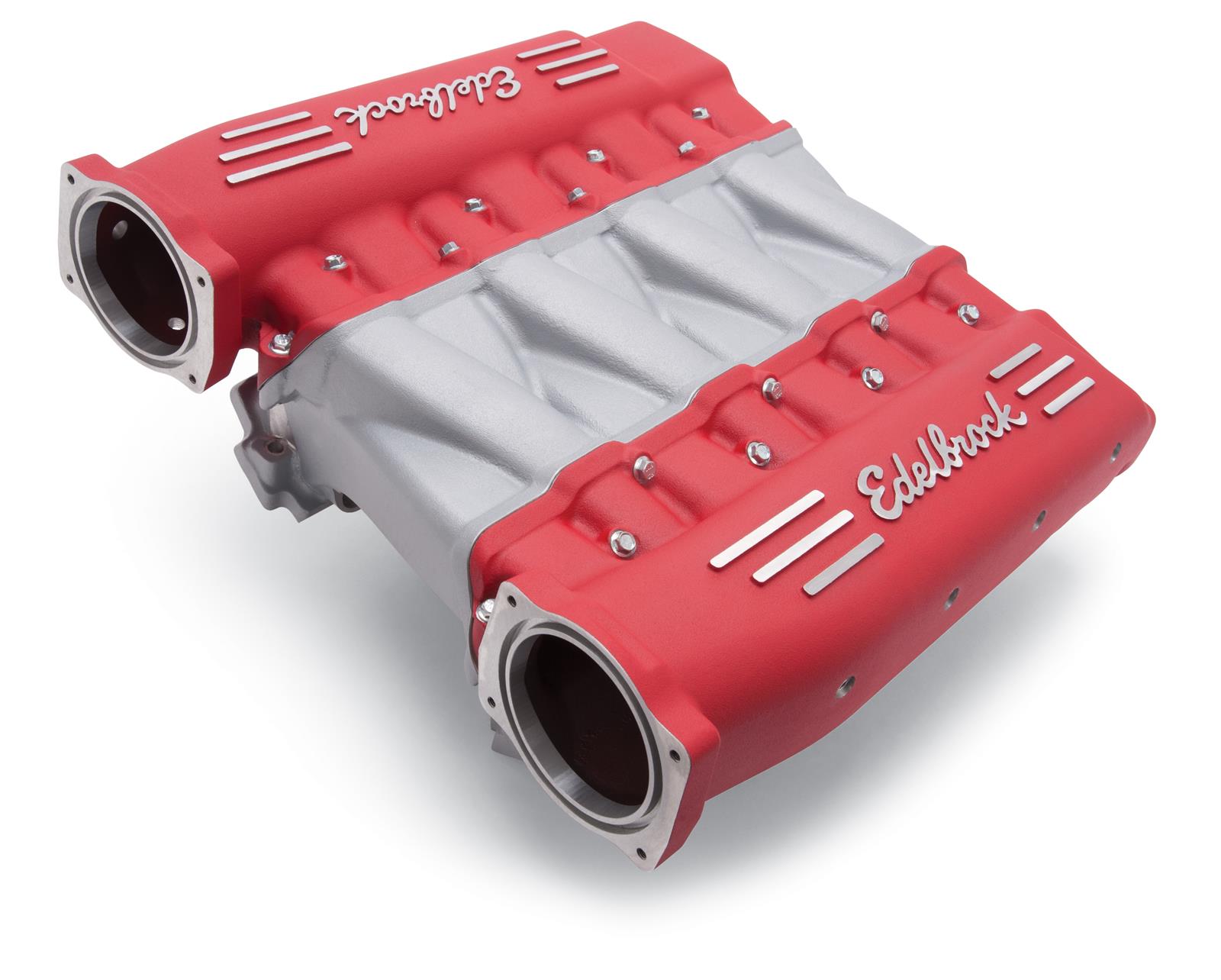

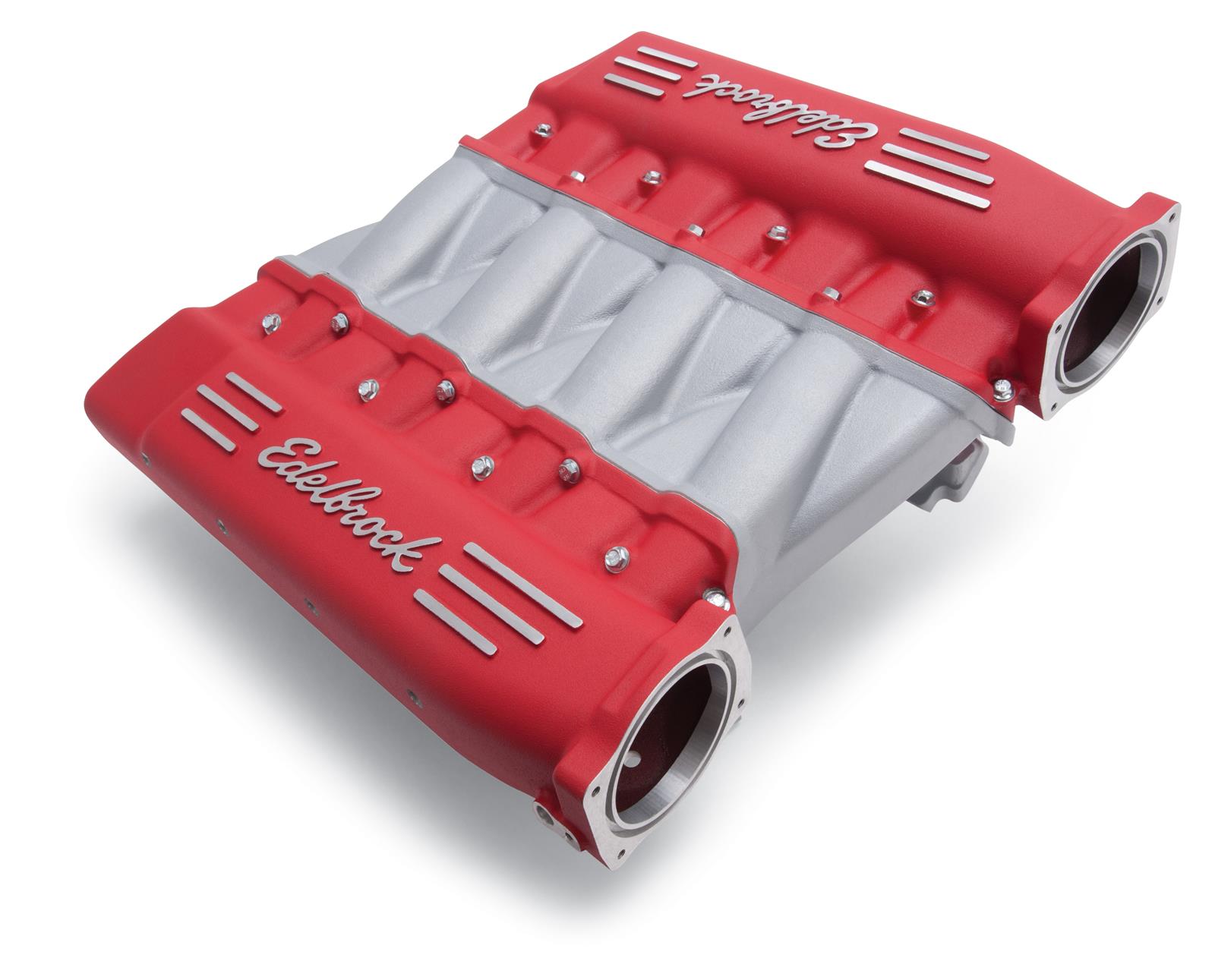

Edelbrock Cross-Ram LS3 Intake Manifolds 7141

Edelbrock Cross-Ram LS3 intake manifolds are ideal for anyone looking to combine great looks and outstanding performance between 1,500 - 7,000 rpm. The unique dual-plenum design features 13" long runners with flanges that will accept two, 90mm GM LS3 throttle bodies. The unique cross-ram dual-plenum design is ideal for twin turbo applications. When matched with high flowing air filters and inlet tubes, the dual-plenum system gives neck-snapping performance with plenty of options for engine builders and tuners. The manifolds are available in multiple finishes for that custom look.Brand: Edelbrock
Manufacturer's Part Number: 7141
Part Type: Intake Manifolds, Fuel Injected
Product Line: Edelbrock Cross-Ram LS3 Intake Manifolds
HP Direct Part Number: EDL-7141
UPC: 085347071418
Cylinder Head Configuration: Rectangular Port LS3/L76/L92/L99
Fuel Injection Style: Multi-port
Basic Operating RPM Range: 1,500-7,000
Intake Section Included: Complete
Throttle Body Bore Size: 90mm
Engine Block Deck Height: Standard deck
Injectors Included: No
Multi-Port Fuel Rails Included: No
EGR: No
Aftermarket Fuel Rail Required: No
Throttle Body Included: No
Supplemental Bosses Cast-In: No
Supplemental Bosses Machined: No
Runners Included: Yes
Runners Removable: Yes
Plenum Material: Aluminum
Plenum Finish: Red powdercoated
Base Material: Aluminum
Base Color: Natural
Remanufactured: No
Quantity: Sold individually.
Notes: Edelbrock fuel rail kit 3654 is recommended as well as GM PN19256623 LS3/LS76 style individual port o-ring seals are used on the intake. GM LS 90mm throttle bodies are recommended.
