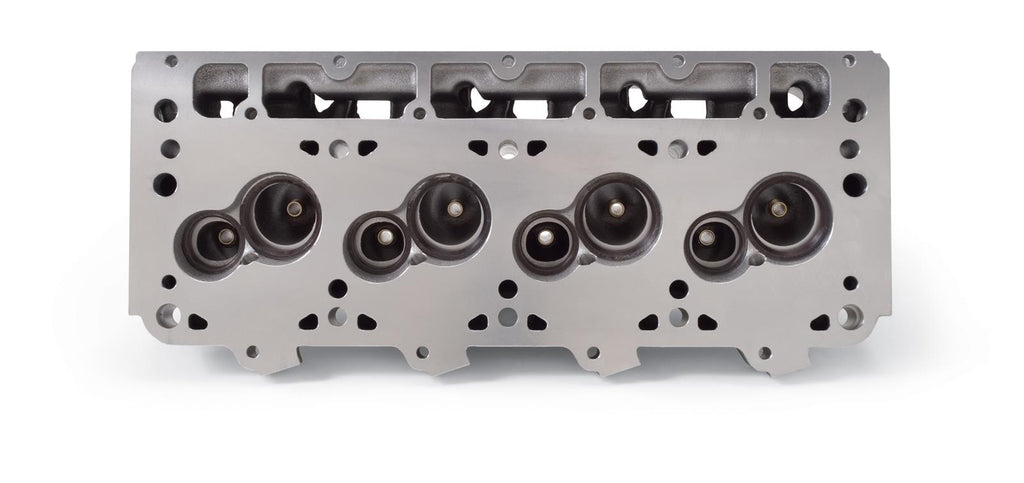

Edelbrock Big Victor 3 Pro-Port 11 Degree HIP Cylinder Heads 613669

Edelbrock Big Victor 3 Pro-Port 11 degree cylinder heads are designed for high rpm, large displacement big block Chevrolet race engines. These heads are a unique departure from current spread port designs using instead the familiar Pro Stock style symmetrical port layout. These heads are semi-finished in
that all machining on the valve axes has been omitted to allow custom designs with unique valve angles and positions. They are supplied with no combustion chamber and small ports to permit various port and chamber finishing options. All are also treated to a Hot Isostatic Pressing (HIP) process prior to heat treat and final machining. This process greatly improves metal density and tensile strength thus significantly extending their useable life.Brand: Edelbrock
Manufacturer's Part Number: 613669
Part Type: Cylinder Heads
Product Line: Edelbrock Big Victor 3 Pro-Port 11 Degree HIP Cylinder Heads
HP Direct Part Number: EDL-613669
UPC: 085347996605
Cylinder Head Style: Bare
Cylinder Head Material: Cast aluminum
Intake Valve Diameter (in.): 2.600 in.
CNC-Machined Combustion Chamber: No
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Intake Valves Included: No
Exhaust Valves Included: No
Exhaust Valve Diameter (in.): 1.940 in.
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: No
Intake Valve Angle: 11
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: No
Valve Seat Machine Style: Un-machined seat
Valve Seat Material: Copper bronze alloy
Cylinder Head Color: Natural
Steam Holes Drilled: No
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold individually.
Notes: These heads have an extended exhaust flange and will require Professional CNC machining, Valve guides are included but not installed. intended for high output, large cubic inch, 4.84” bore spacing (stock) big block Chevrolet racing engines.
