Eagle Street and Strip Rotating Assemblies B16323MS040

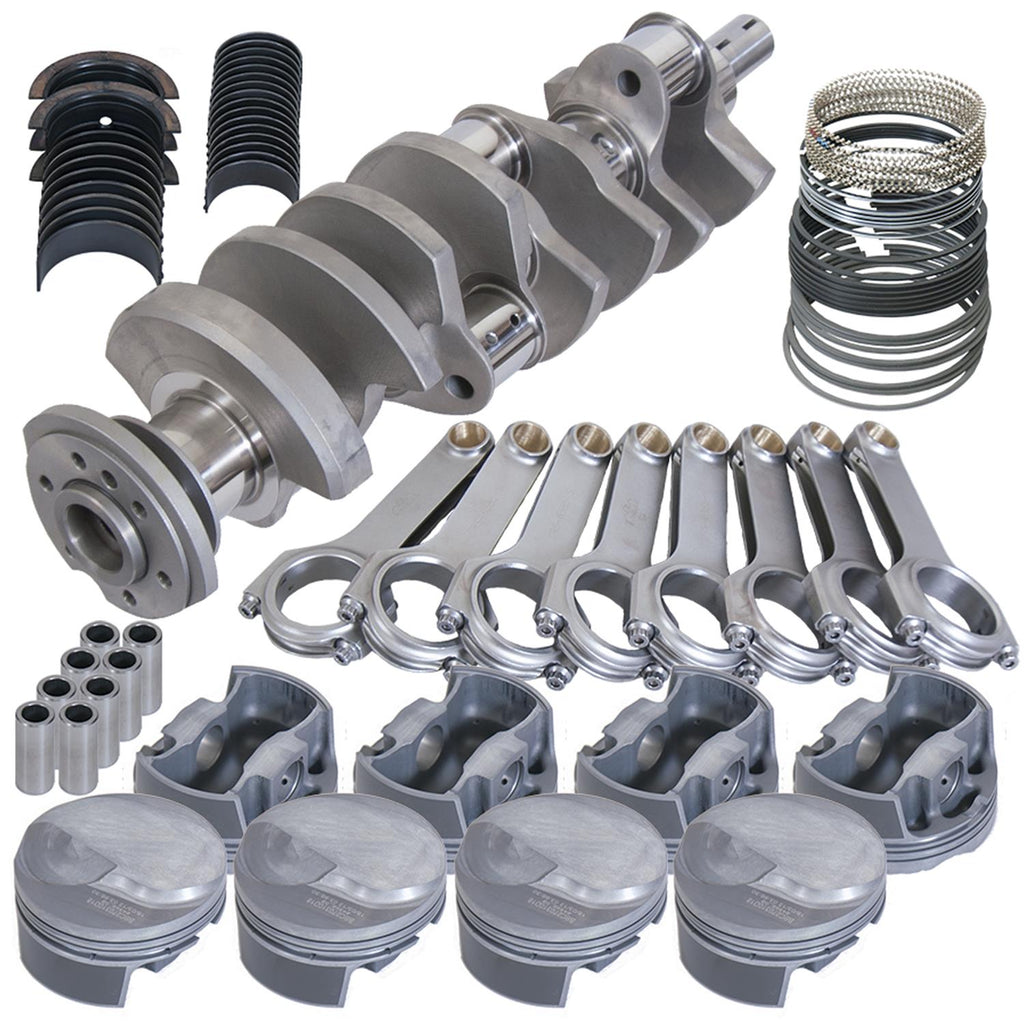

Eagle Street and Strip rotating assemblies consist of name-brand quality components for a wide range of engines at an affordable price. These kits feature a crankshaft, pistons, piston rings, rod and main bearings, and connecting rods. Based on your application, balanced assemblies are also available. Order the model designed for fitment on your year/make vehicle and engine application.Brand: Eagle Specialty Products
Manufacturer's Part Number: B16323MS040
Part Type: Engine Rotating Kits
Product Line: Eagle Street and Strip Rotating Assemblies
HP Direct Part Number: ESP-B16323MS040
UPC: 00793348543536
Actual Engine Displacement: 5.7L/349
Rear Main Seal Style: 1-piece, 2-piece
Bore (in.): 4.040 in.
Bore (mm): 102.616mm
Engine Stroke (in.): 3.400 in.
Balanced: Yes
Piston Material: Forged aluminum
Piston Style: Flat top, with four valve reliefs
Harmonic Balancer Included: Yes
Flexplate Included: No
Flywheel Included: Yes
Pistons Included: Yes
Piston Head Volume (cc): +11.00cc
Wrist Pin Style: Floating
Piston Rings Included: Yes
Piston Ring Facing Material: Plasmamoly
Piston and Ring Oversize (in.): 0.040 in.
Crankshaft Included: Yes
Crankshaft Material: Cast steel
Engine Balance: External, 28 oz. imbalance
Connecting Rods Included: Yes
Connecting Rod Length Center to Center (in.): 5.400 in.
Connecting Rod Material: Forged 5140 steel
Connecting Rod Beam Style: I-beam
Rod Bearings Included: Yes
Rod Bearing Undersize (in.): Stock
Rod Bearing Undersize (mm): Stock
Main Bearings Included: Yes
Main Bearing Undersize (in.): Stock
Main Bearing Undersize (mm): Stock
Cam Bearings Included: No
Gaskets Included: No
Oil Pump Included: No
Camshaft Included: No
Lifters Included: No
Timing Chain and Gears Included: No
Plastigage Included: No
Assembly Lubricant Included: No
Quantity: Sold as a kit.
Notes: Minor clearancing of block at bottom of cylinders and pan rails required. Includes 157 tooth flywheel and harmonic balancer. Works with 1994-95 standard transmissions.
