Description
Brand: Eagle Specialty Products
Manufacturer's Part Number: B15504L03068-SD
Part Type: Engine Rotating Kits
Product Line: Eagle Street and Strip Rotating Assemblies
Automotive Fittings Part Number: ESP-SD0001
Actual Engine Displacement: 6.3L/383
Rear Main Seal Style: 1-piece
Bore (in.): 4.030 in.
Bore (mm): 102.362mm
Engine Stroke (in.): 3.750 in.
Balanced: Yes

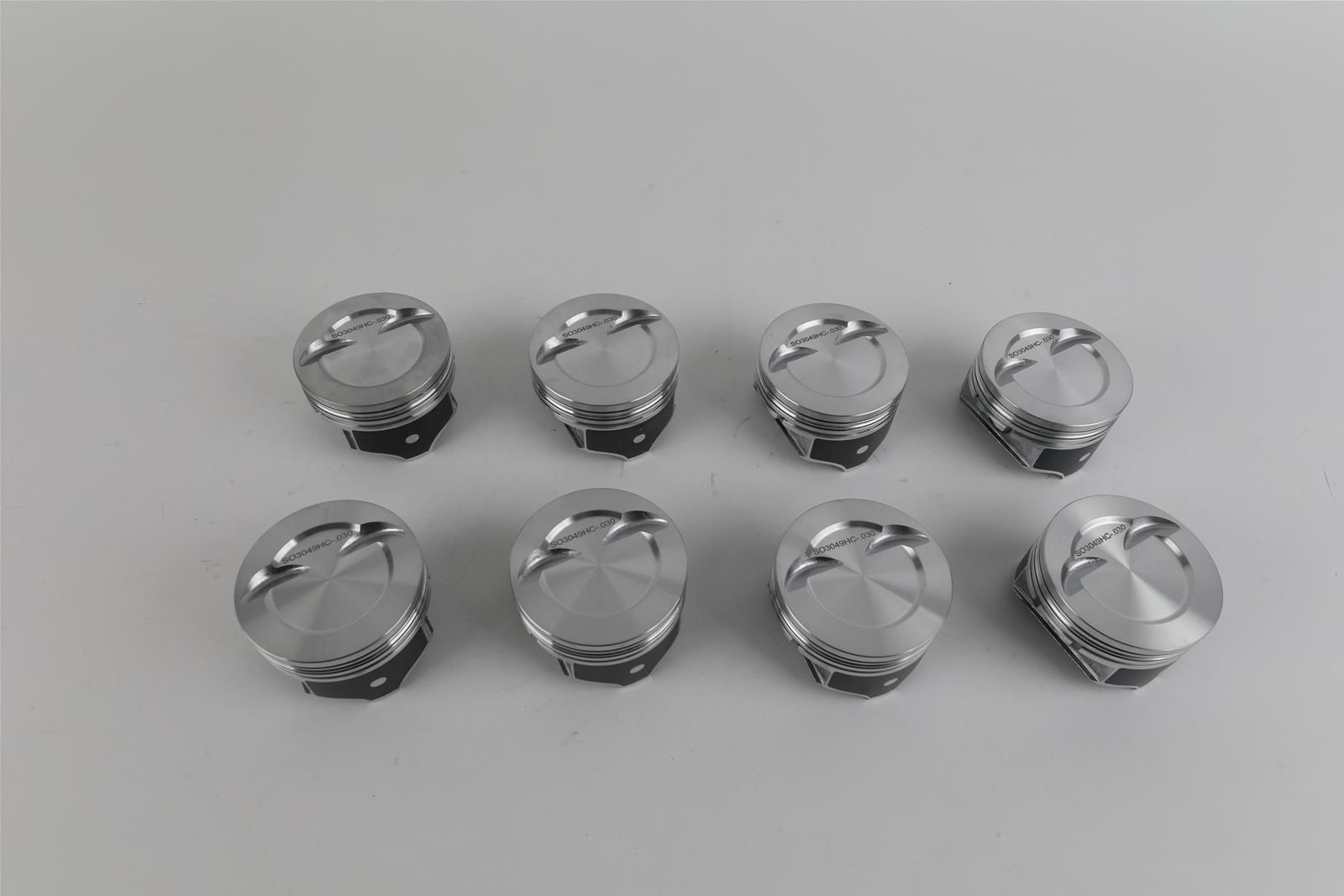

Piston Material: Hypereutectic aluminum
Piston Style: Dish, with a D-shaped cup
Harmonic Balancer Included: No
Flexplate Included: Yes
Flywheel Included: No
Pistons Included: Yes
Piston Head Volume (cc): +12.00cc

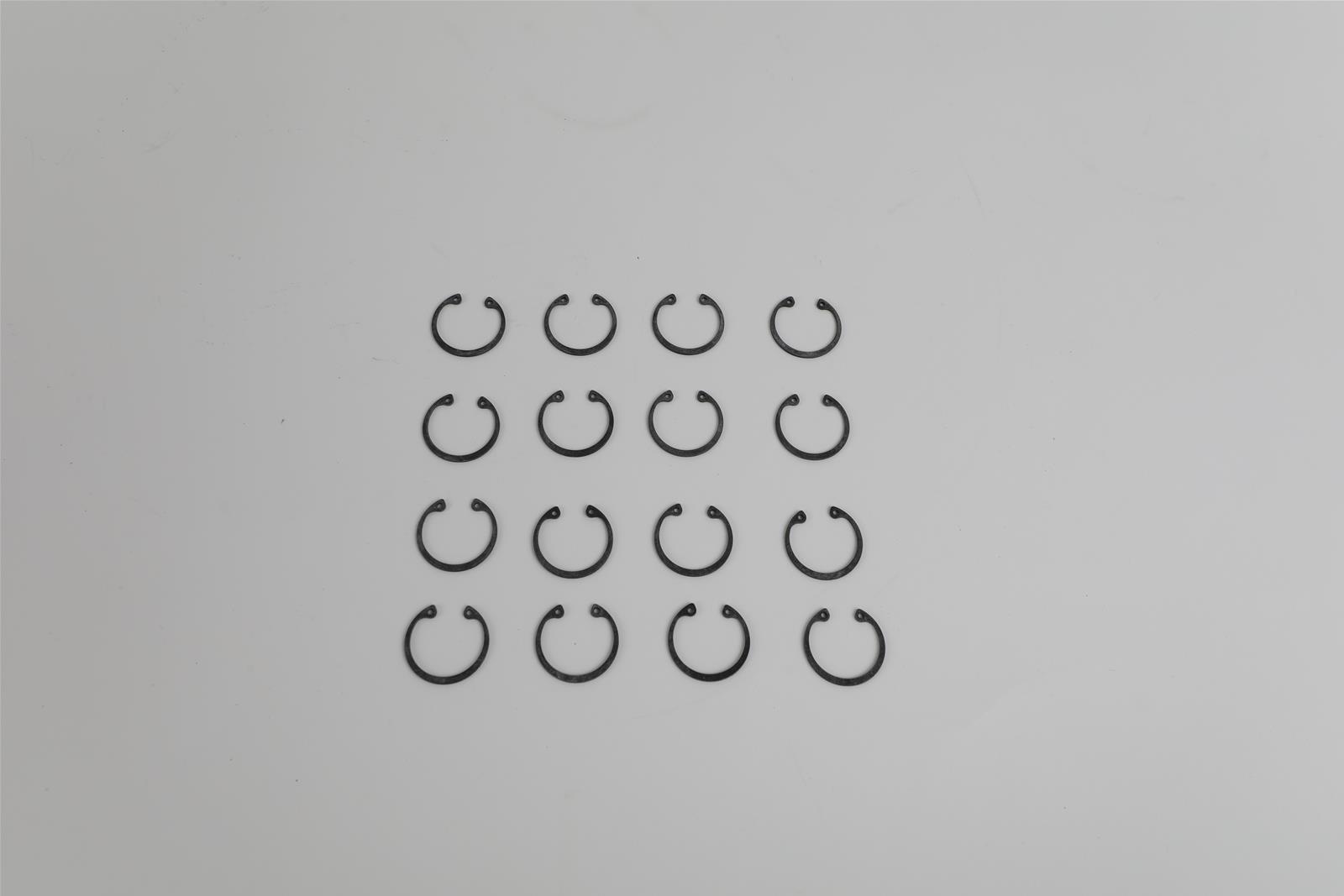

Wrist Pin Style: Floating

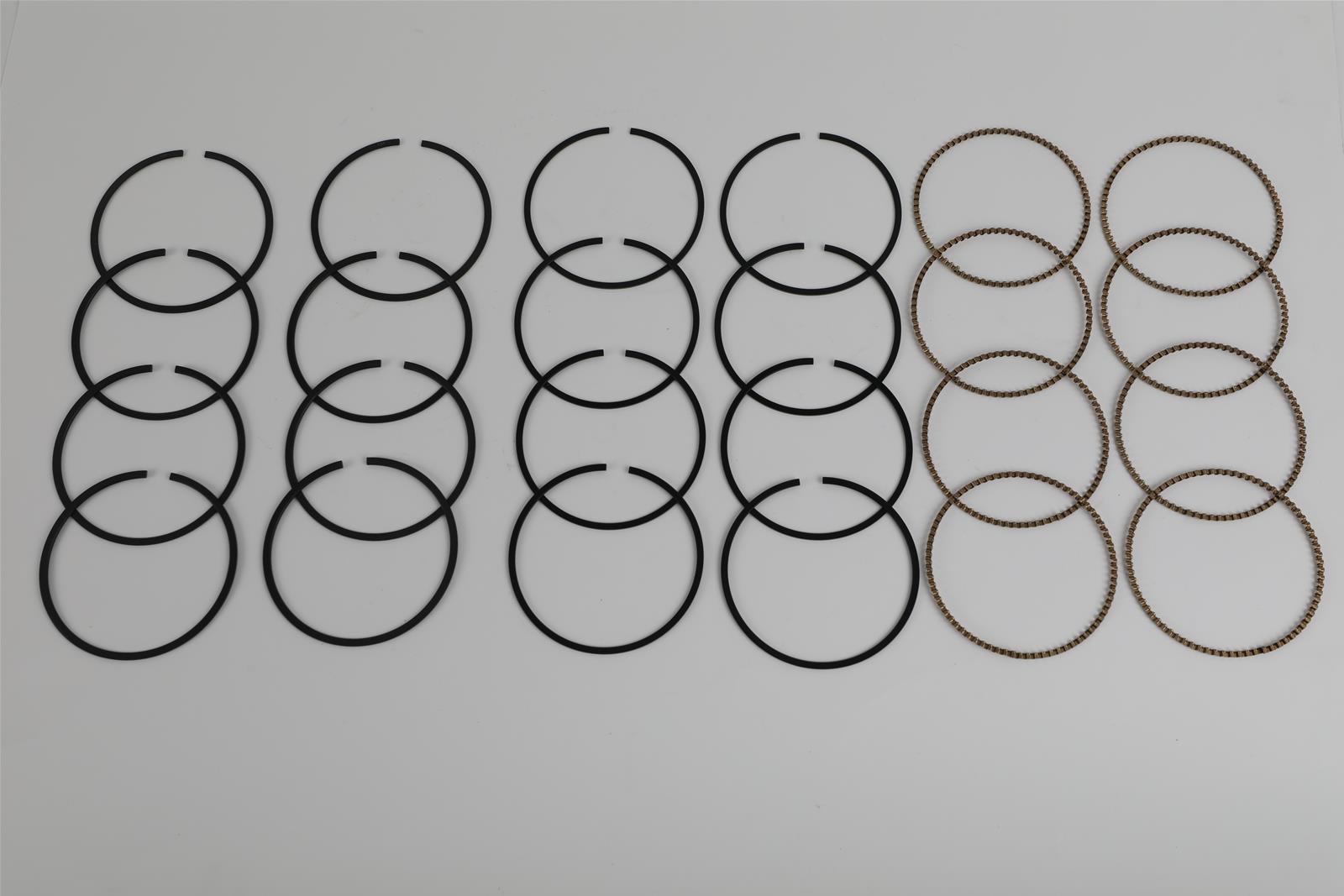

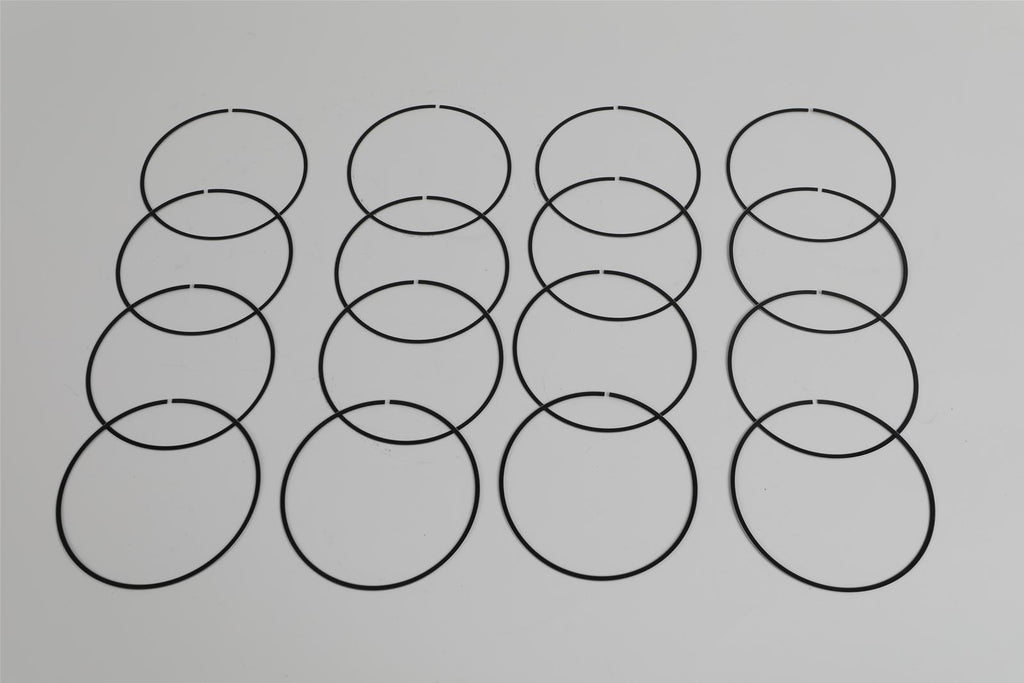

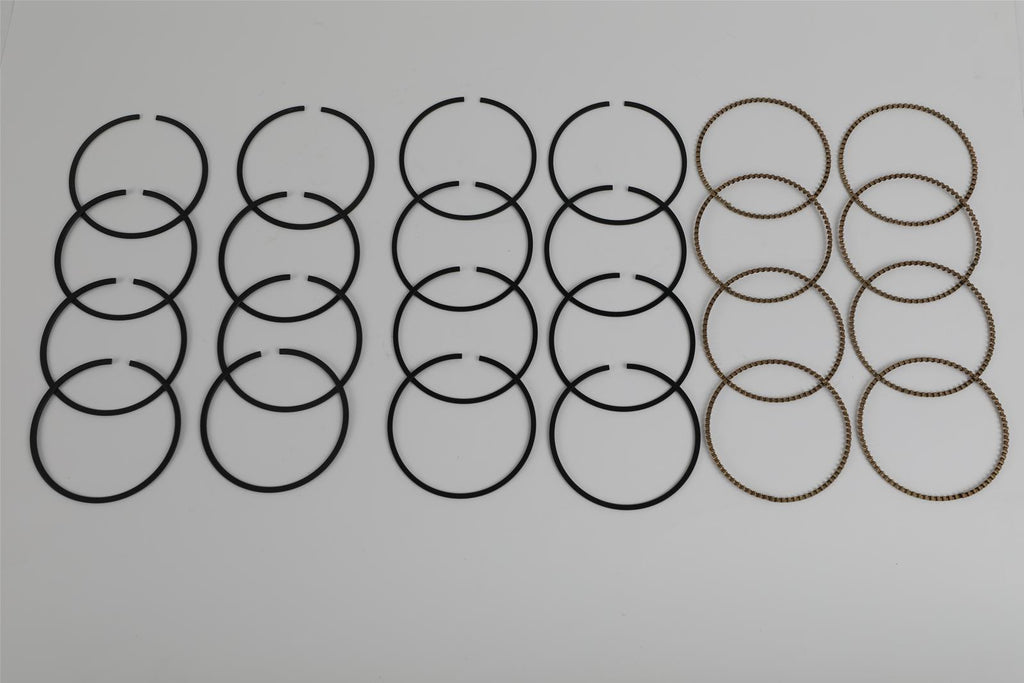

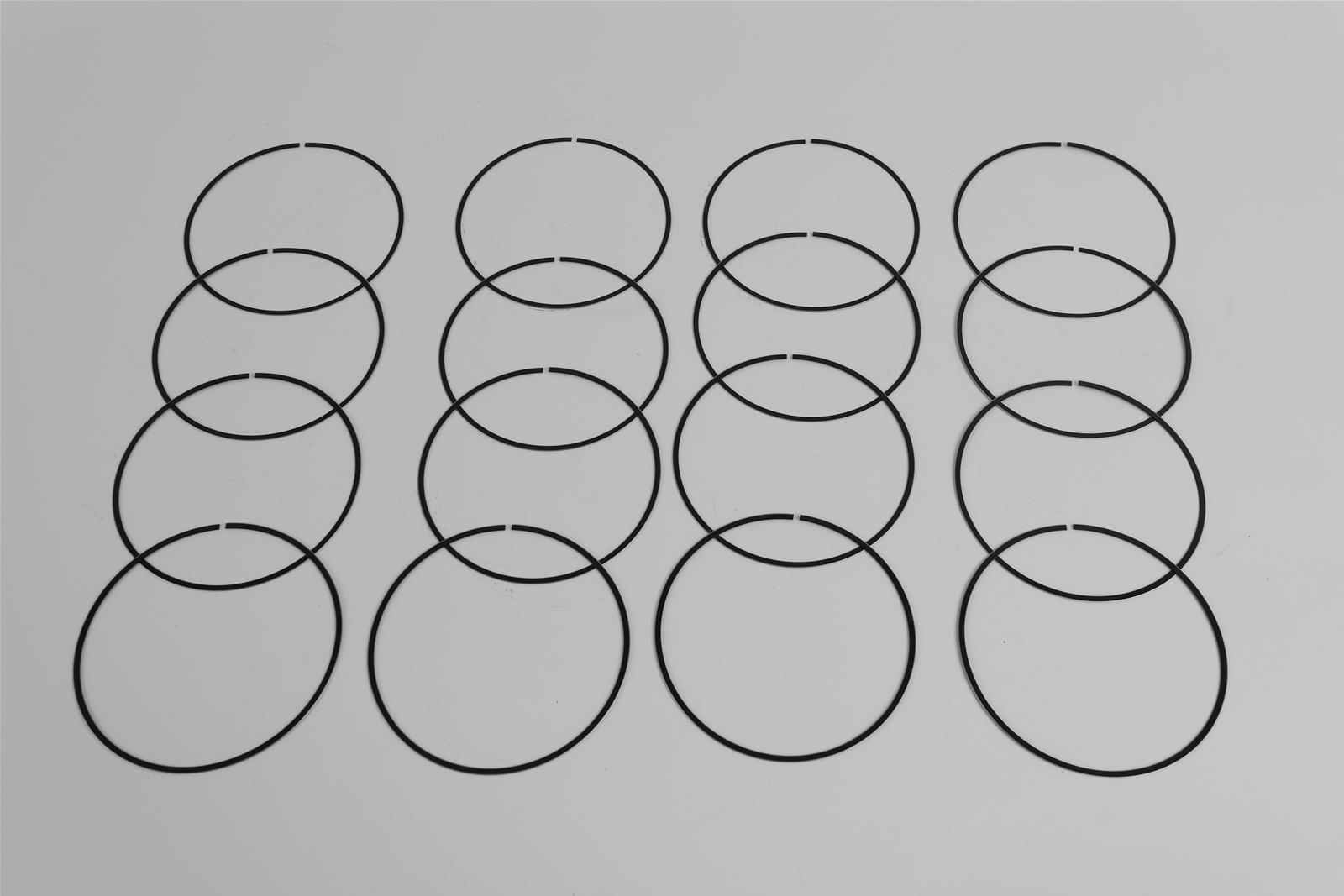

Piston Rings Included: Yes
Piston Ring Facing Material: Plasmamoly
Piston and Ring Oversize (in.): 0.030 in.

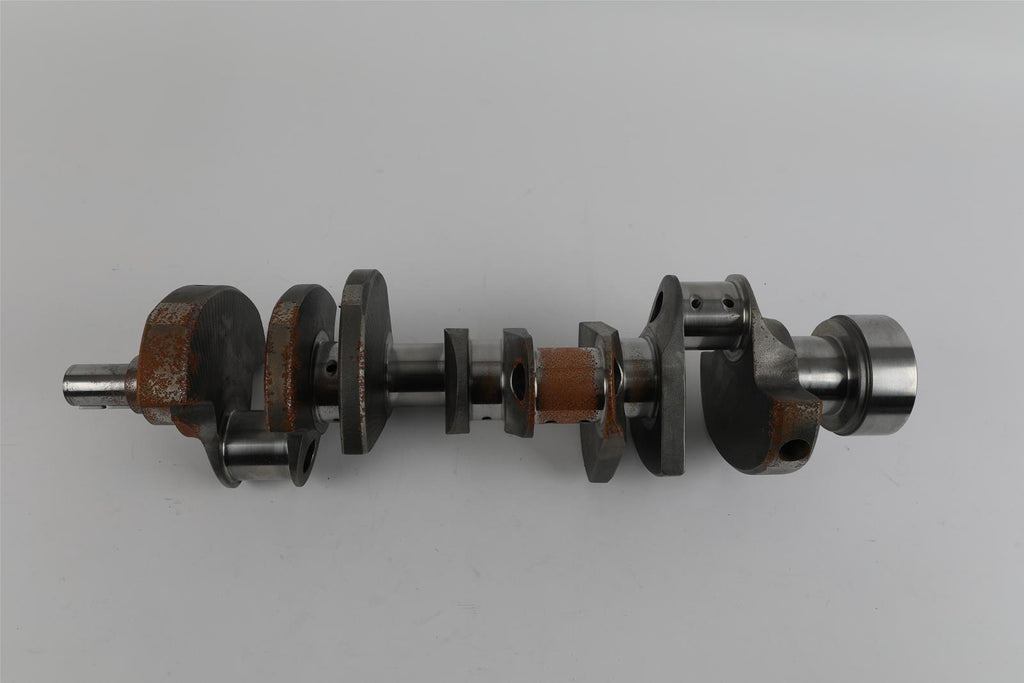

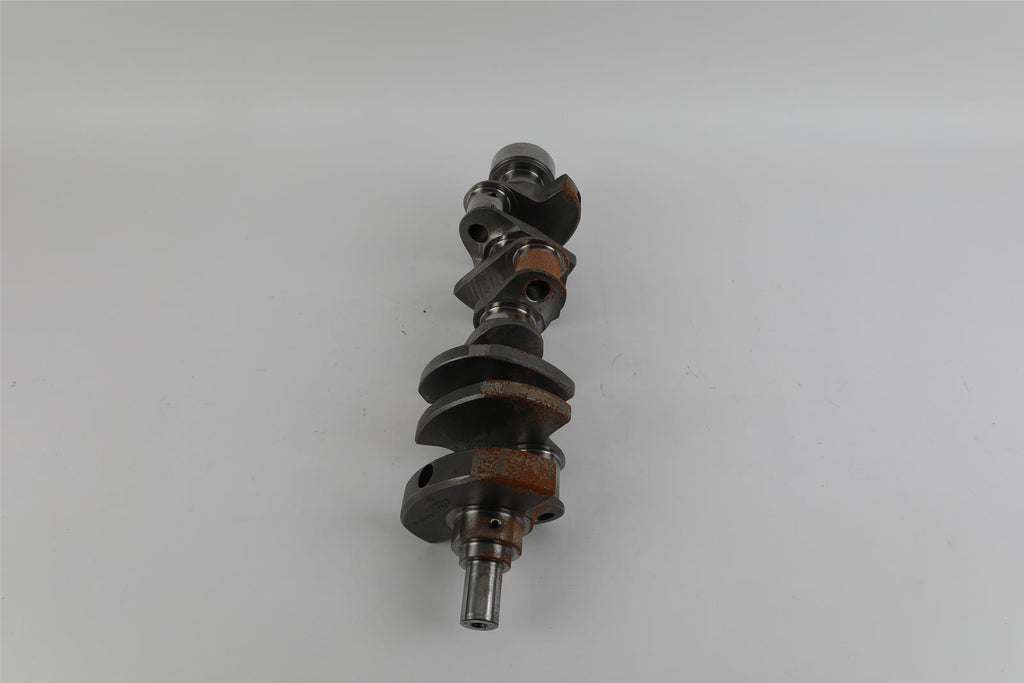

Crankshaft Included: Yes
Crankshaft Material: Cast steel
Engine Balance: Internal/External

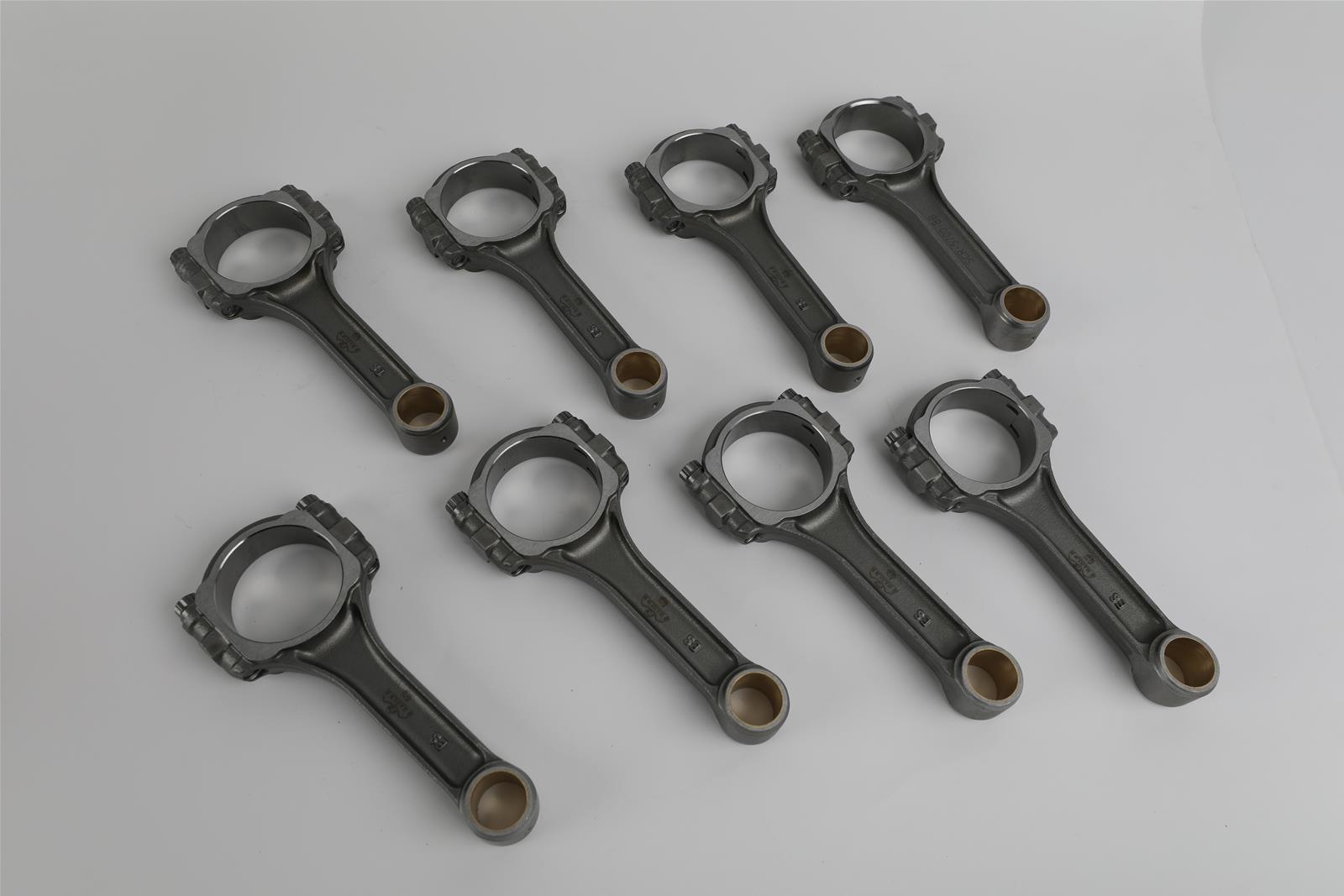

Connecting Rods Included: Yes
Connecting Rod Length Center to Center (in.): 5.700 in.
Connecting Rod Material: Forged 5140 steel
Connecting Rod Beam Style: I-beam

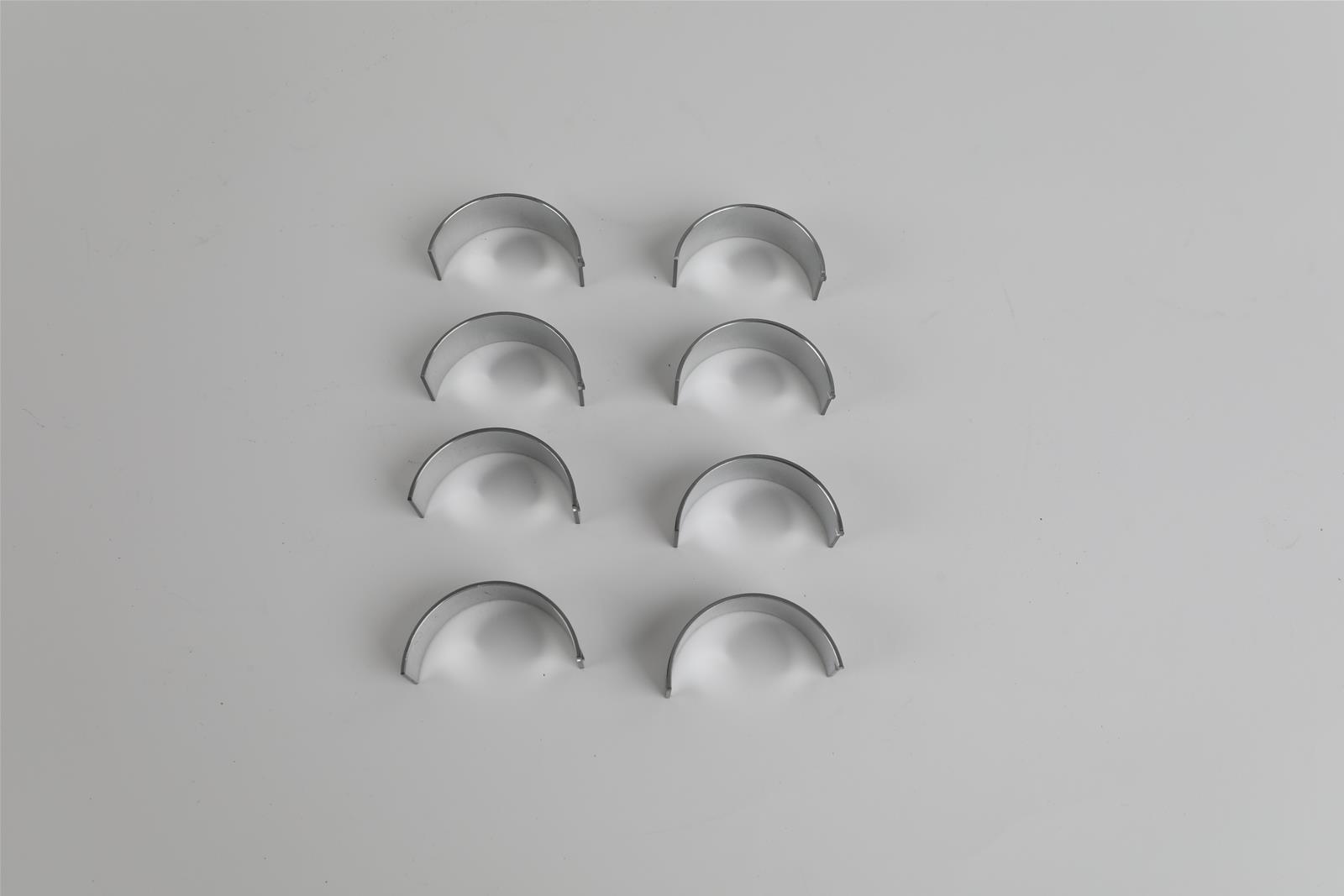

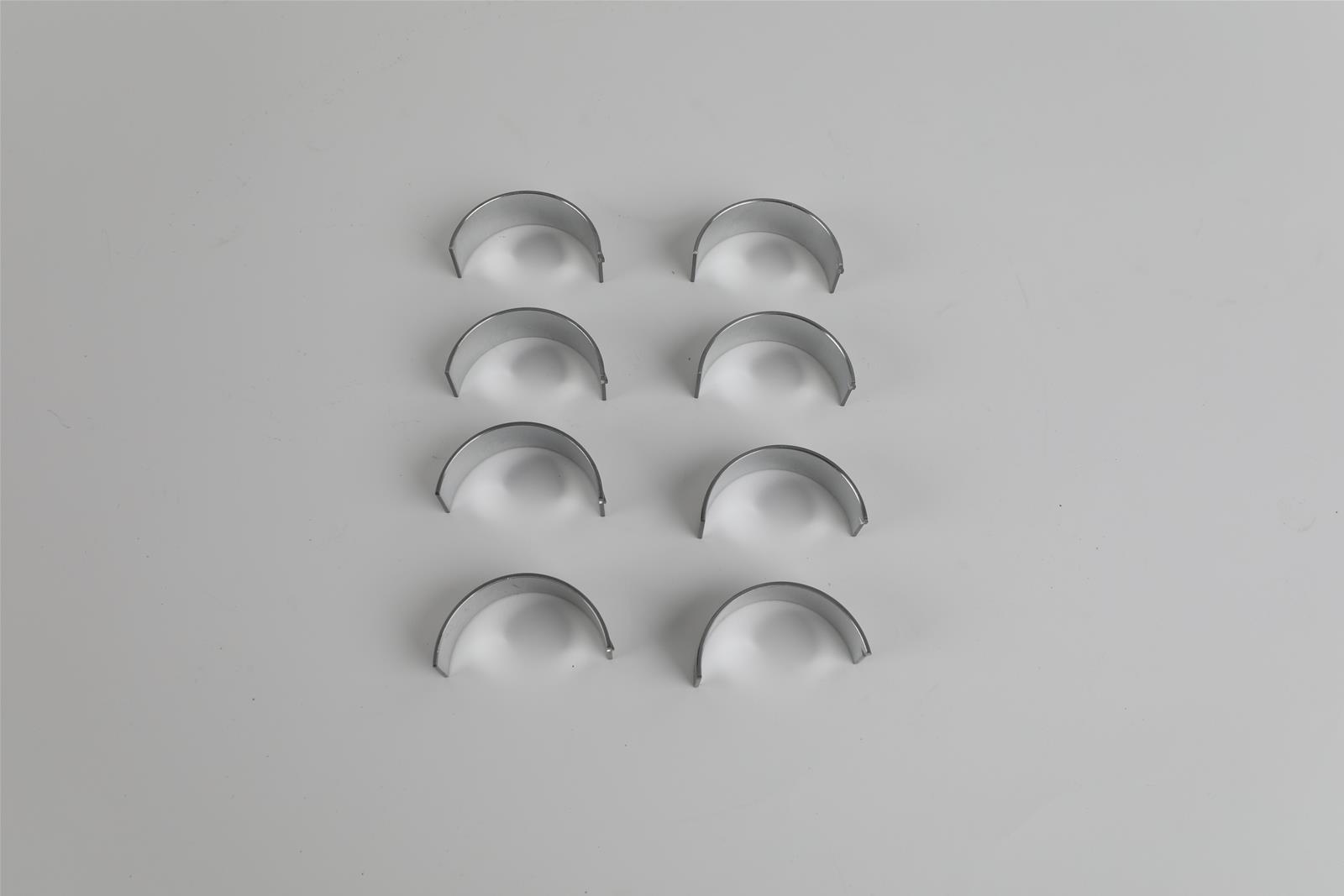

Rod Bearings Included: Yes
Rod Bearing Undersize (in.): Stock
Rod Bearing Undersize (mm): Stock

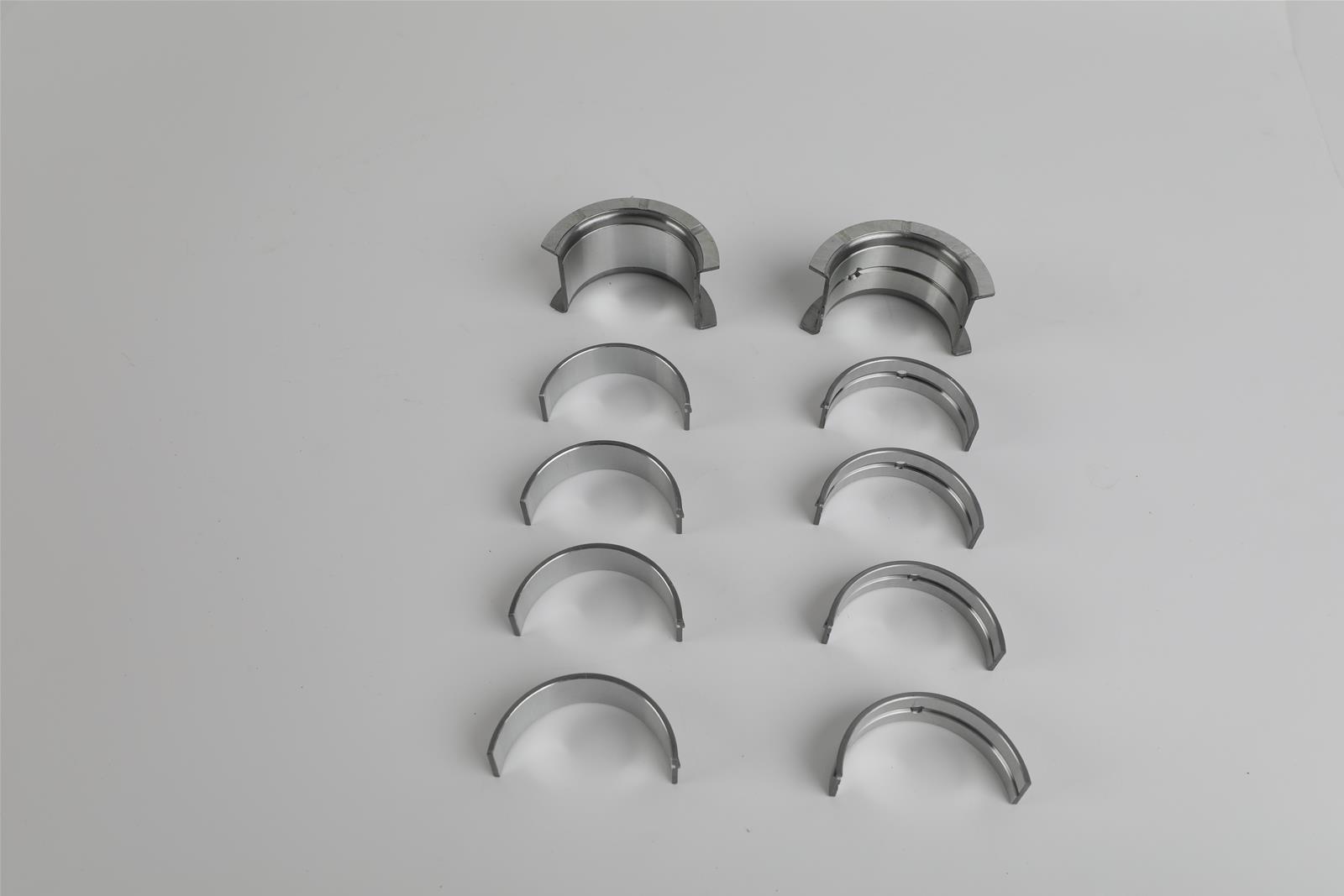

Main Bearings Included: Yes
Main Bearing Undersize (in.): Stock
Main Bearing Undersize (mm): Stock
Cam Bearings Included: No
Gaskets Included: No
Oil Pump Included: No
Camshaft Included: No
Lifters Included: No
Timing Chain and Gears Included: No
Plastigage Included: No
Assembly Lubricant Included: No
Quantity: Sold as a kit.

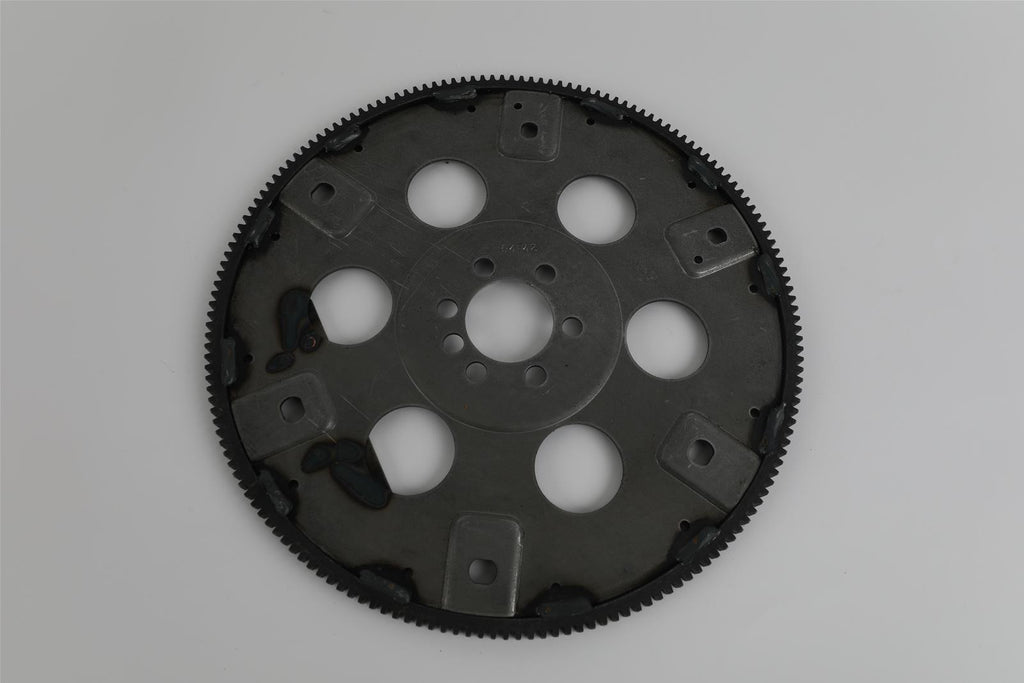

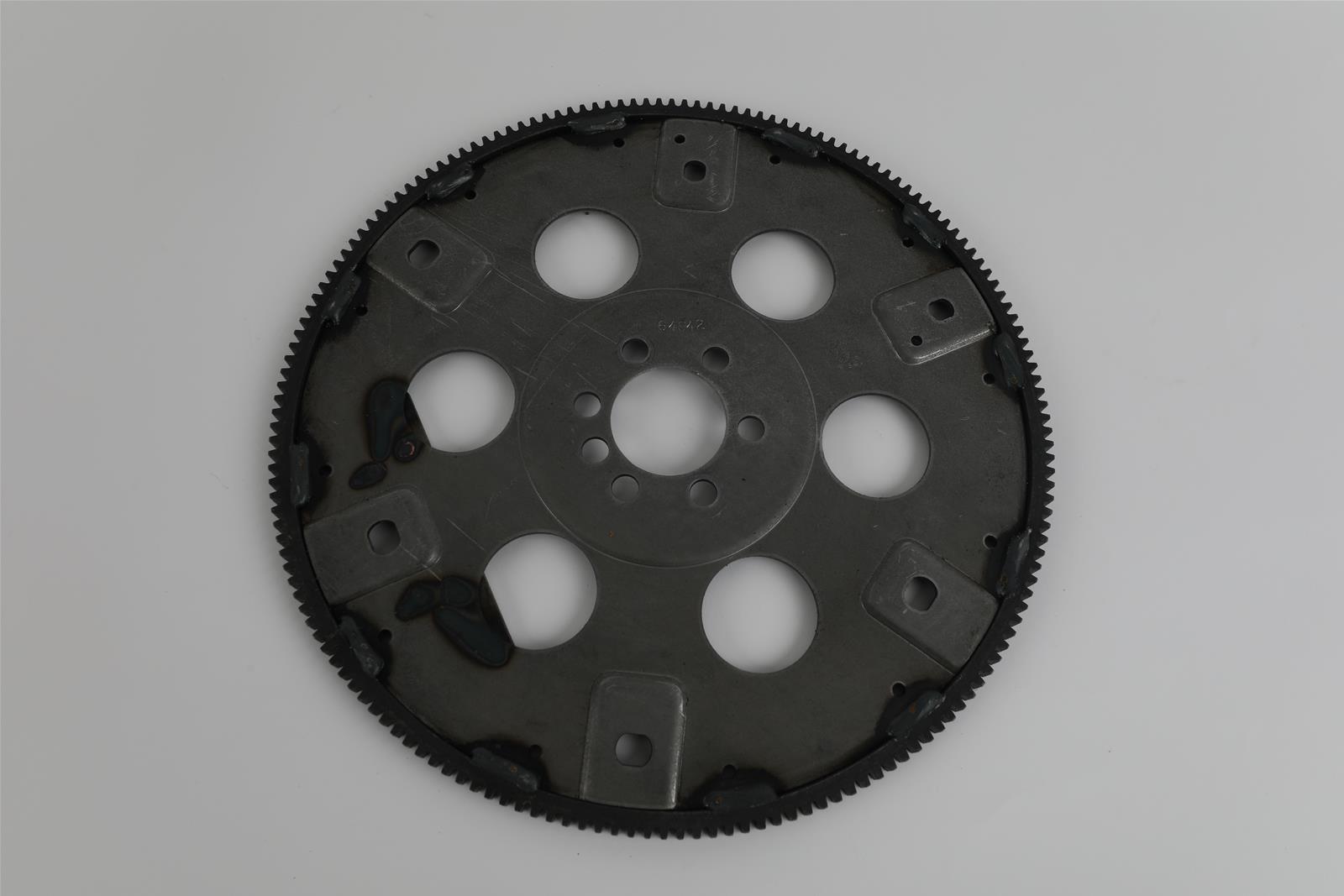

Notes: Kit included 168-tooth flexplate. Must use internal balance harmonic damper with the included weighted flexplate for proper balance.
Special Attention: This is a Scratch and Dent version of ESP-B15504L03068. Appearence is not as new, however still very good. Does not impact performance. Packaged has been opened, may be missing small items like bolts or instructions. Passed inspection.
Product Condition: Scratch and Dent
Description:

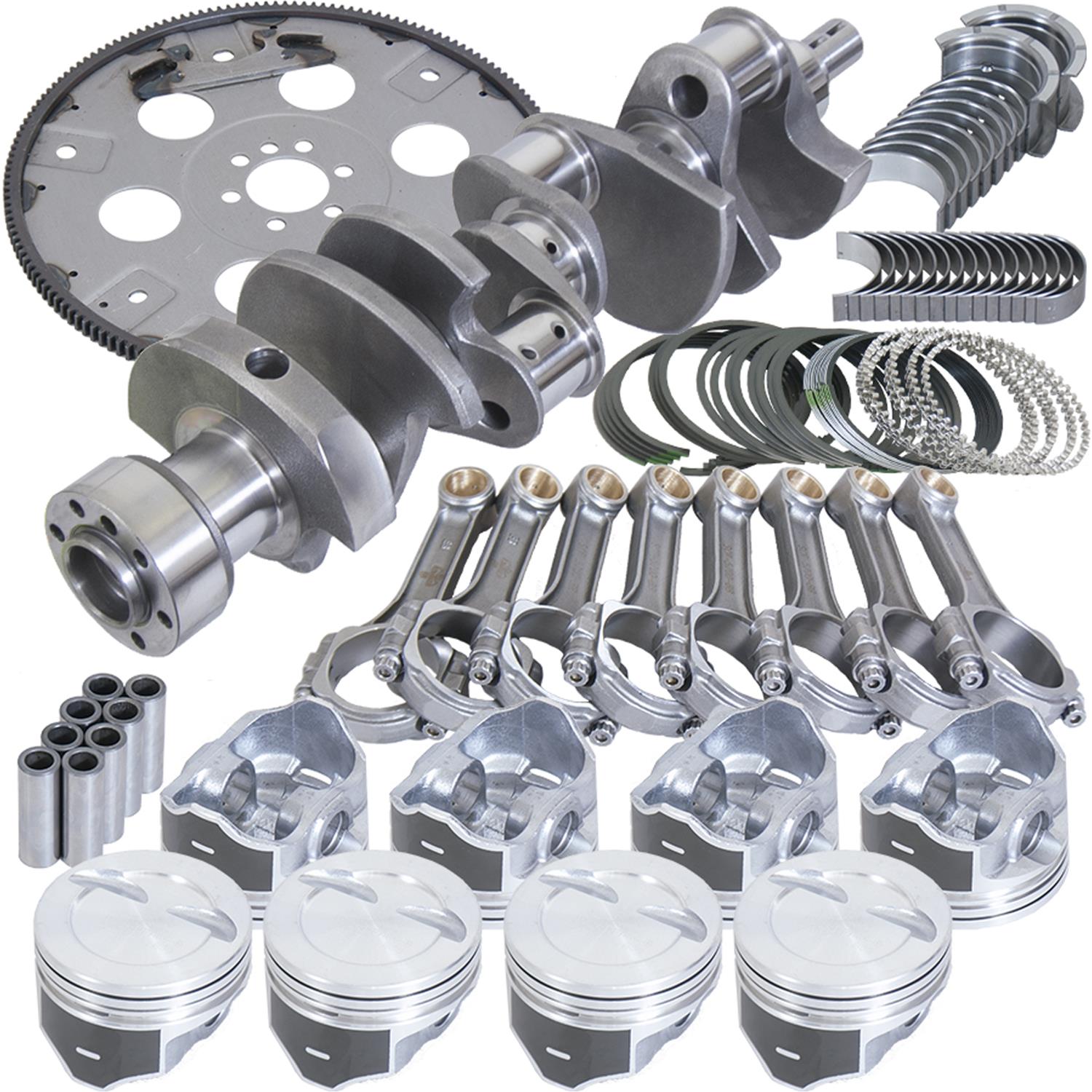

Eagle Street and Strip rotating assemblies consist of name-brand quality components for a wide range of engines at an affordable price. These kits feature a crankshaft, pistons, piston rings, rod and main bearings, and connecting rods. Based on your application, balanced assemblies are also available. Order the model designed for fitment on your year/make vehicle and engine application.
Manufacturer's Part Number: B15504L03068-SD
Part Type: Engine Rotating Kits
Product Line: Eagle Street and Strip Rotating Assemblies
Automotive Fittings Part Number: ESP-SD0001
Actual Engine Displacement: 6.3L/383
Rear Main Seal Style: 1-piece
Bore (in.): 4.030 in.
Bore (mm): 102.362mm
Engine Stroke (in.): 3.750 in.
Balanced: Yes
Piston Material: Hypereutectic aluminum
Piston Style: Dish, with a D-shaped cup
Harmonic Balancer Included: No
Flexplate Included: Yes
Flywheel Included: No
Pistons Included: Yes
Piston Head Volume (cc): +12.00cc
Wrist Pin Style: Floating
Piston Rings Included: Yes
Piston Ring Facing Material: Plasmamoly
Piston and Ring Oversize (in.): 0.030 in.
Crankshaft Included: Yes
Crankshaft Material: Cast steel
Engine Balance: Internal/External
Connecting Rods Included: Yes
Connecting Rod Length Center to Center (in.): 5.700 in.
Connecting Rod Material: Forged 5140 steel
Connecting Rod Beam Style: I-beam
Rod Bearings Included: Yes
Rod Bearing Undersize (in.): Stock
Rod Bearing Undersize (mm): Stock
Main Bearings Included: Yes
Main Bearing Undersize (in.): Stock
Main Bearing Undersize (mm): Stock
Cam Bearings Included: No
Gaskets Included: No
Oil Pump Included: No
Camshaft Included: No
Lifters Included: No
Timing Chain and Gears Included: No
Plastigage Included: No
Assembly Lubricant Included: No
Quantity: Sold as a kit.
Notes: Kit included 168-tooth flexplate. Must use internal balance harmonic damper with the included weighted flexplate for proper balance.
Special Attention: This is a Scratch and Dent version of ESP-B15504L03068. Appearence is not as new, however still very good. Does not impact performance. Packaged has been opened, may be missing small items like bolts or instructions. Passed inspection.
Product Condition: Scratch and Dent
Description:
Eagle Street and Strip rotating assemblies consist of name-brand quality components for a wide range of engines at an affordable price. These kits feature a crankshaft, pistons, piston rings, rod and main bearings, and connecting rods. Based on your application, balanced assemblies are also available. Order the model designed for fitment on your year/make vehicle and engine application.
