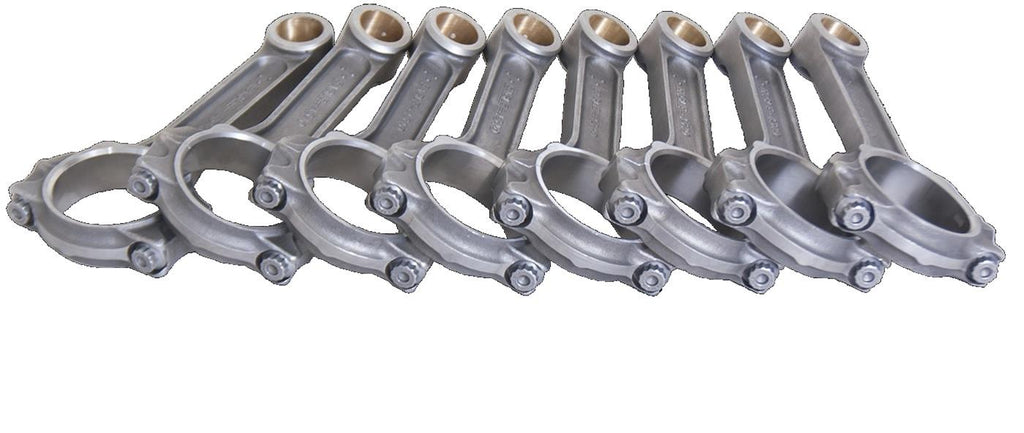

Eagle FSI I-Beam Connecting Rods FSI6000BST2000

Eagle FSI I-beam connecting rods are forged strong from 4340 steel. They are fitted with 7/16 in. ARP 8740 cap screw-style rod bolts, alignment sleeves for precise cap location, and silicone bronze pin bushings. Sizing is performed using the Sunnen Kross grinding system and is weight-matched to +/- 1 gram. Get your modified pump-gas racing engines cranking with FSI I-beam connecting rods from Eagle.Brand: Eagle Specialty Products
Manufacturer's Part Number: FSI6000BST2000
Part Type: Connecting Rods
Product Line: Eagle FSI I-Beam Connecting Rods
HP Direct Part Number: ESP-6000BST2000
UPC: 793348067889
Connecting Rod Length Center to Center (in.): 6.000 in.
Connecting Rod Beam Style: I-beam
Connecting Rod Material: Forged 4340 steel
Wrist Pin Style: Floating
Pin End Bore Diameter: 0.927 in.
Rod Journal Diameter (in.): 2.100
Big End Bore Diameter (in.): 2.2250
Quantity: Sold as a set of 8.
Cap Retention Style: Cap screw
Big End Width (in.): 0.940
Clearanced for Stroker: Yes
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 7/16 in.
Connecting Rod Bolt Material: ARP2000 alloy
Fastener Tensile Strength (psi): 200,000 psi
Connecting Rod Bolt Head Style: 12-point
Approximate Connecting Rod Weight (g): 600
Pin End Width (in.): 1.005 in.
Weight Matched Set: Yes
Remanufactured: No
Magnafluxed: Yes
Connecting Rod Color: Shot-peened
Notes: Clearanced to provide additional cam clearance when used with 3.875 in. or larger strokes.
