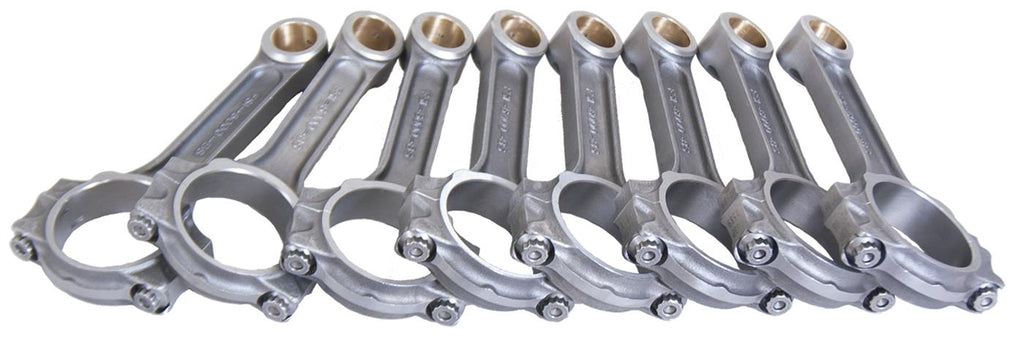

Eagle FSI I-Beam Connecting Rods FSI6000B-1

Eagle FSI I-beam connecting rods are forged strong from 4340 steel. They are fitted with 7/16 in. ARP 8740 cap screw-style rod bolts, alignment sleeves for precise cap location, and silicone bronze pin bushings. Sizing is performed using the Sunnen Kross grinding system and is weight-matched to +/- 1 gram. Get your modified pump-gas racing engines cranking with FSI I-beam connecting rods from Eagle.Brand: Eagle Specialty Products
Manufacturer's Part Number: FSI6000B-1
Part Type: Connecting Rods
Product Line: Eagle FSI I-Beam Connecting Rods
HP Direct Part Number: ESP-FSI6000B-1
UPC: 00793348003030
Connecting Rod Length Center to Center (in.): 6.000 in.
Connecting Rod Beam Style: I-beam
Connecting Rod Material: Forged 4340 steel
Wrist Pin Style: Floating
Pin End Bore Diameter: 0.927 in.
Rod Journal Diameter (in.): 2.100
Big End Bore Diameter (in.): 2.2250
Quantity: Sold individually.
Cap Retention Style: Cap screw
Big End Width (in.): 0.940
Clearanced for Stroker: No
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 7/16 in.
Connecting Rod Bolt Material: 8740 chromoly steel
Fastener Tensile Strength (psi): 180,000 psi
Connecting Rod Bolt Head Style: 12-point
Approximate Connecting Rod Weight (g): 605
Pin End Width (in.): 1.005 in.
Weight Matched Set: No
Remanufactured: No
Magnafluxed: No
Connecting Rod Color: Shot-peened
Notes: Torque to 68 ft-lbs with ARP moly lube only.
