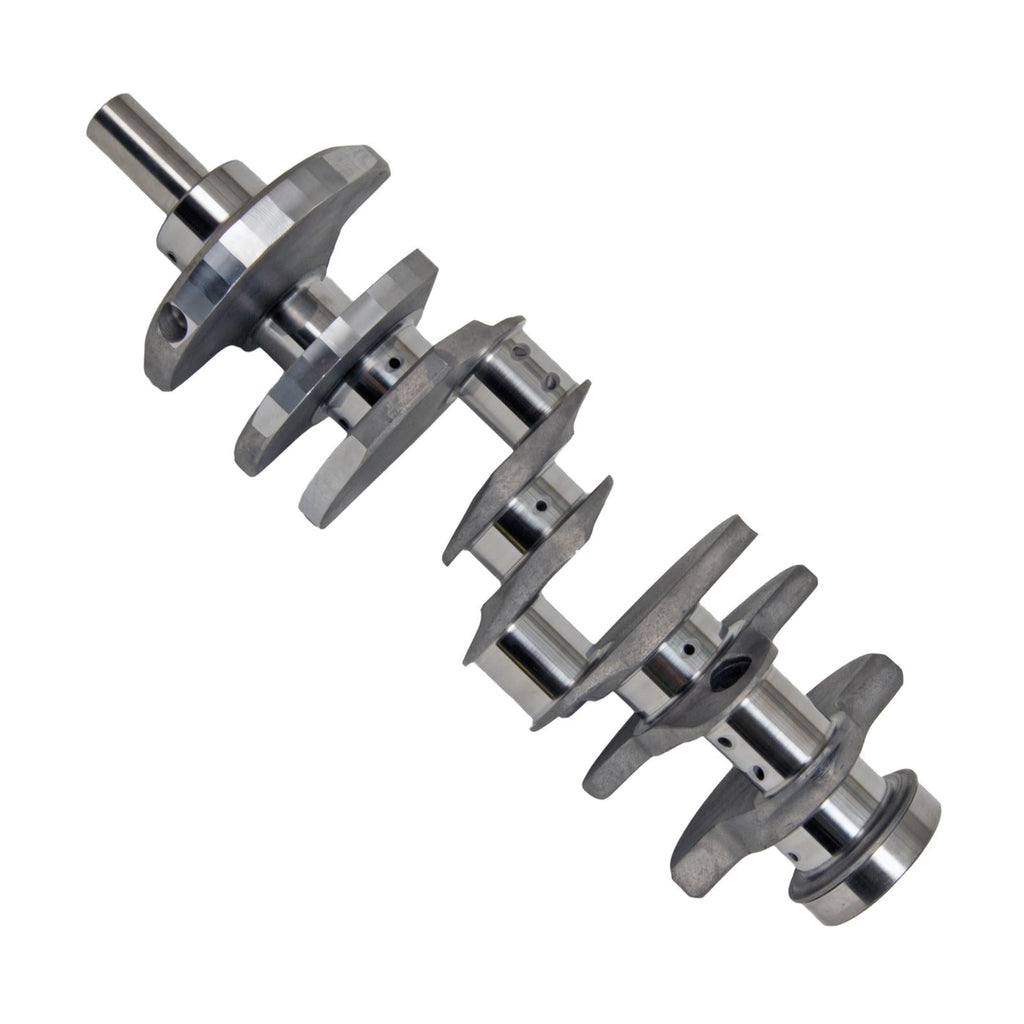

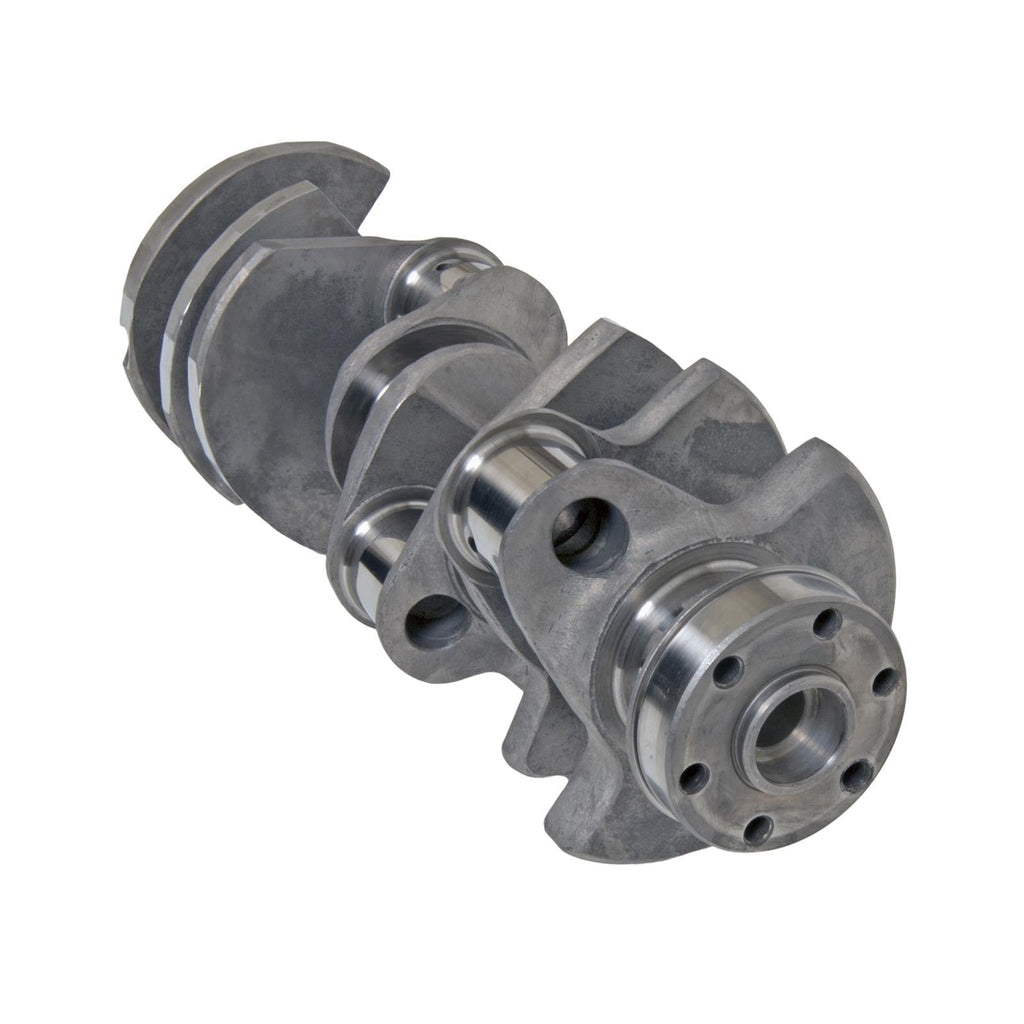

Eagle Forged 4340 Steel Crankshafts 435640006000

Eagle forged 4340 steel crankshafts are great for high performance applications. They feature non-twist forging, undergo a multi-stage heat-treatment process, and are stress-relieved and shot-peened. These cranks are X-rayed, magnafluxed, and sonic-tested, so you know you're getting a top-quality piece. Each crankshaft has chamfered oil holes for improved oiling, a .125 in. radius on rod and main journals for increased strength, and the journals are precision-ground and micro-polished to less than 5 R.A. A target bob weight of +/- 2 percent greatly reduces balancing time. Many options are available; order the model recommended for your year/make and engine application.Brand: Eagle Specialty Products
Manufacturer's Part Number: 435640006000
Part Type: Crankshafts
Product Line: Eagle Forged 4340 Steel Crankshafts
HP Direct Part Number: ESP-435640006000
UPC: 793348015606
Engine Stroke (in.): 4.000 in.
Crankshaft Material: Forged 4340 steel
Engine Balance: Internal
Rear Main Seal Style: 1-piece, 2-piece
Lightened: No
Requires Narrow Bearings: Yes
Rod Bearings Included: No
Main Bearings Included: No
Rod Journal Diameter (in.): 2.100
Main Journal Diameter (in.): 2.750 in.
Crankshaft Snout Style: Standard
Weight: 53.000 lbs.
Quantity: Sold individually.
Notes: Crank has 351W snout and requires 0.375" spacer behind timing gear or special timing chain set when used in a Cleveland.
