Eagle Competition Rotating Assemblies 12010040

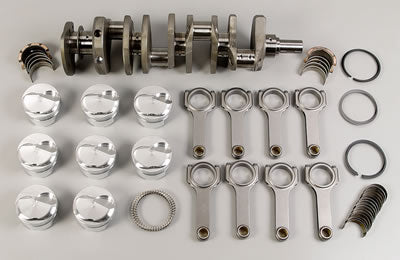

Eagle competition rotating assemblies consist of name-brand quality components for a wide range of engines at an affordable price. Depending upon your selection, these kits may feature a crankshaft, pistons, piston rings, rod and main bearings, or connecting rods. Balanced assemblies are also available. Order the model designed for fitment on your year/make vehicle and engine application.Brand: Eagle Specialty Products
Manufacturer's Part Number: 12010040
Part Type: Engine Rotating Kits
Product Line: Eagle Competition Rotating Assemblies
HP Direct Part Number: ESP-12010040
UPC: 793348525822
Actual Engine Displacement: 6.3L/385
Rear Main Seal Style: 2-piece
Bore (in.): 4.040 in.
Bore (mm): 102.616mm
Engine Stroke (in.): 3.750 in.
Balanced: No
Piston Material: Forged aluminum
Piston Style: Dish, with a D-shaped cup
Harmonic Balancer Included: No
Flexplate Included: No
Flywheel Included: No
Pistons Included: Yes
Piston Head Volume (cc): +16.00cc
Wrist Pin Style: Floating
Piston Rings Included: Yes
Piston Ring Facing Material: Plasmamoly
Piston and Ring Oversize (in.): 0.040 in.
Crankshaft Included: Yes
Crankshaft Material: Forged 4340 steel
Engine Balance: Internal
Connecting Rods Included: Yes
Connecting Rod Length Center to Center (in.): 6.000 in.
Connecting Rod Material: Forged 4340 steel
Connecting Rod Beam Style: H-beam
Rod Bearings Included: Yes
Rod Bearing Undersize (in.): Stock
Rod Bearing Undersize (mm): Stock
Main Bearings Included: Yes
Main Bearing Undersize (in.): Stock
Main Bearing Undersize (mm): Stock
Cam Bearings Included: No
Gaskets Included: No
Oil Pump Included: No
Camshaft Included: No
Lifters Included: No
Timing Chain and Gears Included: No
Plastigage Included: No
Assembly Lubricant Included: No
Quantity: Sold as a kit.
Notes: Assembly includes file fit piston rings. Suitable for up to 750 horsepower, 1500 horsepower with rod bolt upgrade.
