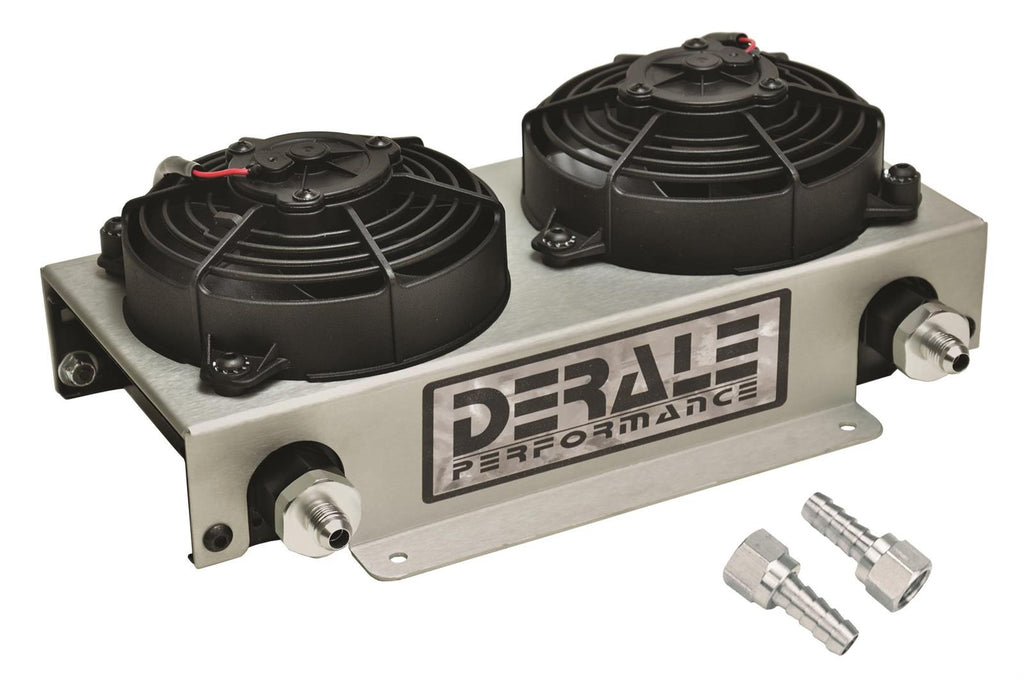

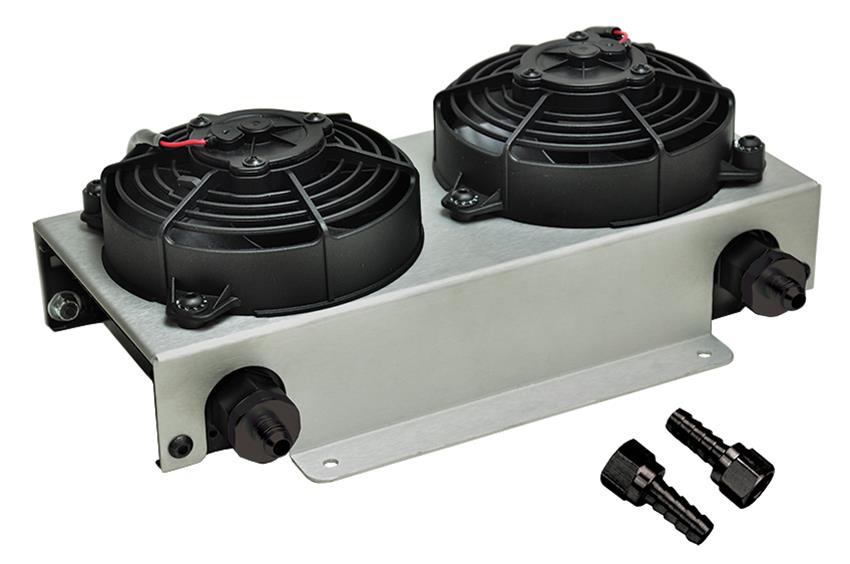

Derale Hyper-Cool Remote Fluid Coolers with Fan Kits 13740

Derale Hyper-Cool remote fluid coolers with fan kits provide the largest temperature drop of any fan-mounted cooler. Their unique fin and plate design maximizes heat dissipation and minimizes oil pressure drop, which is especially important on late model electronic overdrive transmission applications. The Derale Hyper-Cool remote fluid coolers have AN inlets and outlets and include hose barb adapters for standard rubber line. Rated at a whopping 30,000 GVW, the Derale Performance Hyper-Cool remote fluid coolers with fan make an excellent addition to your late model diesel truck.Brand: Derale Cooling Products
Manufacturer's Part Number: 13740
Part Type: Fluid Coolers
Product Line: Derale Hyper-Cool Remote Fluid Coolers with Fan Kits
HP Direct Part Number: DER-13740
UPC: 083277137402
Fluid Cooler Type: Universal
Overall Height (in.): 7.38 in.
Overall Width (in.): 13.00 in.
Overall Thickness (in.): 4.88
Cooler Construction: Plate
Fluid Cooler Inlet Size: -6 AN
Fluid Cooler Outlet Size: -6 AN
Inlet Attachment: Male threads
Outlet Attachment: Male threads
Cooler Material: Aluminum
Fan Included: Yes
Fan CFM Range: 600-699
Maximum Fan CFM: 630 cfm
Fan Quantity: Dual
Fan Diameter (in.): 5.00 in.
Number of Cooling Rows: 19
Cooler Color: Black painted
Quantity: Sold as a kit.
Notes: Includes two 3/8 in. hose barb fittings.
