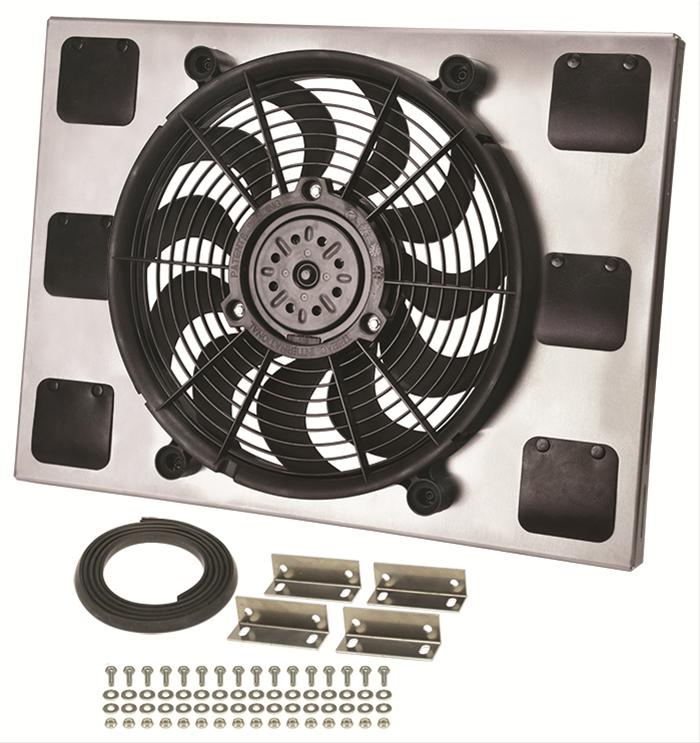

Derale High-Output Single RAD Fan and Shroud Kits 16827

Derale high-output single RAD fan and shroud kits eliminate the need for fuel and horsepower-robbing, belt-driven fans. These primary cooling fans are designed to provide maximum performance at high static-pressure loads for highly effective cooling! Their ultra-quiet patented skewed-blade design and 265 watt 2-speed motors allow these fans to smoothly pull large amounts of air to your engine. RAD fan shrouds are constructed from aircraft-quality aluminum with a natural satin finish that can be painted, anodized, or polished to your liking. Derale Performance high-output single RAD fan and shroud kits come complete with mounting hardware and instructions.Brand: Derale Cooling Products
Manufacturer's Part Number: 16827
Part Type: Fans, Electric
Product Line: Derale High-Output Single RAD Fan and Shroud Kits
HP Direct Part Number: DER-16827
UPC: 083277168277
Puller: Yes
Pusher: No
Fan Diameter (in.): 14.00 in.
Fan CFM Range: 2,100-2,199
Maximum Fan CFM: 2,100 cfm
Fan Quantity: Single
Electric Motor Type: Brushed
Height (in.): 15.438 in.
Width (in.): 23.438 in.
Thickness (in.): 2.750
Number of Blades: 11 blades
Blade Material: Plastic
Blade Color: Black
Shroud Color: Natural
Shroud Material: Aluminum
Amp Draw: 24.80 amps
Air Conditioning Relay Included: No
Mounting Brackets Included: Yes
Mounting Hardware Included: Yes
Remanufactured: No
Quantity: Sold individually.
Notes: Fan cfm rating was rated with the fan on high.
