Derale High-Output Dual RAD Fan and Shroud Kits 16825

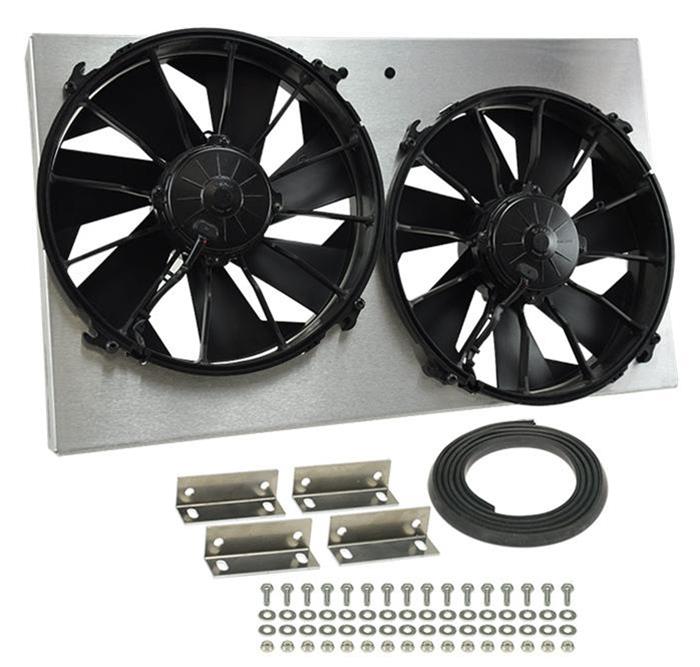

Derale high-output dual RAD fan and shroud kits are designed to provide maximum cooling performance at high static-pressure loads. Featuring high output 265 watt motors and an ultra-quiet, patented, skewed-blade design, these powerful dual primary cooling fan and shroud kits eliminate the need for fuel and horsepower-robbing, belt-driven fans. Derale Performance high-output dual RAD fan and shroud kits include a mounting kit and illustrated installation instructions.Brand: Derale Cooling Products
Manufacturer's Part Number: 16825
Part Type: Fans, Electric
Product Line: Derale High-Output Dual RAD Fan and Shroud Kits
HP Direct Part Number: DER-16825
UPC: 083277168253
Puller: Yes
Pusher: No
Fan Diameter (in.): 12.00 in.
Fan CFM Range: 4,000-4,099
Maximum Fan CFM: 4,000 cfm
Fan Quantity: Dual
Electric Motor Type: Brushed
Height (in.): 15.125 in.
Width (in.): 25.625 in.
Thickness (in.): 4.000
Number of Blades: 7 blades
Blade Material: Plastic
Blade Color: Black
Shroud Color: Natural
Shroud Material: Aluminum
Amp Draw: 49.60 amps
Air Conditioning Relay Included: No
Mounting Brackets Included: Yes
Mounting Hardware Included: Yes
Remanufactured: No
Quantity: Sold individually.
Notes: Thickness is 3.5 in. of the metal frame itself, with the plastic around it the thickness is 4 in.
