Description

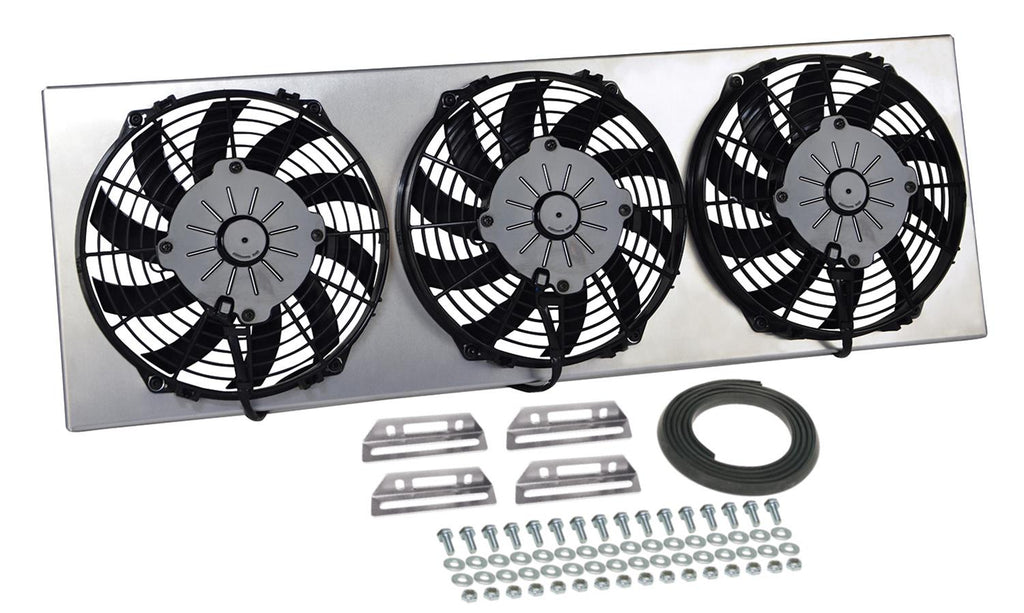

Derale high-output direct-fit triple RAD fan and shroud kits are part of the HO Aluminum Shrouded Fans Series that is designed with the application in mind to fit 1987-2001 Jeep Cherokee radiators. The units feature an aluminum shroud measuring 31 1/2 in. wide by 10 1/4 in. top to bottom and are only 3 1/4 in. overall depth to offer an adjustable yet precision fit. The natural, non-finished aluminum shroud gives the user the freedom to polish, anodize, paint, or simply leave it raw to create a truly custom look at an affordable price. The triple 9 in. high output electric fans are some of the most proven and reliable fans in the Derale lineup. Offering a total of 2,400 cfm, the triple electric fan assemblies generate the most real-world airflow in the smallest package on the market.
Features:
* Fits 1987-2001 Jeep Cherokee radiators
* Designed for primary cooling
* Raw aluminum shroud construction with stator flow directors can be polished, painted, or anodized
* Three high-output 9 in. IP68 water/dust-proof electric fans
* 2,400 cfm
* Slimline Series
* Ultra-quiet patented skewed blade design
* Multiple mounting options
* Puller (engine side) applications only
* Kit includes adjustable mounting brackets and complete mounting hardware
Specifications:
* CFM fan 1/2/3: 800/800/800
* Amp draw fan 1/2/3: 9.2/9.2/9.2
* Width: 31 1/2 in.
* Height: 10 1/4 in.
* Depth: 1 1/8 in.
* Overall depth: 3 1/4 in.
* Mounting: AdjustableBrand: Derale Cooling Products
Manufacturer's Part Number: 16839
Part Type: Fans, Electric
Product Line: Derale High-Output Direct-Fit Triple RAD Fan and Shroud Kits
HP Direct Part Number: DER-16839
UPC: 083277168390
Puller: Yes
Pusher: No
Fan Diameter (in.): 9.00 in.
Fan CFM Range: 2,400-2,499
Maximum Fan CFM: 2,400 cfm
Fan Quantity: Triple
Electric Motor Type: Brushed
Height (in.): 10.250 in.
Width (in.): 31.500 in.
Thickness (in.): 3.250
Number of Blades: 10 blades
Blade Material: Plastic
Blade Color: Black
Shroud Color: Natural
Shroud Material: Aluminum
Amp Draw: 9.20 amps
Air Conditioning Relay Included: No
Mounting Brackets Included: Yes
Mounting Hardware Included: Yes
Remanufactured: No
Quantity: Sold as a kit.
Features:
* Fits 1987-2001 Jeep Cherokee radiators
* Designed for primary cooling
* Raw aluminum shroud construction with stator flow directors can be polished, painted, or anodized
* Three high-output 9 in. IP68 water/dust-proof electric fans
* 2,400 cfm
* Slimline Series
* Ultra-quiet patented skewed blade design
* Multiple mounting options
* Puller (engine side) applications only
* Kit includes adjustable mounting brackets and complete mounting hardware
Specifications:
* CFM fan 1/2/3: 800/800/800
* Amp draw fan 1/2/3: 9.2/9.2/9.2
* Width: 31 1/2 in.
* Height: 10 1/4 in.
* Depth: 1 1/8 in.
* Overall depth: 3 1/4 in.
* Mounting: AdjustableBrand: Derale Cooling Products
Manufacturer's Part Number: 16839
Part Type: Fans, Electric
Product Line: Derale High-Output Direct-Fit Triple RAD Fan and Shroud Kits
HP Direct Part Number: DER-16839
UPC: 083277168390
Puller: Yes
Pusher: No
Fan Diameter (in.): 9.00 in.
Fan CFM Range: 2,400-2,499
Maximum Fan CFM: 2,400 cfm
Fan Quantity: Triple
Electric Motor Type: Brushed
Height (in.): 10.250 in.
Width (in.): 31.500 in.
Thickness (in.): 3.250
Number of Blades: 10 blades
Blade Material: Plastic
Blade Color: Black
Shroud Color: Natural
Shroud Material: Aluminum
Amp Draw: 9.20 amps
Air Conditioning Relay Included: No
Mounting Brackets Included: Yes
Mounting Hardware Included: Yes
Remanufactured: No
Quantity: Sold as a kit.
