Description

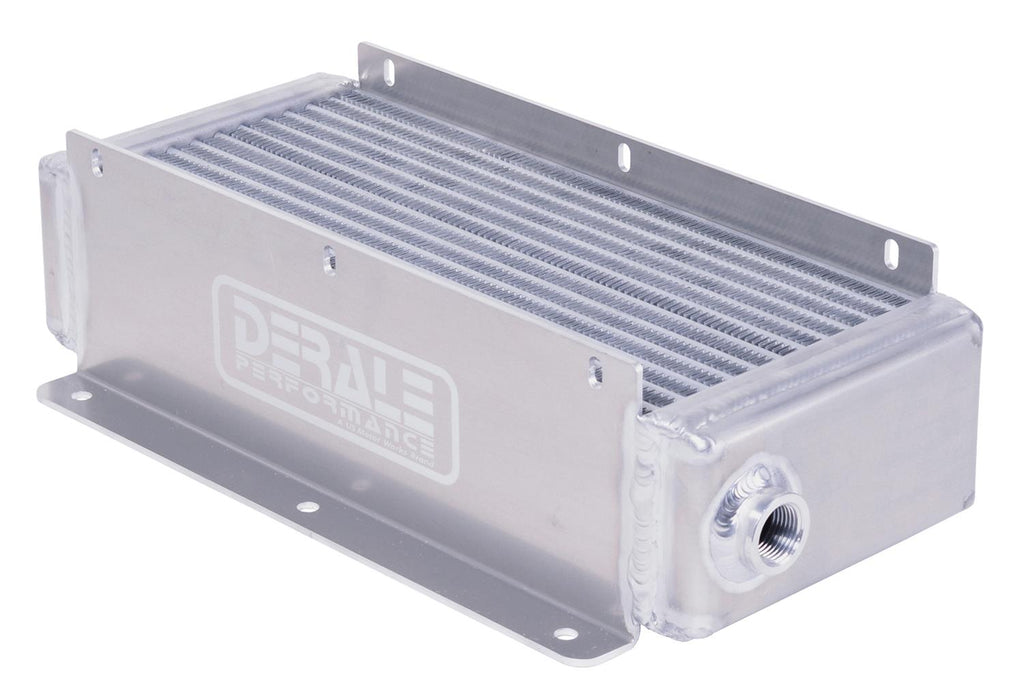

Derale is proud to introduce their latest addition to the remote cooler lineup: Hi-Flow Racing remote fluid coolers! These tube-and-fin coolers are precision TIG-welded—and feature the most efficient tube design in the aftermarket, supporting up to 350 psi with minimal pressure drop. The electric fans are IP68 certified (water/dust proof) and designed to perform even under the most strenuous conditions. These coolers are the perfect choice for everything from drag racing to off-road driving!
Additional features and benefits include:
* Aircraft-grade aluminum cooler design
* Dramatically extends engine or transmission life
* Designed for puller applications
* 20 gpm flow rate
Brand: Derale Cooling Products
Manufacturer's Part Number: 61178
Part Type: Fluid Coolers
Product Line: Derale Hi-Flow Racing Remote Fluid Coolers
HP Direct Part Number: DER-61178
UPC: 083277611780
Fluid Cooler Type: Transmission
Overall Height (in.): 8.25 in.
Overall Width (in.): 15.00 in.
Overall Thickness (in.): 4.25
Cooler Construction: Tube and fin
Fluid Cooler Inlet Size: 7/8 in.-14 O-ring
Fluid Cooler Outlet Size: 7/8 in. -14 O-ring
Inlet Attachment: Female O-ring
Outlet Attachment: Female O-ring
Cooler Material: Aluminum
Fan Included: No
Number of Cooling Rows: 11
Cooler Color: Natural
Quantity: Sold individually.

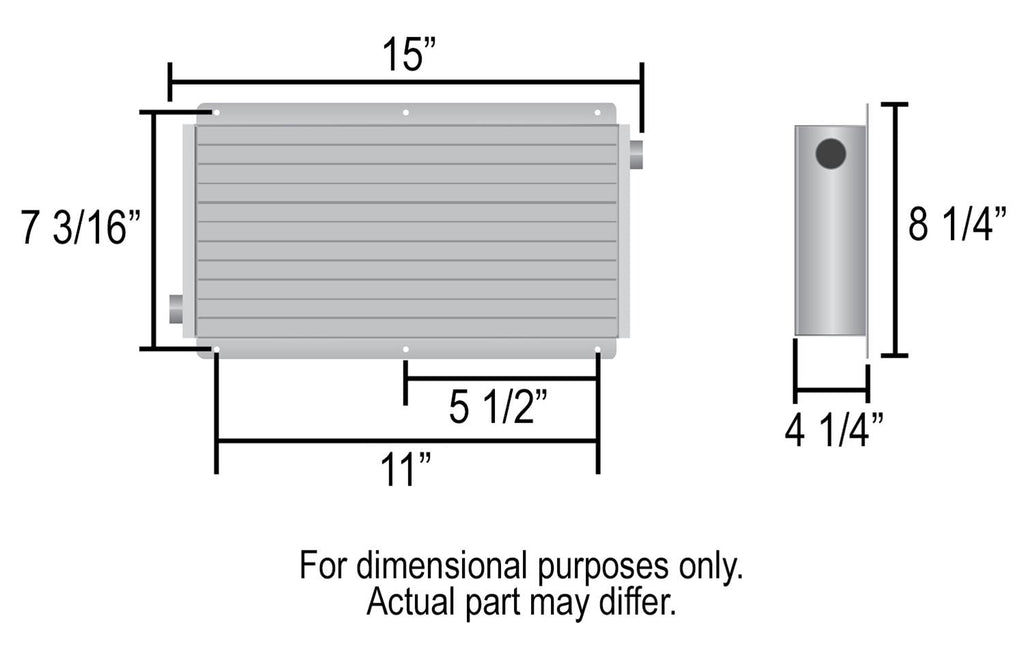

Notes: Mounting hole dimensions: 7.1875 in. x 11.0000 in. center-to-center plus top and bottom horizontally-centered holes.
Additional features and benefits include:
* Aircraft-grade aluminum cooler design
* Dramatically extends engine or transmission life
* Designed for puller applications
* 20 gpm flow rate
Brand: Derale Cooling Products
Manufacturer's Part Number: 61178
Part Type: Fluid Coolers
Product Line: Derale Hi-Flow Racing Remote Fluid Coolers
HP Direct Part Number: DER-61178
UPC: 083277611780
Fluid Cooler Type: Transmission
Overall Height (in.): 8.25 in.
Overall Width (in.): 15.00 in.
Overall Thickness (in.): 4.25
Cooler Construction: Tube and fin
Fluid Cooler Inlet Size: 7/8 in.-14 O-ring
Fluid Cooler Outlet Size: 7/8 in. -14 O-ring
Inlet Attachment: Female O-ring
Outlet Attachment: Female O-ring
Cooler Material: Aluminum
Fan Included: No
Number of Cooling Rows: 11
Cooler Color: Natural
Quantity: Sold individually.
Notes: Mounting hole dimensions: 7.1875 in. x 11.0000 in. center-to-center plus top and bottom horizontally-centered holes.
