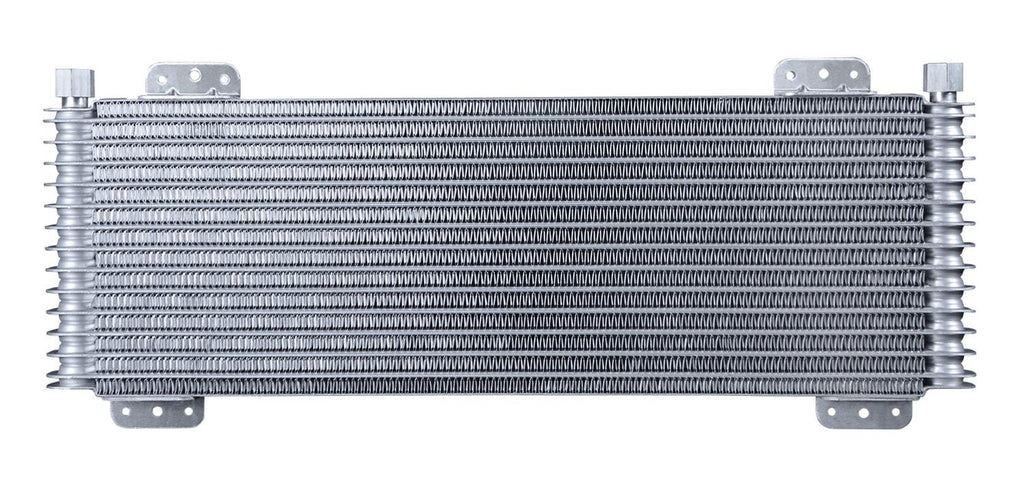

Derale 9500 Series Fin and Plate Transmission Coolers 33633

Very popular with original equipment manufacturers for use on their towing applications, Derale 9500 Series fin and plate transmission coolers feature strong furnace-brazed construction embossed turbulators which maximize heat transfer while also minimizing pressure drop. These units are perfect for light- to medium-duty use and occasional towing. They greatly extend transmission life by preventing heat-related transmission failures, and improve shifting performance. The coolers are built with 5/8 in. inverted flare inlets.

Additional detais:

* 13 row cooler design
* Turbulators maximize cooling and minimize pressure drop
* 3/8 in. hose barb adapters included
* BTU: 33000
* Fluid capacity: 20 oz.
* All Derale coolers are rated at 250 psi working pressure and 300 psi burst strength

Brand: Derale Cooling Products
Manufacturer's Part Number: 33633
Part Type: Fluid Coolers
Product Line: Derale 9500 Series Fin and Plate Transmission Coolers
HP Direct Part Number: DER-33633
UPC: 083277336331
Fluid Cooler Type: Transmission

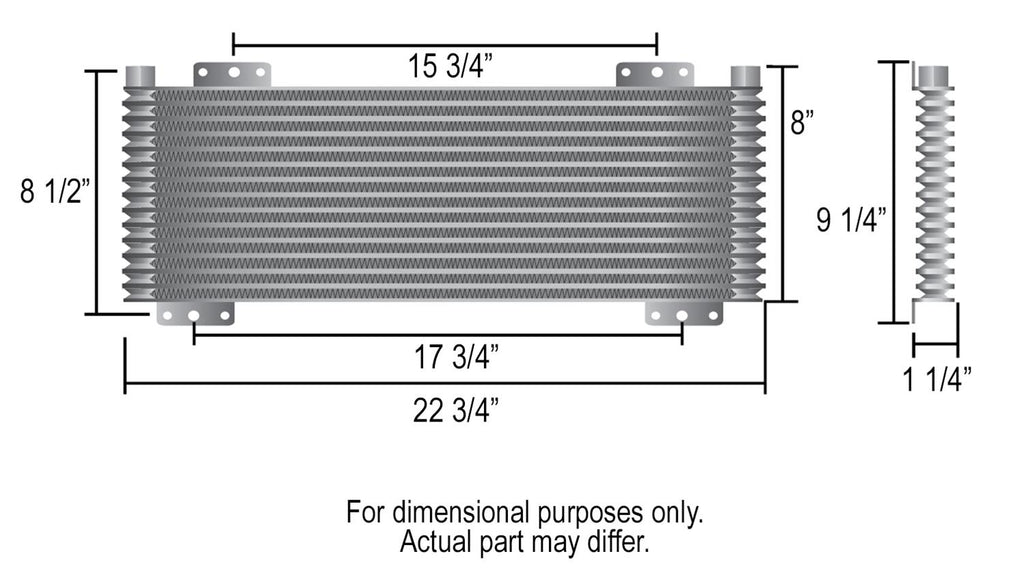

Overall Height (in.): 9.25 in.
Overall Width (in.): 22.75 in.
Overall Thickness (in.): 1.25
Cooler Construction: Plate
Fluid Cooler Inlet Size: 0.625 in.
Fluid Cooler Outlet Size: 0.625 in.
Inlet Attachment: Inverted flare
Outlet Attachment: Inverted flare
Cooler Material: Aluminum
Fan Included: No
Number of Cooling Rows: 13
Quantity: Sold individually.
