Description

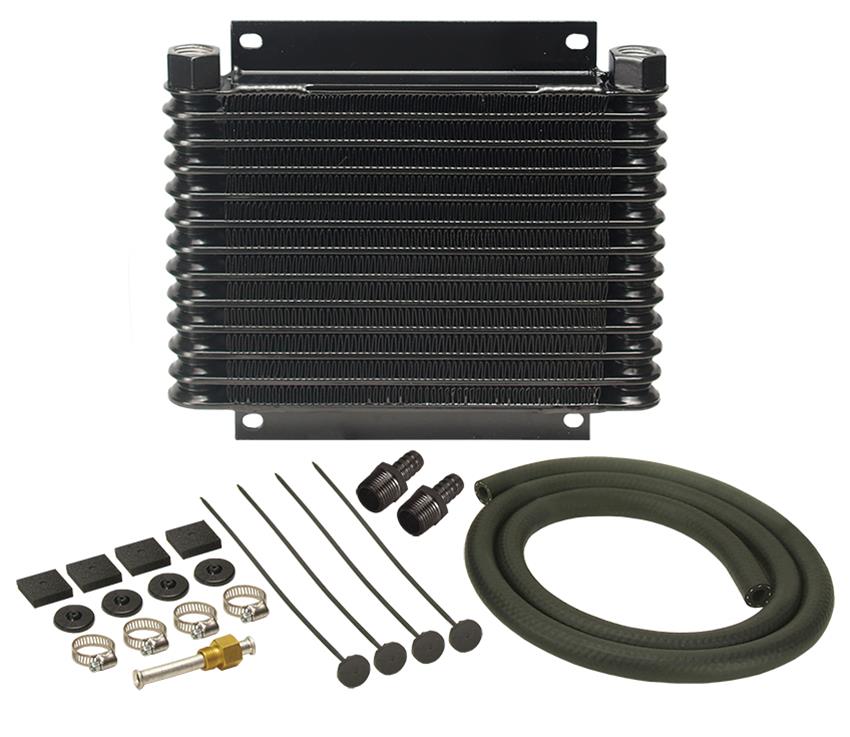

Derale 9000 Series fin and plate transmission coolers are designed with 1 1/4 in. wide turbulator plates to maximize cooling and minimize pressure drops. They also feature sturdy furnace-brazed aluminum construction, and 6 AN inlets with hose barb adapters. Outstanding protection for your vehicle's key components--that's the job of Derale Performance!Brand: Derale Cooling Products
Manufacturer's Part Number: 13613
Part Type: Fluid Coolers
Product Line: Derale 9000 Series Fin and Plate Transmission Coolers
HP Direct Part Number: DER-13613
UPC: 083277136139
Fluid Cooler Type: Universal
Overall Height (in.): 8.44 in.
Overall Width (in.): 9.75 in.
Overall Thickness (in.): 1.25
Cooler Construction: Tube and fin
Fluid Cooler Inlet Size: 1/2 in. NPT
Fluid Cooler Outlet Size: 1/2 in. NPT
Inlet Attachment: Female threads
Outlet Attachment: Female threads
Cooler Material: Aluminum
Fan Included: No
Number of Cooling Rows: 13
Core Height (in.): 6.63 in.
Core Width (in.): 8.50 in.
Core Thickness (in.): 1.25 in.
Cooler Color: Black painted
Quantity: Sold as a kit.
Notes: 22,000 GVW rated.
Manufacturer's Part Number: 13613
Part Type: Fluid Coolers
Product Line: Derale 9000 Series Fin and Plate Transmission Coolers
HP Direct Part Number: DER-13613
UPC: 083277136139
Fluid Cooler Type: Universal
Overall Height (in.): 8.44 in.
Overall Width (in.): 9.75 in.
Overall Thickness (in.): 1.25
Cooler Construction: Tube and fin
Fluid Cooler Inlet Size: 1/2 in. NPT
Fluid Cooler Outlet Size: 1/2 in. NPT
Inlet Attachment: Female threads
Outlet Attachment: Female threads
Cooler Material: Aluminum
Fan Included: No
Number of Cooling Rows: 13
Core Height (in.): 6.63 in.
Core Width (in.): 8.50 in.
Core Thickness (in.): 1.25 in.
Cooler Color: Black painted
Quantity: Sold as a kit.
Notes: 22,000 GVW rated.
