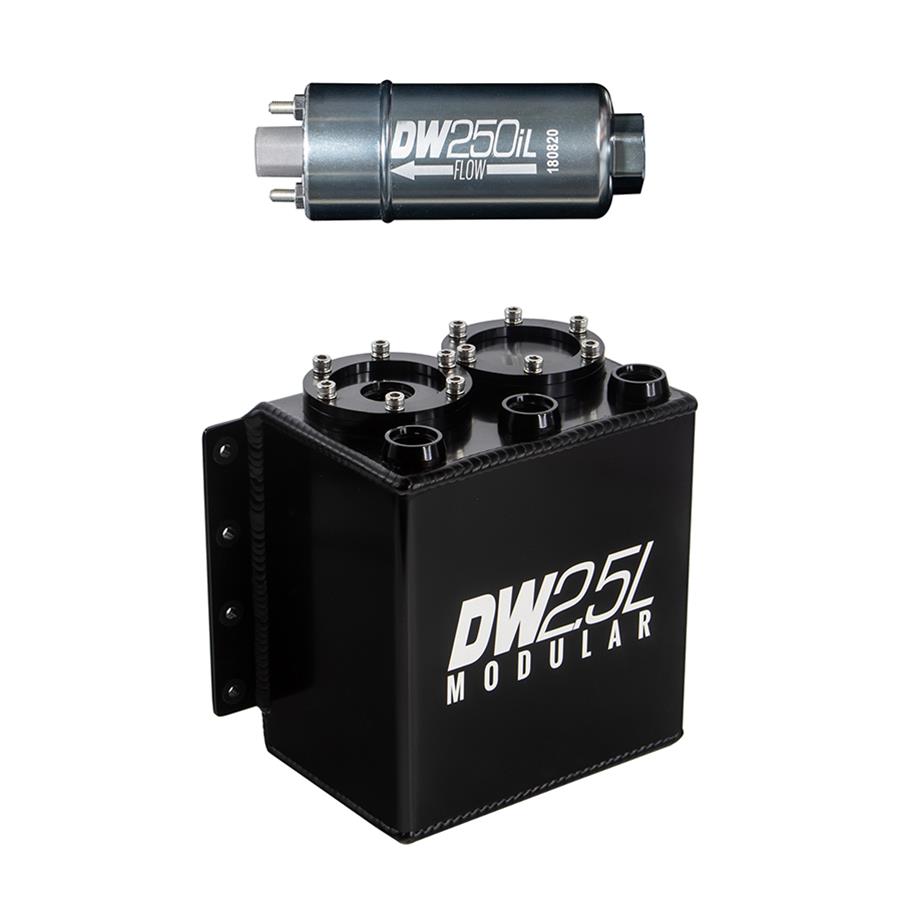

DeatschWerks Staged Surge Tanks 6-251-25ST

DeatschWerks staged surge tanks are the universal answer to your high-performance fueling needs. From high cornering speeds to hard launches, these aluminum surge tanks prevent fuel starvation, low fuel pressure, and air in your fuel lines. Keep your fuel right where it needs to be with a DeatschWerks staged surge tank! Order the model you need.

Features include:

* Configurable for single, dual, triple, or external pumps
* Vertical or horizontal mounting
* Anodized for E85 and methanol compatibility
* Available with or without DeatschWerks fuel pumpsBrand: DeatschWerks
Manufacturer's Part Number: 6-251-25ST
Part Type: Surge Tanks
Product Line: DeatschWerks Staged Surge Tanks
HP Direct Part Number: DWK-6-251-25ST
UPC: 00887753535054
Fuel Pump Included: Yes
Flow Rate: 66 gph/250 lph
Maximum Pressure (psi): 100 psi
Capacity: 2.5 liter
Inlet Attachment: Female threads
Fuel Pump Inlet Size: -8 AN O-ring
Inlet Quantity: 1
Outlet Attachment: Female threads
Fuel Pump Outlet Size: -8 AN O-ring
Outlet Quantity: 2
Sending Unit Included: No
Gasket Included: No
Fuel Pressure Regulator Included: No
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Wiring Harness Included: No
Length (in.): 8.543 in.
Width (in.): 4.330 in.
Height (in.): 4.724 in.
Quantity: Sold as a kit.
