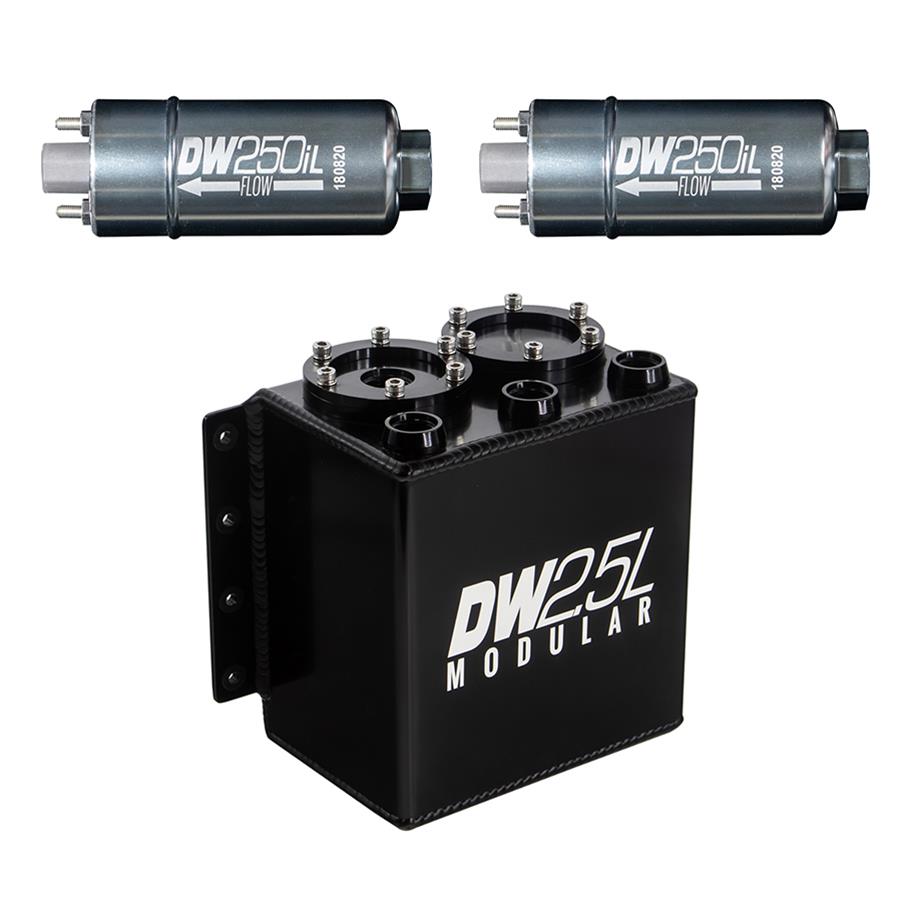

DeatschWerks Modular Surge Tanks 6-252-25ST

DeatschWerks modular surge tanks are universal units for racing and high-horsepower applications where traditional in-tank pumps do not meet the needs of the build. Motorsports surge tanks provide a small fuel reserve to avoid fuel starvation in high-G corners and low fuel tank levels. DW's modular surge tanks take all the functionality of traditional motorsports surge tanks and add compact packaging, decreased pump noise, and increased flexibility. In addition to providing a reserve of fuel, they provide an ideal location for mounting additional fuel pumps to supplement an inadequate in-tank pump. DeatschWerks modular surge tanks are available with or without inline fuel pumps. Choose the model best suited to your build.
Brand: DeatschWerks
Manufacturer's Part Number: 6-252-25ST
Part Type: Surge Tanks
Product Line: DeatschWerks Modular Surge Tanks
HP Direct Part Number: DWK-6-252-25ST
UPC: 00887753535061
Fuel Pump Included: Yes
Flow Rate: 66 gph/250 lph
Maximum Pressure (psi): 100 psi
Capacity: 2.5 liter
Inlet Attachment: Female threads
Inlet Quantity: 1
Outlet Attachment: Female threads
Fuel Pump Outlet Size: -8 AN
Outlet Quantity: 2
Sending Unit Included: No
Gasket Included: No
Fuel Pressure Regulator Included: No
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Wiring Harness Included: No
Length (in.): 8.543 in.
Width (in.): 4.330 in.
Height (in.): 4.724 in.
Quantity: Sold as a kit.
