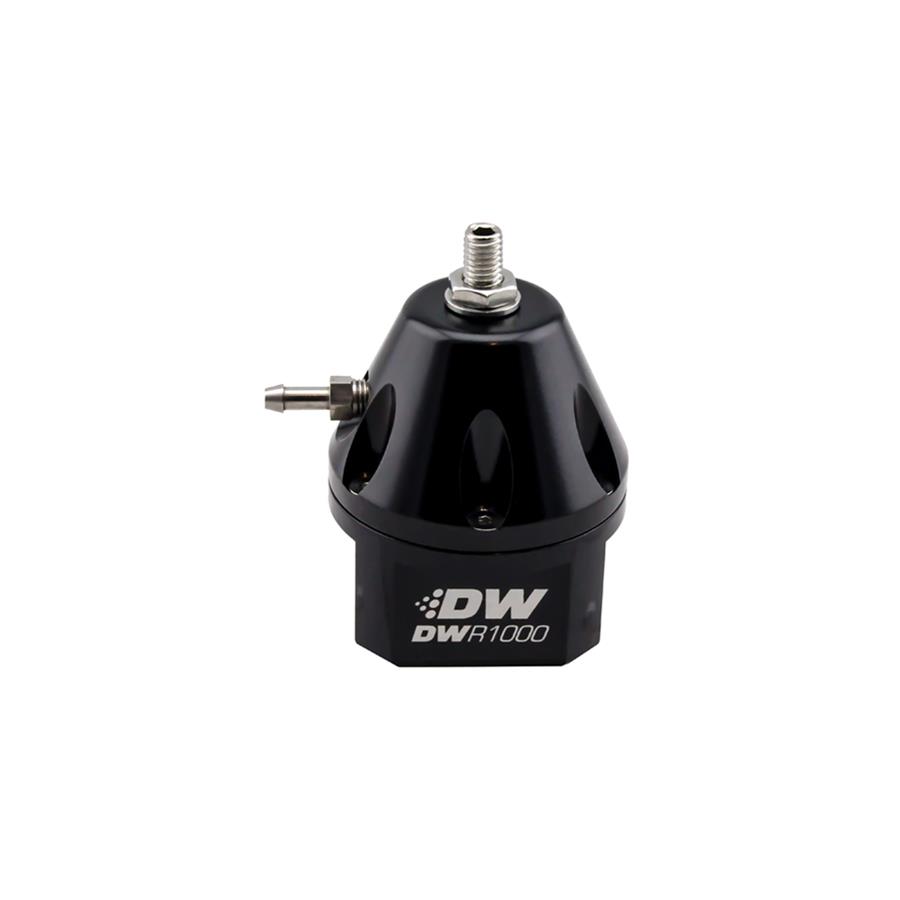

DeatschWerks Fuel Pressure Regulators 6-1000-FRB

DeatschWerks fuel pressure regulators provide the quality, precision, and reliability that your high performance fuel system requires to deliver optimum performance. DW adjustable regulators come in 1,000 and 2,000 hp models, with both featuring dual AN inlets, single bottom mounted AN returns, and semi-compact 60mm footprints for maximum installation flexibility. They utilize stainless steel hardware, nitrile fiber diaphragms, anodized housings, and 100 percent brass-free construction to be compatible with ethanol and methanol. The design of the DeatschWerks fuel pressure regulators will also allow for precision pressure adjustment via their ball-bearing mechanism, combined with a 2 psi-per-turn pressure ratio that makes dialing-in your desired target easy.Brand: DeatschWerks
Manufacturer's Part Number: 6-1000-FRB
Part Type: Fuel Pressure Regulators
Product Line: DeatschWerks Fuel Pressure Regulators
HP Direct Part Number: DWK-6-1000-FRB
UPC: 00887753528513
Regulator Pressure (psi): 30-100
Regulator Style: Return
Regulator Location: Inline
Boost/Vacuum Reference Port: Yes
Gauge Port: Yes
Inlet Quantity: 2
Regulator Inlet Size: -8 AN
Inlet Attachment: Female straight cut O-ring
Outlet Quantity: 1
Regulator Outlet Size: -8 AN
Outlet Attachment: Female straight cut O-ring
Return Fitting Size: -6 AN
Return Attachment: Female straight cut O-ring
Fittings Included: No
Regulator Material: Aluminum
Regulator Color: Black
Rebuildable: No
Mounting Bracket Included: Yes
Remanufactured: No
Quantity: Sold individually.
