Description

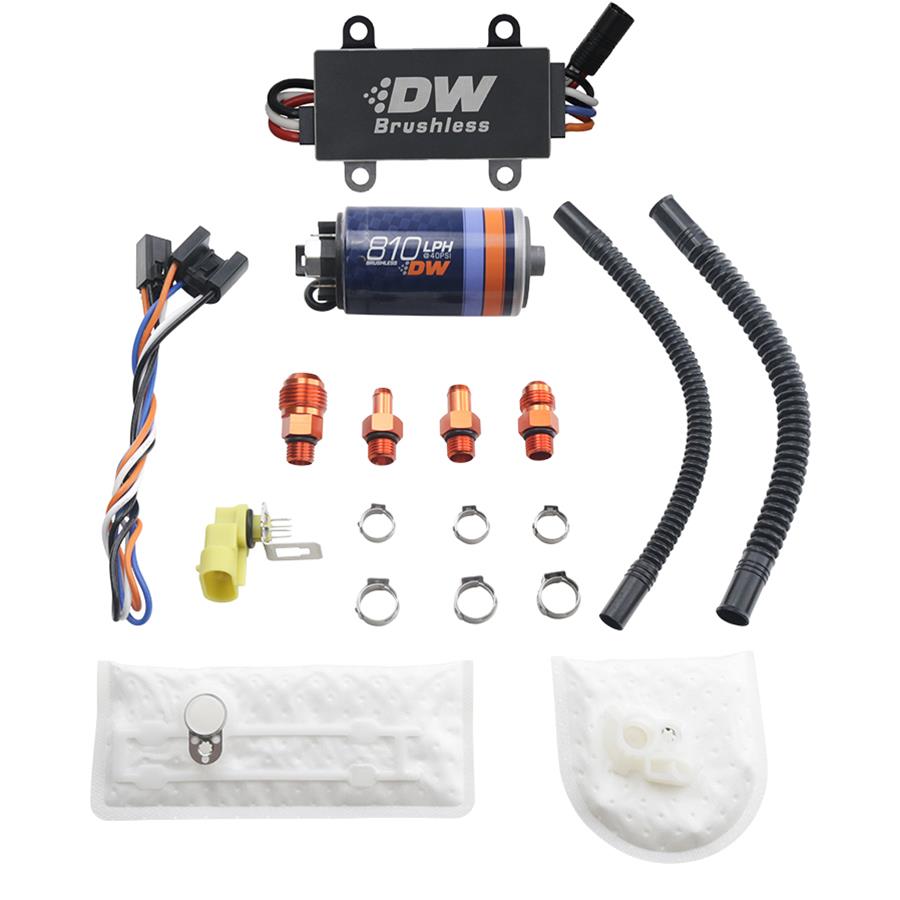

DeatschWerks DW810 brushless in-tank electric fuel pumps provide unprecedented high fuel flow in a reliable, quiet, and compact package. The units optimized impeller design achieves peak efficiency at target flow rates while careful engineering of internal fluid flow eliminates restrictions. The DW810 in-tank electric fuel pumps brushless motor technology reduces friction and heat, vastly improving durability, especially when using aggressive fuels such as ethanol and methanol.
DeatschWerks has engineered their fuel pumps to maximize flow at higher pressures. By designing the armature for torque bias, delaying pressure relief activation, and maximizing impeller efficiency, DW has created a line of pumps with an extremely flat flow curve. Higher flow at higher pressure delivers the fuel your engine demands.
All DW pump designs go through 1,000 hours of endurance bench testing in a number of fuels to find and eliminate common modes of failures. Upon success, the pump design is in-car tested for several months in real-world conditions before production is approved. Each fuel pump is flow tested at pressure to make doubly sure that it meets DW's high standards of performance before it is labeled and packaged.
Product features:
* One pump—two times the flow!
* 5/16 in., 3/8 in., -6AN and -8AN anodized fittings included
* Compact size is optimized for in-tank use
* Universal bulkhead harness and fitment kit included with select pump models as noted
* Compatible with all fuels including Methanol and E100
* No brushes, plus no commutator equals ultimate durabilityBrand: DeatschWerks
Manufacturer's Part Number: 9-811-C105-1002
Part Type: Fuel Pumps
Product Line: DeatschWerks DW810 Brushless In-Tank Electric Fuel Pumps
HP Direct Part Number: DWK-9811C1051002
UPC: 00887753543349
Fuel Pump Type: Electric In-tank
Flow Rate: 214 gph/810 lph
Fuel Pressure (psi): 80 psi
Fuel Pump Voltage: 12 V
Fuel Pressure Regulator Included: Yes
Sending Unit Included: No
Inlet Quantity: 1
Inlet Attachment: Female threads
Fuel Pump Outlet Size: -4 AN O-ring
Outlet Quantity: 1
Outlet Attachment: Female O-ring
Gasket Included: No
Wiring Harness Included: Yes
Mounting Bracket Included: No
Mounting Hardware Included: Yes
Pulley Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: Includes C105 dual speed controller.
DeatschWerks has engineered their fuel pumps to maximize flow at higher pressures. By designing the armature for torque bias, delaying pressure relief activation, and maximizing impeller efficiency, DW has created a line of pumps with an extremely flat flow curve. Higher flow at higher pressure delivers the fuel your engine demands.
All DW pump designs go through 1,000 hours of endurance bench testing in a number of fuels to find and eliminate common modes of failures. Upon success, the pump design is in-car tested for several months in real-world conditions before production is approved. Each fuel pump is flow tested at pressure to make doubly sure that it meets DW's high standards of performance before it is labeled and packaged.
Product features:
* One pump—two times the flow!
* 5/16 in., 3/8 in., -6AN and -8AN anodized fittings included
* Compact size is optimized for in-tank use
* Universal bulkhead harness and fitment kit included with select pump models as noted
* Compatible with all fuels including Methanol and E100
* No brushes, plus no commutator equals ultimate durabilityBrand: DeatschWerks
Manufacturer's Part Number: 9-811-C105-1002
Part Type: Fuel Pumps
Product Line: DeatschWerks DW810 Brushless In-Tank Electric Fuel Pumps
HP Direct Part Number: DWK-9811C1051002
UPC: 00887753543349
Fuel Pump Type: Electric In-tank
Flow Rate: 214 gph/810 lph
Fuel Pressure (psi): 80 psi
Fuel Pump Voltage: 12 V
Fuel Pressure Regulator Included: Yes
Sending Unit Included: No
Inlet Quantity: 1
Inlet Attachment: Female threads
Fuel Pump Outlet Size: -4 AN O-ring
Outlet Quantity: 1
Outlet Attachment: Female O-ring
Gasket Included: No
Wiring Harness Included: Yes
Mounting Bracket Included: No
Mounting Hardware Included: Yes
Pulley Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: Includes C105 dual speed controller.
