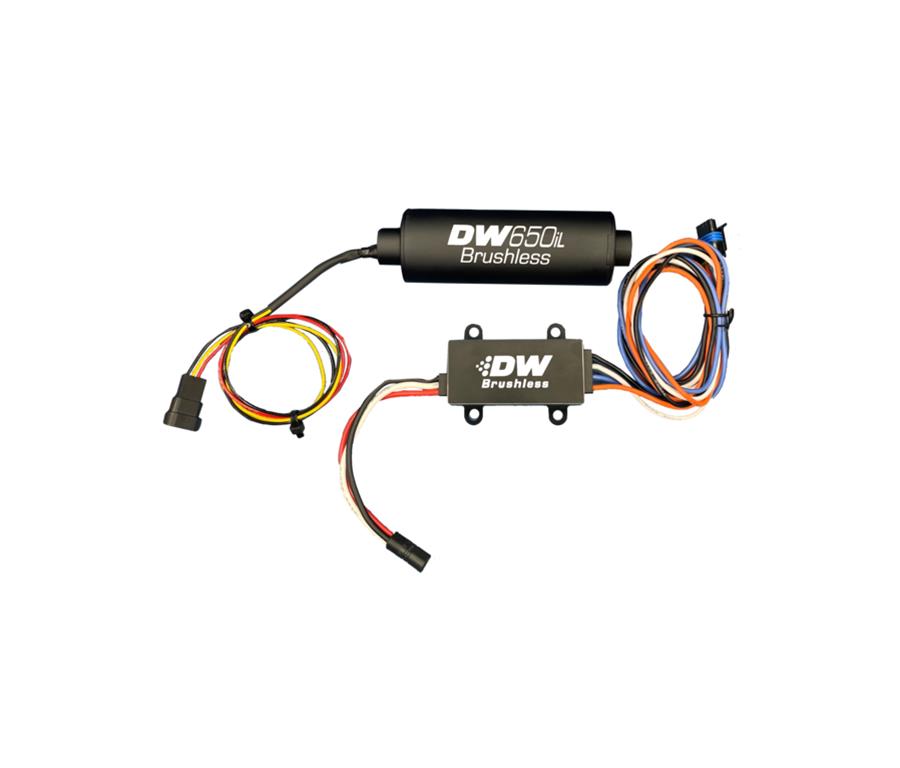

DeatschWerks DW650il Brushless In-Line Electric Fuel Pumps 9-650-C105

DeatschWerks' DW650iL brings brushless technology to its line of inline electric fuel pumps. Brushless technology reduces friction and heat, increases efficiency, vastly improves pump lifespan in ethanol and methanol fuels, and allows higher voltage inputs for increased flow. This fuel pump includes single/2-speed controller and is designed for use in sanctioned competition, not public roads unless permitted by specific regulatory exemption.

Product specs:

* Weight: 22 oz.
* External materials: Hard anodized aluminum
* Inlet fitting: -8 AN ORB
* Outlet fitting: -8 AN ORB
* Impeller design: Positive displacement screw
* Connector terminal: Pre-terminated connector
* Minimum voltage input: 8 V
* Maximum voltage input: 26 V
* Current draw 40 psi: 7.6 amps
* Pump does not have an internal check valve

Brand: DeatschWerks
Manufacturer's Part Number: 9-650-C105
Part Type: Fuel Pumps
Product Line: DeatschWerks DW650il Brushless In-Line Electric Fuel Pumps
HP Direct Part Number: DWK-9-650-C105
UPC: 00887753537935
Fuel Pump Type: Electric external
Flow Rate: 171 gph/650 lph
Fuel Pressure (psi): 120 psi
Fuel Pump Voltage: 8-22 V
Fuel Pressure Regulator Included: No
Sending Unit Included: No
Fuel Pump Inlet Size: -8 AN O-ring
Inlet Quantity: 1
Inlet Attachment: Female straight cut O-ring
Fuel Pump Outlet Size: -8 AN O-ring
Outlet Quantity: 1
Outlet Attachment: Female straight cut O-ring
Gasket Included: No
Wiring Harness Included: Yes
Mounting Bracket Included: No
Mounting Hardware Included: No
Pulley Included: No
Remanufactured: No
Quantity: Sold as a kit.
Notes: Fuel pump controller included.
