DeatschWerks DW440 Brushless In-Tank Electric Fuel Pumps 9-442-C102-0909

DeatschWerks DW440 brushless in-tank electric fuel pumps have a total height of only 4 in., making them easy to retrofit into any OE pump module. Brushless technology reduces friction and heat, increases efficiency, vastly improves pump lifespan in ethanol and methanol fuels—and allows higher voltage inputs for increased flow! These pumps move 440 lph of fuel at 40 psi.

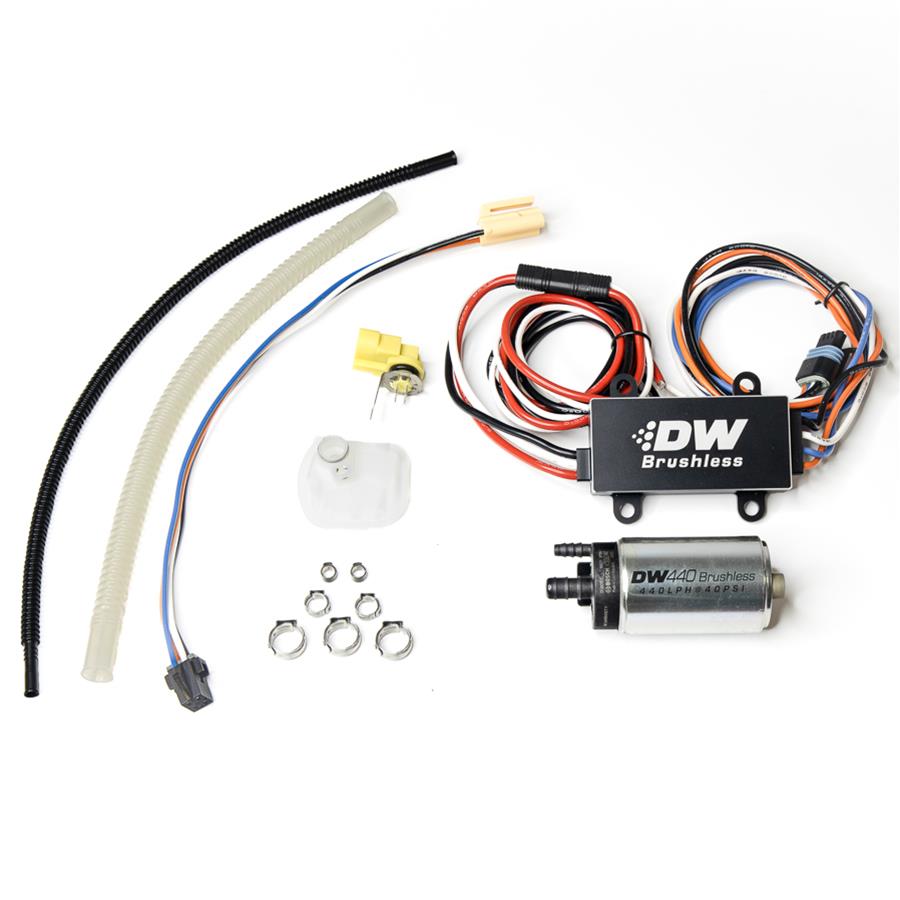

Each fuel pump includes a controller, which accepts an 8-22 V DC input and creates a digital signal to allow precise speed and torque control. The controllers are available in three configurations: single speed, dual speed, and PWM-controlled. Controller are designed to be used with voltage boosters, and the pump kits also include bulkhead wiring.

Brand: DeatschWerks
Manufacturer's Part Number: 9-442-C102-0909
Part Type: Fuel Pumps
Product Line: DeatschWerks DW440 Brushless In-Tank Electric Fuel Pumps
HP Direct Part Number: DWK-9442C1020909
UPC: 00887753536853
Fuel Pump Type: Electric In-tank
Flow Rate: 116 gph/440 lph
Fuel Pressure (psi): 40 psi
Fuel Pump Voltage: 12 V
Fuel Pressure Regulator Included: No
Sending Unit Included: No
Fuel Pump Inlet Size: 11.00mm
Inlet Quantity: 1
Inlet Attachment: Hose barb
Fuel Pump Outlet Size: 3/8 in.
Outlet Quantity: 1
Outlet Attachment: Hose barb
Gasket Included: No
Wiring Harness Included: Yes
Mounting Bracket Included: No
Mounting Hardware Included: No
Pulley Included: No
Remanufactured: No
Quantity: Sold as a kit.
Notes: Includes C102 controller.
