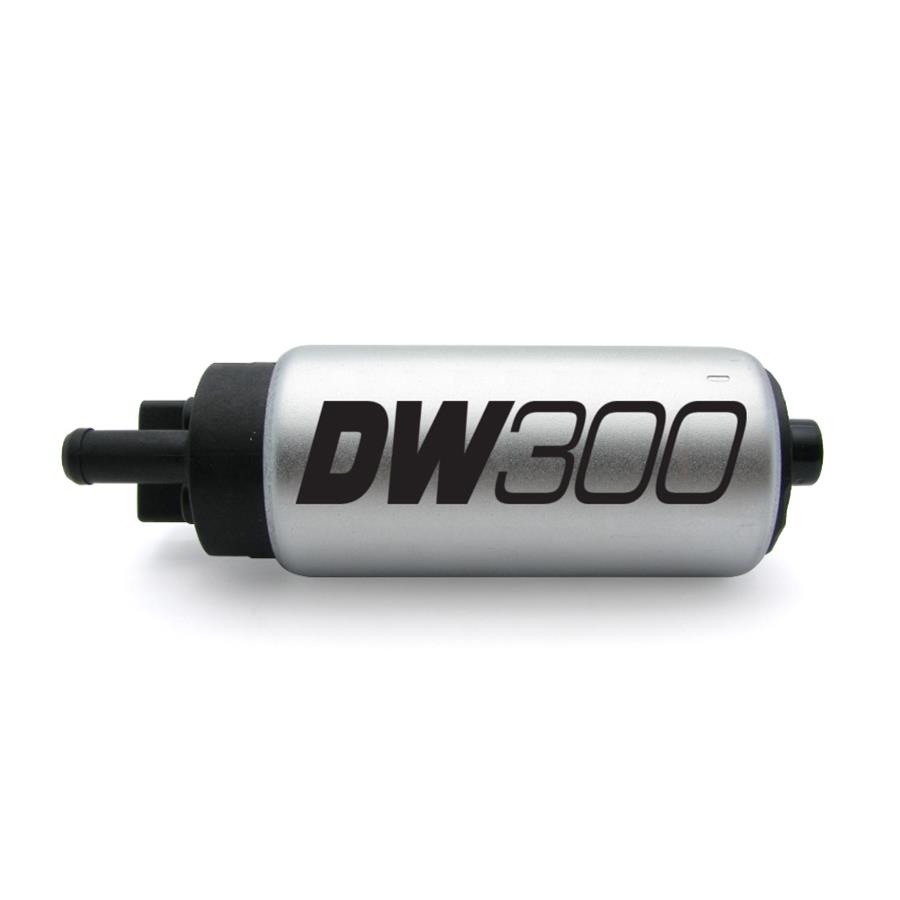

DeatschWerks DW300 In-Tank Electric Fuel Pumps 9-301S-1003

Redesigned DeatschWerks DW300 in-tank electric fuel pumps flow 26 percent more at peak, and 20 percent greater on average than their predecessor, with no significant increase in current draw. The low amperage draw minimizes pump temperatures, maximizes pump life, and reduces stress on OE wiring.

In order to achieve a flatter flow curve, DeatschWerks uses a dual zone approach which increases flow where specifically engineered for high pressure, and limits flow at low pressure, thus achieving excellent performance and reliability.

The units are Ethanol compatible, have reliable and quiet turbine impellers, and work well with super or turbocharged applications. Get the flow to get up and go by installing DeatschWerks DW300 in-tank electric fuel pumps.Brand: DeatschWerks
Manufacturer's Part Number: 9-301S-1003
Part Type: Fuel Pumps
Product Line: DeatschWerks DW300 In-Tank Electric Fuel Pumps
HP Direct Part Number: DWK-9301S1003
UPC: 00887753529794
Fuel Pump Type: Electric In-tank
Flow Rate: 90 gph/340 lph
Fuel Pressure (psi): 100 psi
Fuel Pump Voltage: 12 V
Fuel Pressure Regulator Included: No
Sending Unit Included: No
Fuel Pump Inlet Size: 11.00mm
Inlet Quantity: 1
Inlet Attachment: Hose barb
Fuel Pump Outlet Size: 5/16 in.
Outlet Quantity: 1
Outlet Attachment: Hose barb
Gasket Included: No
Wiring Harness Included: No
Mounting Bracket Included: No
Mounting Hardware Included: No
Pulley Included: No
Remanufactured: No

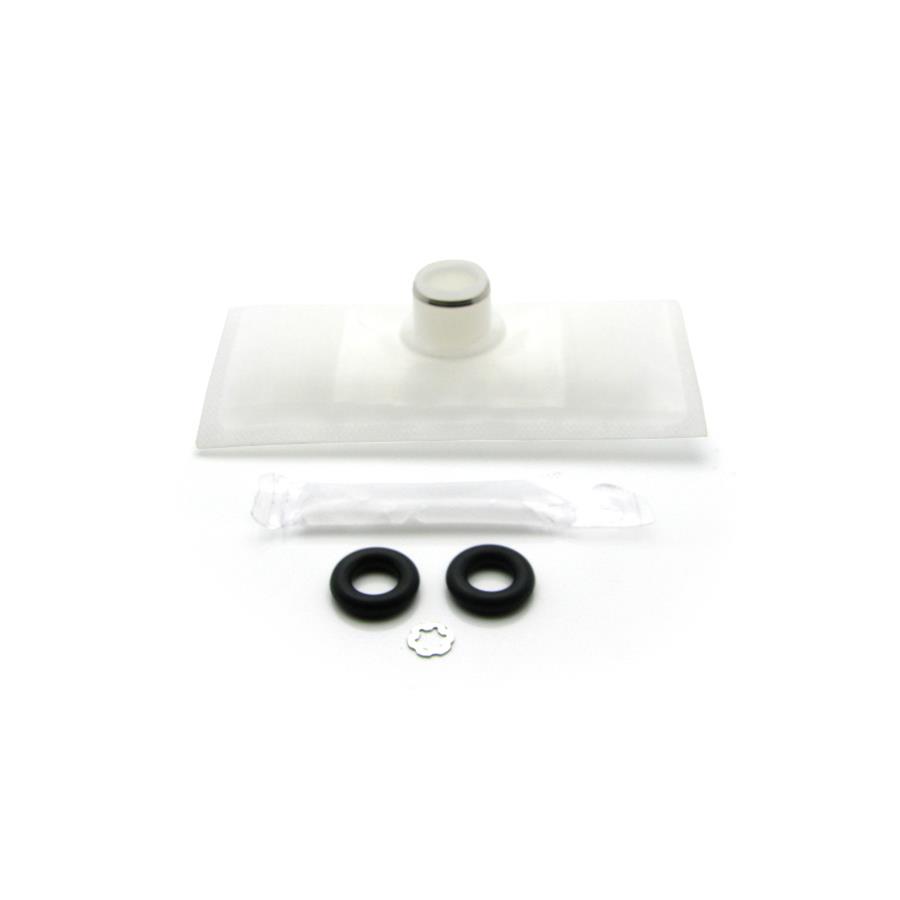

Quantity: Sold as a kit.
Notes: Must reuse your fuel pump sending unit.
