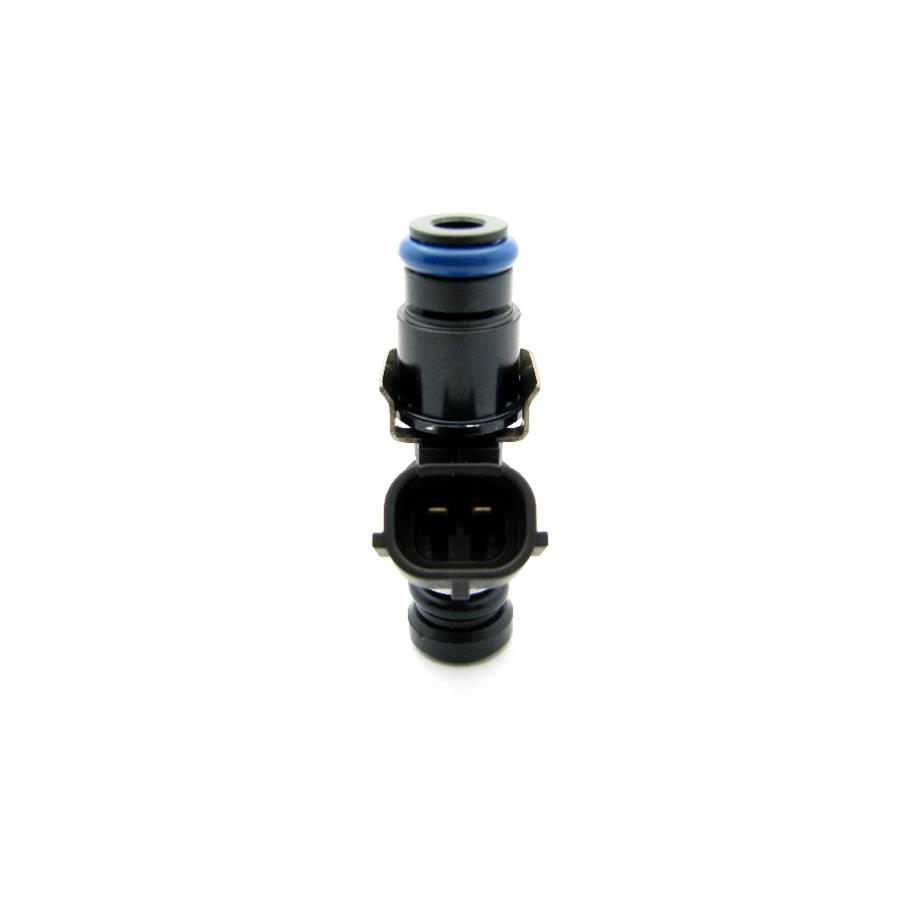

DeatschWerks Bosch EV14 Universal Fuel Injectors 16S-12-2200-8

DeatschWerks Bosch EV14 Universal fuel injectors represent Bosch's most advanced multi-port fuel injector technology! These injectors deliver an excellent spray pattern and atomization for optimized idle and tuning. They are provided with tuning data and a custom flow report for an easier tuning process. They have 10 different flow rates; so you can choose the combination of features that best meets your needs. EV14 injectors are offered in three different lengths, two different O-ring diameters, and 10 different flow rates; so you can choose the combination of features that best meets your needs. DeatschWerks Bosch EV14 Universal fuel injectors feature low inertia, ball and seat pintle design, and high quality copper coils to deliver fast and precise opening times.Brand: DeatschWerks
Manufacturer's Part Number: 16S-12-2200-8
Part Type: Fuel Injectors
Product Line: DeatschWerks Bosch EV14 Universal Fuel Injectors
HP Direct Part Number: DWK-16S1222008
UPC: 00887753526151
OEM Replacement: No
Injector Advertised Flow Rate (lbs./hr.): 215 lbs./hr.
Injector Advertised Flow Rate (cc/min.): 2,200.0cc/min.
Injector Plug Style: Sumitomo
Injector Impedance: 8.8 ohms
Wiring Harness Included: No
O-Rings Included: Yes
Remanufactured: No
Quantity: Sold as a set of 8.
Notes: 48mm length (standard design) with a 14mm fuel rail bore. These connectors have a pigtail end and must be soldered in.
