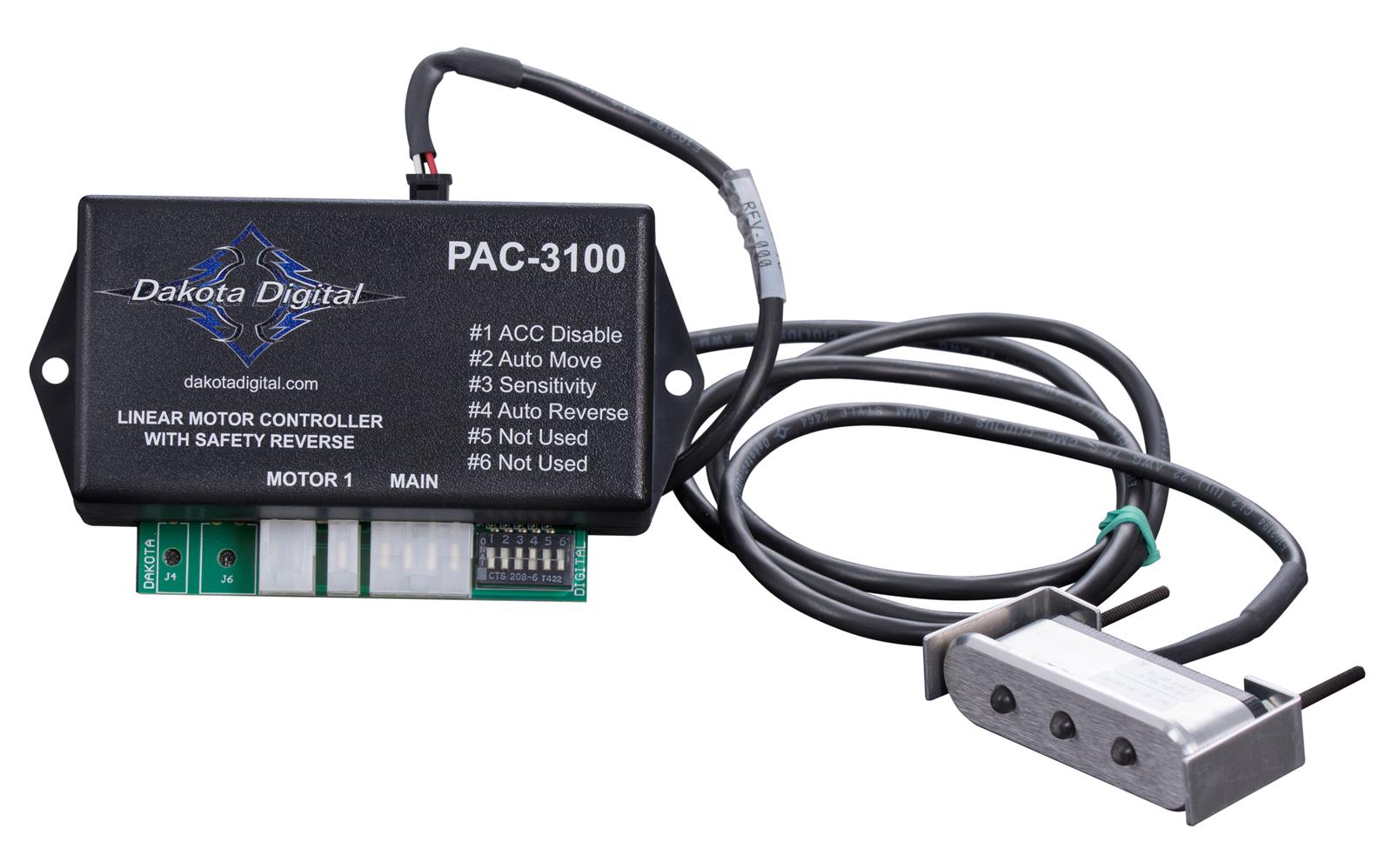

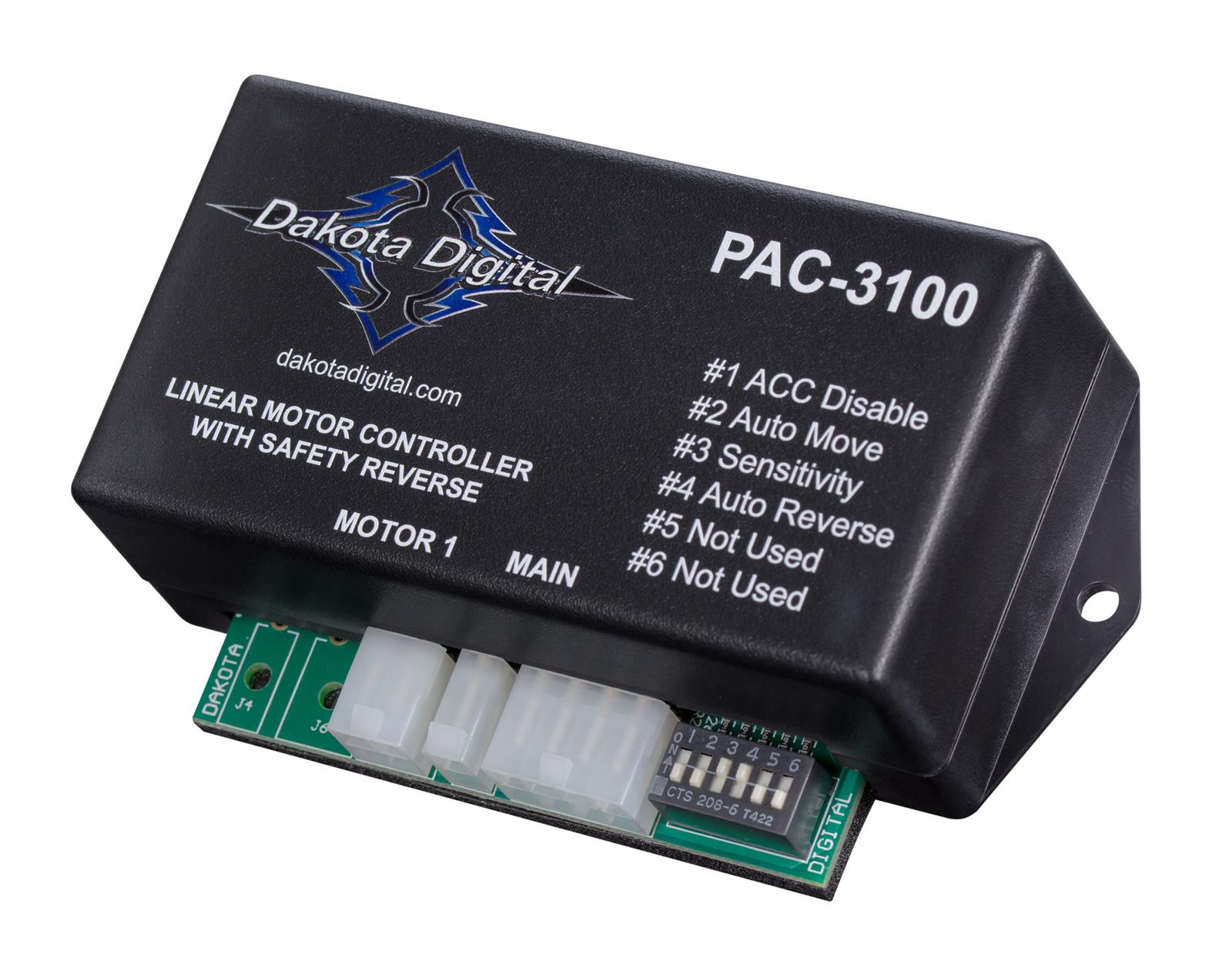

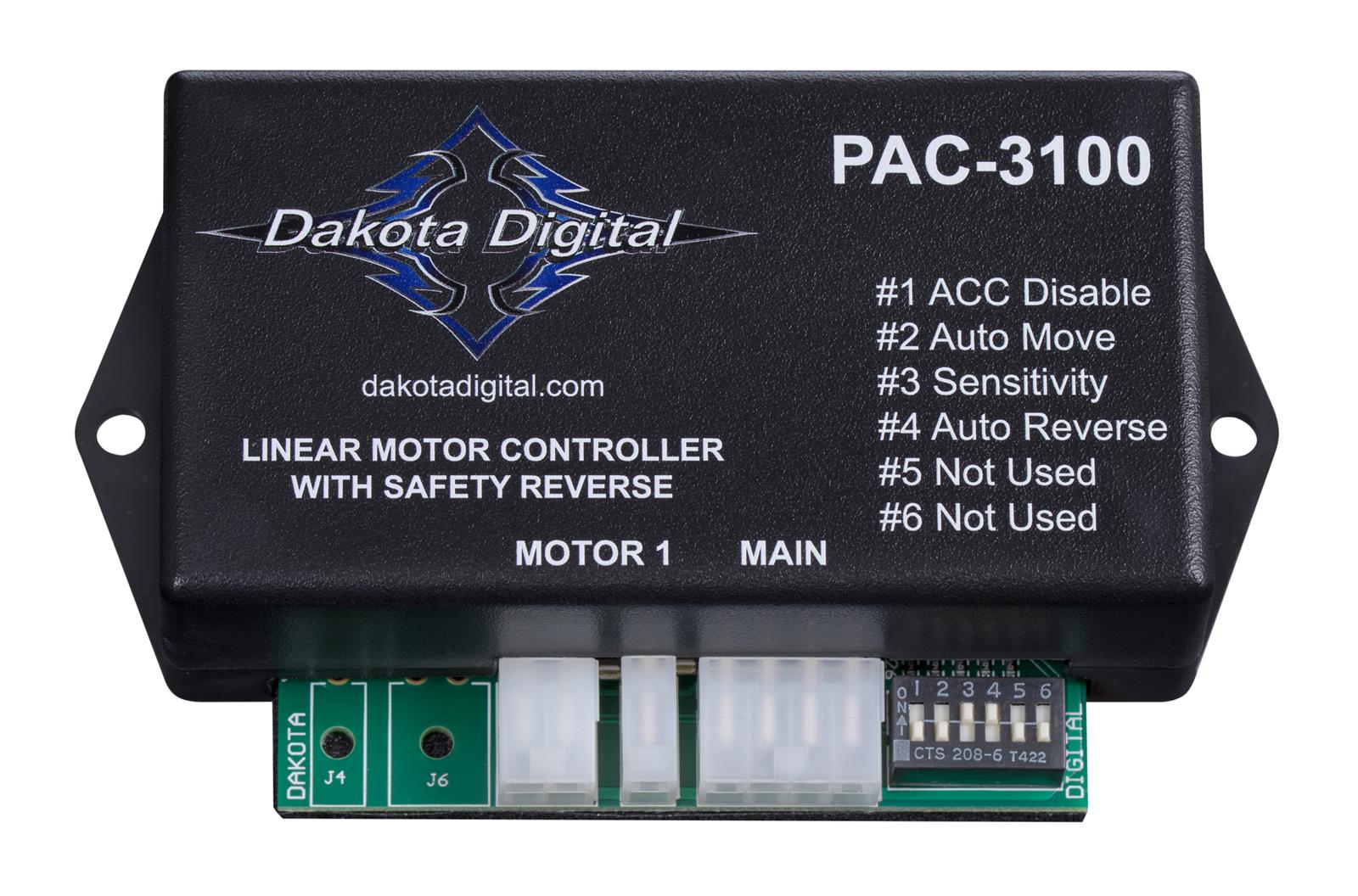

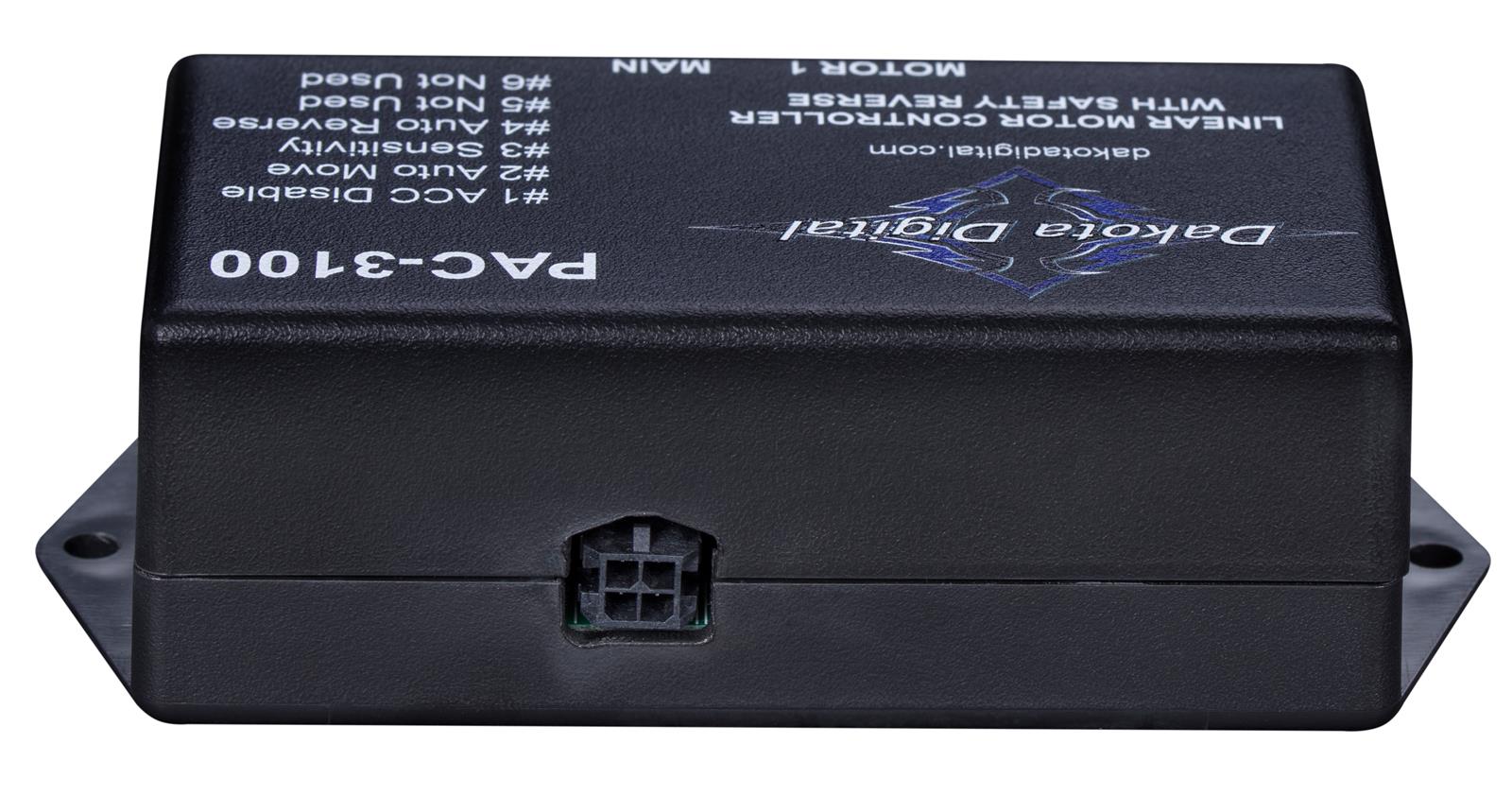

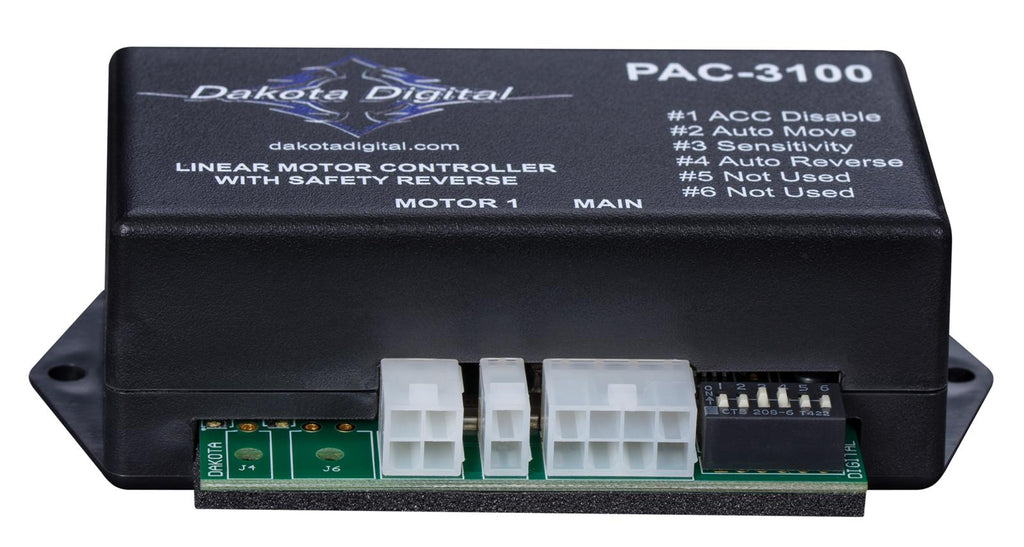

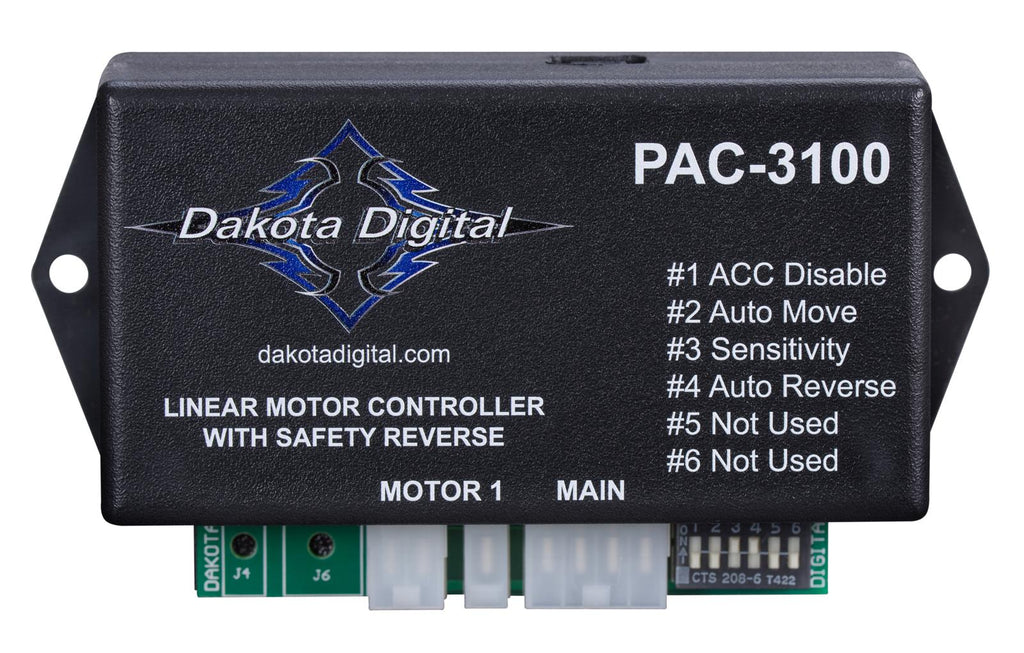

Dakota Digital Single Linear Actuator Controllers PAC-3100

Dakota Digital single linear actuator controllers are designed to control a linear motor and are intended to be used to lift trunk lids and toppers/tonneau covers. They have a safety auto-reverse feature that will stop downward travel if something would block the trunk lid. If too much current draw is detected, indicating a blocked condition, the motors will reverse and return to the previous position before they start moving down. The system can learn three user adjustable heights, so the trunk lid/tonneau covers will automatically move into desired position with the push of a button. There is also an "auto-move to position" feature that will open the trunk lid/cover when the key is turned off, and close the cover when the key is turned on.Brand: Dakota Digital
Manufacturer's Part Number: PAC-3100
Part Type: Linear Actuator Controllers
Product Line: Dakota Digital Single Linear Actuator Controllers
HP Direct Part Number: DAK-PAC-3100
UPC: 670219101029
Number of Actuators Supported: 1
Number of Channels: 6-channel
Actuator Included: No
Wiring Harness Included: Yes
Quantity: Sold individually.
Notes: For use with Dakota Digital 5-wire linear actuator. The controller will learn 3 programmable heights.
