Description

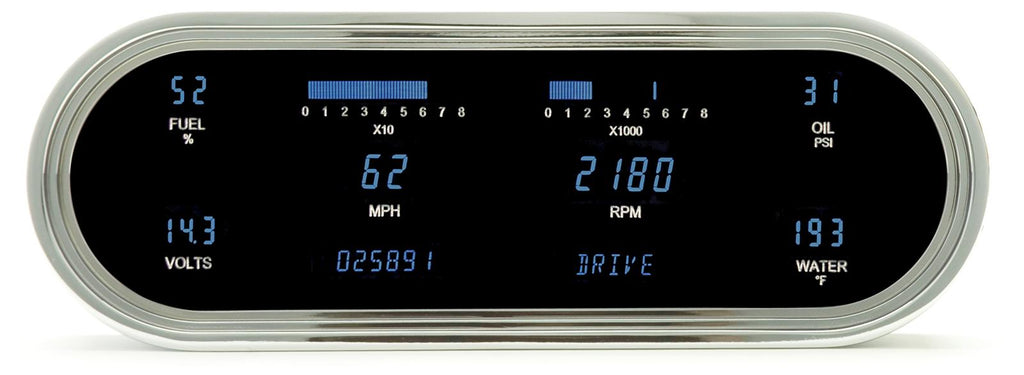

Dakota Digital offers Series III instrument systems in a variety of options.
Features:
* Display mph, rpm, oil pressure, water temperature, volts, and fuel level
* Odometer, trip odometer, resettable service odometer, and hour meter
* 0-60 mph timer, quarter-mile timer, quarter-mile speed display, high-speed recall and high-rpm recall
* Display turn signals, high beam, check engine, parking brake, cruise control, and 4x4 and wait to start (when equipped)
* Automatic transmission gear indicator, which displays the full name of the current gear (utilizing the gear position indicator will require the use of a Dakota Digital GSS-2000 or GSS-5000 sending unit)
* Demonstration mode, which cycles the instrument readouts while the vehicle is standing still
* Full metric conversions cycle between mph and kph with the press of a button
* Necessary sensors for oil pressure (1/8 in. NPT), water temperature (1/8 in. with bushings for 1/4, 3/8, and 1/2 in. NPT), and speedometer pulse generator
* Fuel level gauge can read either OEM sensor or any aftermarket style currently available
* Fully programmable speedometer for various tire sizes, rear-end gearing combinations, etc.
* Built-in dimmer to reduce the display intensity as headlights/parking lights are activated
* Fully adjustable warning points to alert the user of potential vehicle problems
Brand: Dakota Digital
Manufacturer's Part Number: VFD3-1008-T
Part Type: Gauge Kits and Instrument Clusters
Product Line: Dakota Digital Series III Instrument Systems
HP Direct Part Number: DAK-VFD31008T
UPC: 670219106031
Gauge Style: Digital
Gauge Face Color: Black
Gauge Number Color: Teal
Tachometer Included: Yes
Speedometer Included: Yes
Oil Pressure Gauge Included: Yes
Water Temperature Gauge Included: Yes
Voltage Gauge Included: Yes
Fuel Level Gauge Included: Yes
Clock Included: No
Boost Gauge Included: No
Pyrometer Included: No
Transmission Temperature Gauge Included: No
Oil Temperature Gauge Included: No
Water Pressure Gauge Included: No
Ammeter Gauge Included: No
Fuel Pressure Gauge Included: No
Brake Bias Gauge Included: No
Trim Gauge Included: No
Hour Meter Included: No
Bezel Color: Chrome
Illuminated: Yes
Warning Lights Included: Yes
Gauge Panel Included: Yes
Gauge Panel Material: Plastic
Gauge Pod Included: No
Gauge Panel Color: Black
Gauge Type Note: See application page for specific gauge and sending unit information.
Remanufactured: No
Quantity: Sold as a kit.
Notes: Gauge panel is 12.00 in. long by 4.25 in. tall.
Features:
* Display mph, rpm, oil pressure, water temperature, volts, and fuel level
* Odometer, trip odometer, resettable service odometer, and hour meter
* 0-60 mph timer, quarter-mile timer, quarter-mile speed display, high-speed recall and high-rpm recall
* Display turn signals, high beam, check engine, parking brake, cruise control, and 4x4 and wait to start (when equipped)
* Automatic transmission gear indicator, which displays the full name of the current gear (utilizing the gear position indicator will require the use of a Dakota Digital GSS-2000 or GSS-5000 sending unit)
* Demonstration mode, which cycles the instrument readouts while the vehicle is standing still
* Full metric conversions cycle between mph and kph with the press of a button
* Necessary sensors for oil pressure (1/8 in. NPT), water temperature (1/8 in. with bushings for 1/4, 3/8, and 1/2 in. NPT), and speedometer pulse generator
* Fuel level gauge can read either OEM sensor or any aftermarket style currently available
* Fully programmable speedometer for various tire sizes, rear-end gearing combinations, etc.
* Built-in dimmer to reduce the display intensity as headlights/parking lights are activated
* Fully adjustable warning points to alert the user of potential vehicle problems
Brand: Dakota Digital
Manufacturer's Part Number: VFD3-1008-T
Part Type: Gauge Kits and Instrument Clusters
Product Line: Dakota Digital Series III Instrument Systems
HP Direct Part Number: DAK-VFD31008T
UPC: 670219106031
Gauge Style: Digital
Gauge Face Color: Black
Gauge Number Color: Teal
Tachometer Included: Yes
Speedometer Included: Yes
Oil Pressure Gauge Included: Yes
Water Temperature Gauge Included: Yes
Voltage Gauge Included: Yes
Fuel Level Gauge Included: Yes
Clock Included: No
Boost Gauge Included: No
Pyrometer Included: No
Transmission Temperature Gauge Included: No
Oil Temperature Gauge Included: No
Water Pressure Gauge Included: No
Ammeter Gauge Included: No
Fuel Pressure Gauge Included: No
Brake Bias Gauge Included: No
Trim Gauge Included: No
Hour Meter Included: No
Bezel Color: Chrome
Illuminated: Yes
Warning Lights Included: Yes
Gauge Panel Included: Yes
Gauge Panel Material: Plastic
Gauge Pod Included: No
Gauge Panel Color: Black
Gauge Type Note: See application page for specific gauge and sending unit information.
Remanufactured: No
Quantity: Sold as a kit.
Notes: Gauge panel is 12.00 in. long by 4.25 in. tall.
