Description

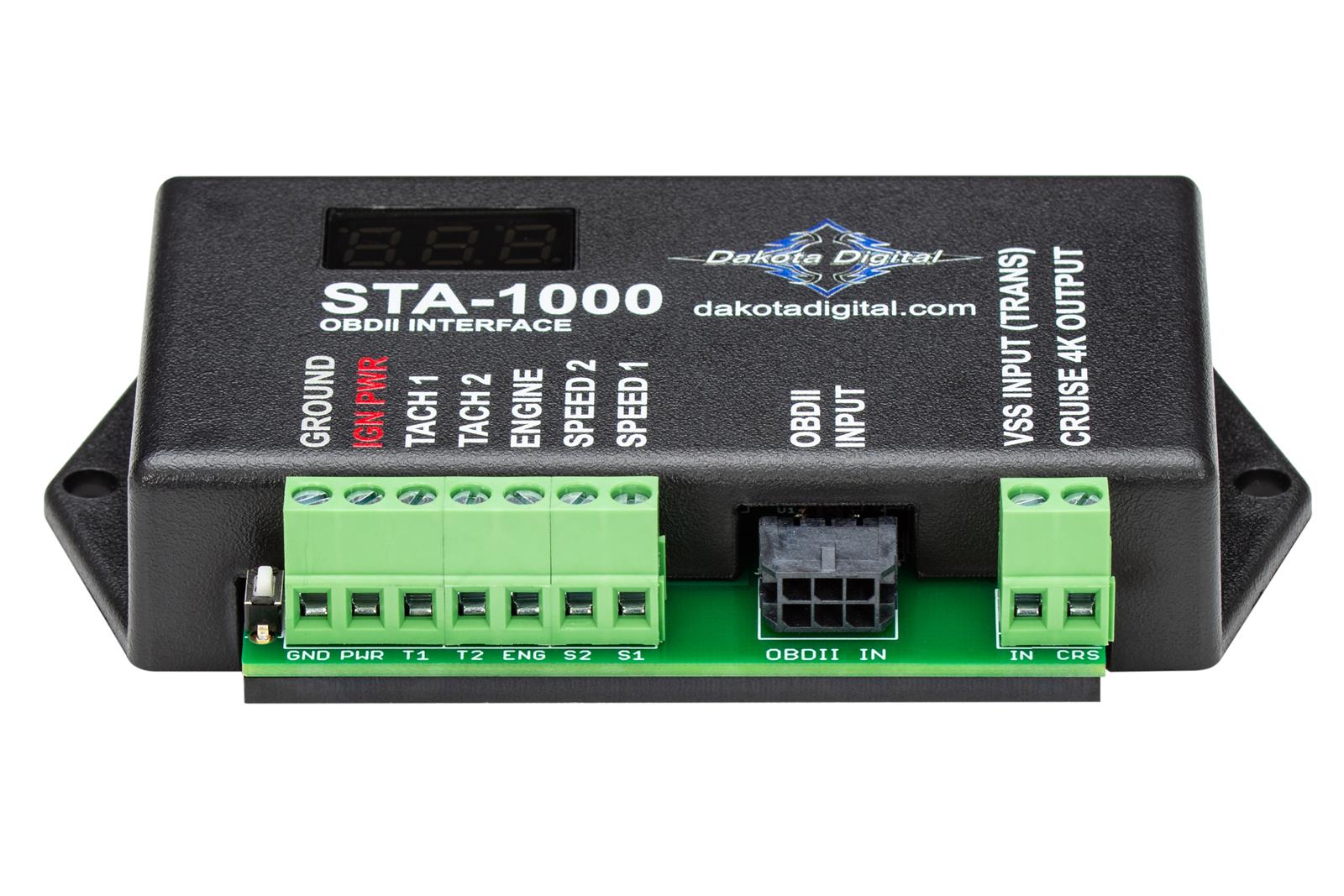

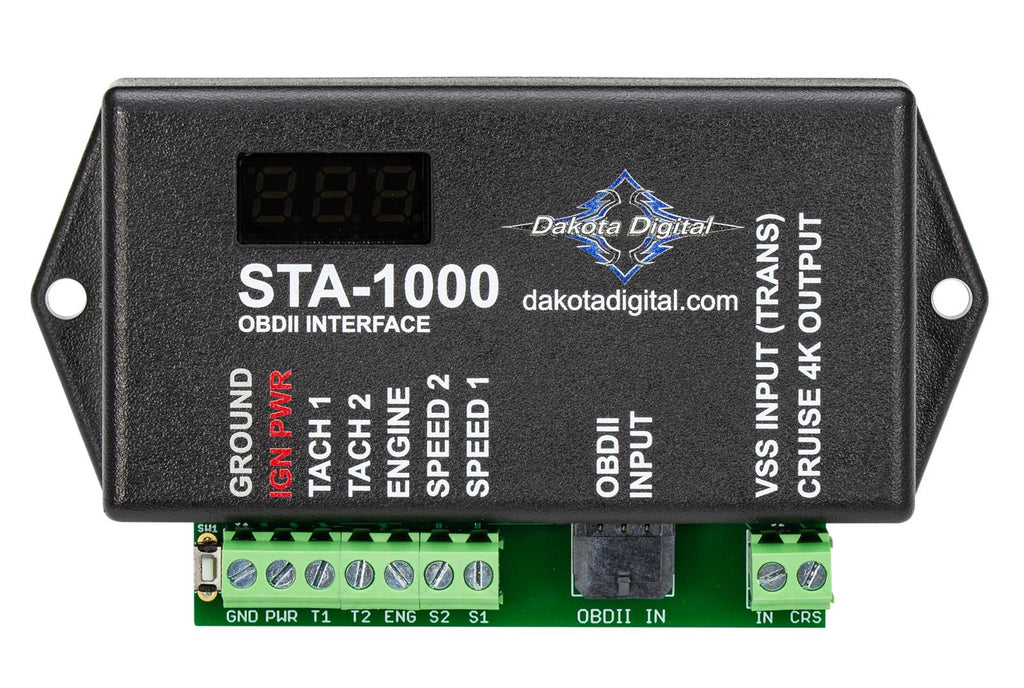

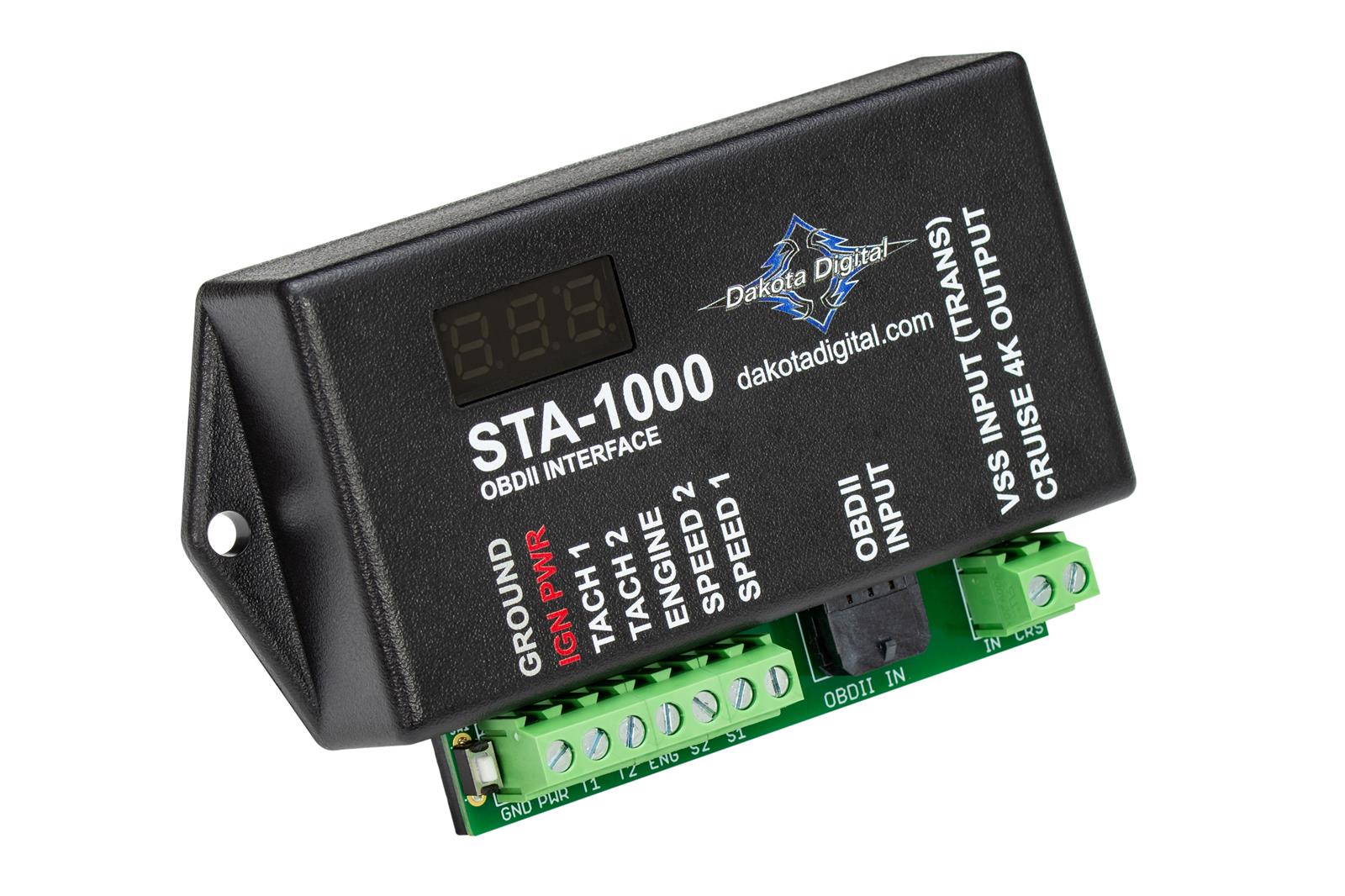

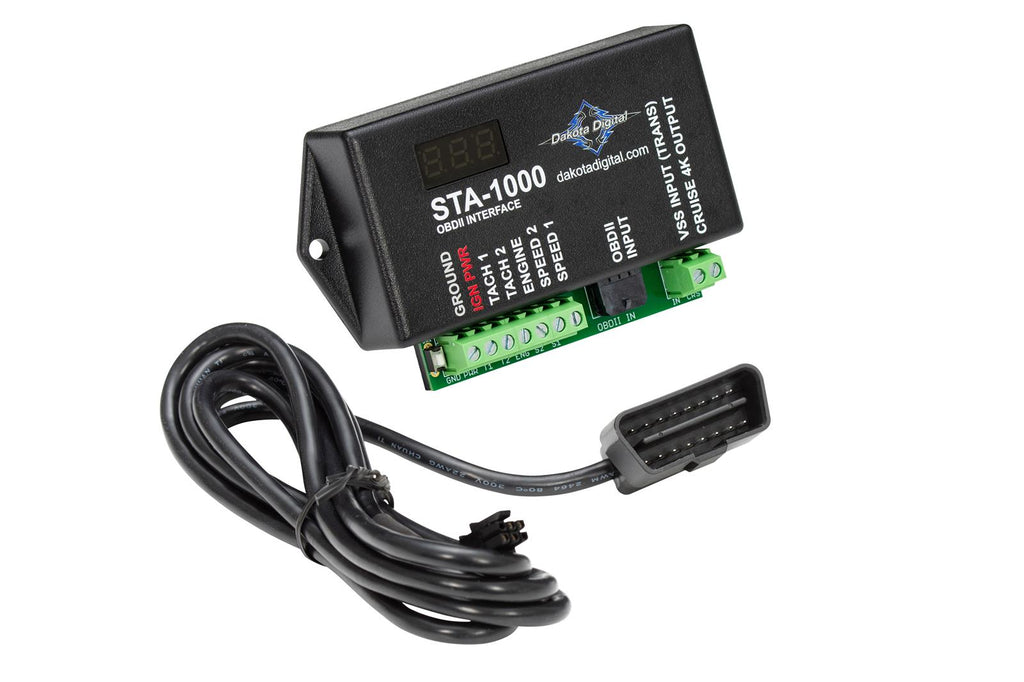

Dakota Digital OBD II tachometer/speedometer interfaces are designed to plug directly into the OBDII diagnostic connector, providing a user-adjustable traditional speedometer, tachometer and check engine output for your choice of aftermarket instruments.
Features include:
* User selectable output of: 4k, 8k, 16k PPM signals, Sine or Square wave options
* +/-35% speed signal correction, compensating for tire size or gearing changes
* Adjustable 4, 6 or 8 cylinder tachometer signal output
* Check engine light output provides a grounded (-) output to activate a check engine light of your choice
*Automatically calibrated output for an aftermarket cruise control can be activated by making connection to the higher-resolution fixed VSS sensorBrand: Dakota Digital
Manufacturer's Part Number: STA-1000
Part Type: Speedometer Control Units
Product Line: Dakota Digital OBD II Tachometer/Speedometer Interfaces
HP Direct Part Number: DAK-STA-1000
UPC: 670219105454
Wiring Harness Included: No
Wire Connectors Included: No
Quantity: Sold individually.
Features include:
* User selectable output of: 4k, 8k, 16k PPM signals, Sine or Square wave options
* +/-35% speed signal correction, compensating for tire size or gearing changes
* Adjustable 4, 6 or 8 cylinder tachometer signal output
* Check engine light output provides a grounded (-) output to activate a check engine light of your choice
*Automatically calibrated output for an aftermarket cruise control can be activated by making connection to the higher-resolution fixed VSS sensorBrand: Dakota Digital
Manufacturer's Part Number: STA-1000
Part Type: Speedometer Control Units
Product Line: Dakota Digital OBD II Tachometer/Speedometer Interfaces
HP Direct Part Number: DAK-STA-1000
UPC: 670219105454
Wiring Harness Included: No
Wire Connectors Included: No
Quantity: Sold individually.
