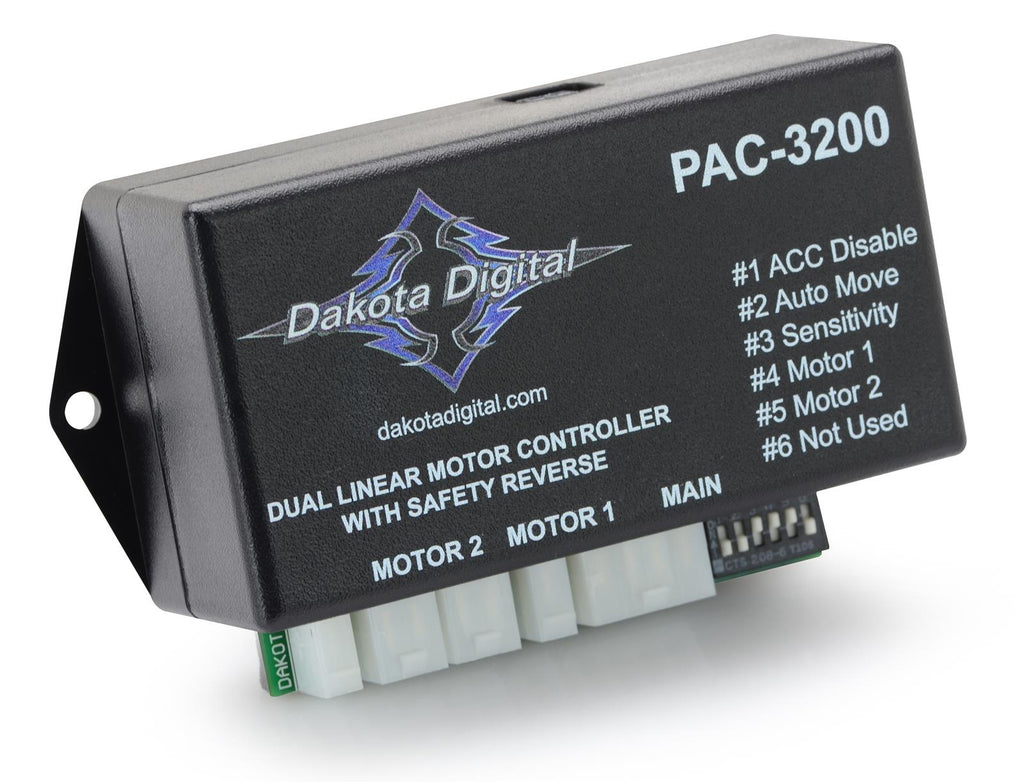

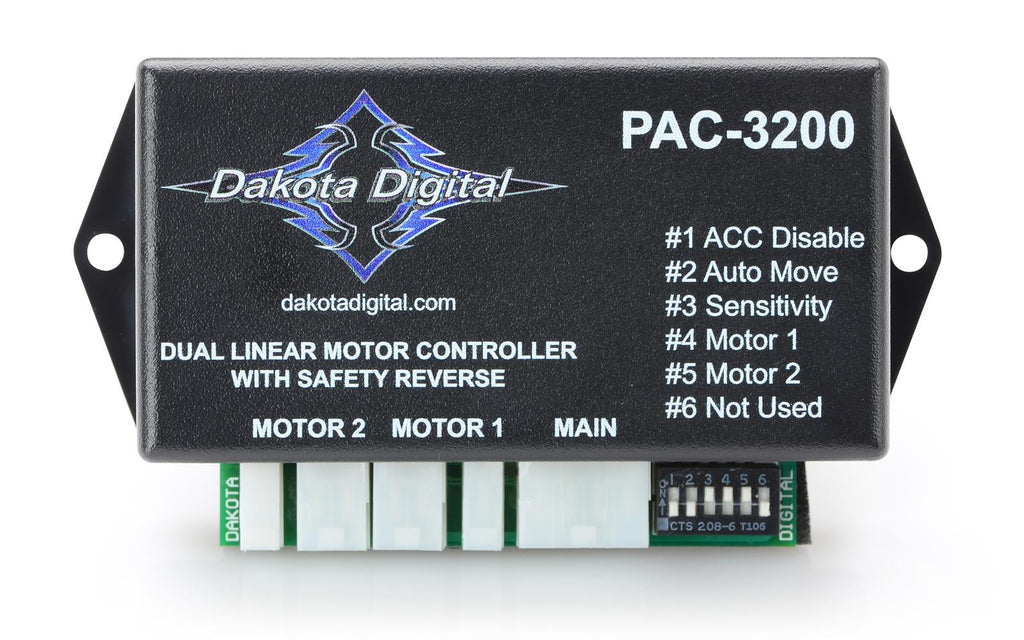

Dakota Digital Dual Linear Actuator Controllers PAC-3200

Dakota Digital dual linear actuator controllers are designed to control two linear motors at the same time. They are intended to be used to lift heavier trunk lids and toppers/tonneau covers that require more than one motor. These actuator controllers have a safety auto-reverse feature that will stop downward travel if something would block the trunk lid. If too much current draw is detected, indicating a blocked condition, the motors will reverse and return to the previous position before they started moving down. The system can learn three user programmable heights, so trunk lid/cover will automatically move to a desired position with the push of a button. There is also an "auto-move to position" feature that will open the trunk lid/cover when the key is turned off, and close the lid/cover when the key is turned on.Brand: Dakota Digital
Manufacturer's Part Number: PAC-3200
Part Type: Linear Actuator Controllers
Product Line: Dakota Digital Dual Linear Actuator Controllers
HP Direct Part Number: DAK-PAC-3200
UPC: 670219101067
Number of Actuators Supported: 2
Number of Channels: 6-channel
Actuator Included: No
Wiring Harness Included: Yes
Quantity: Sold individually.
Notes: For use with Dakota Digital 5-wire linear actuators only. The controller will learn 3 programmable heights.
