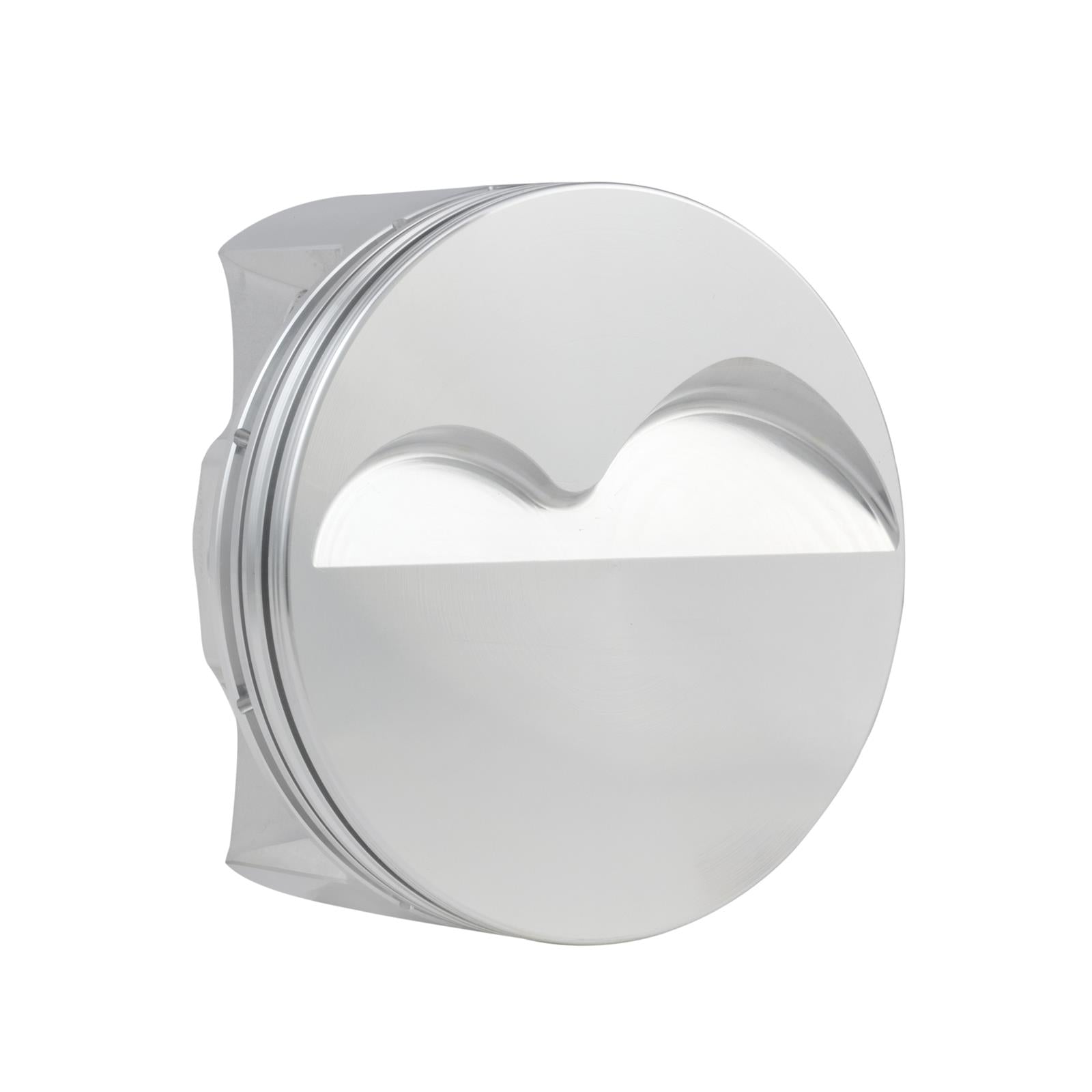

CP Pistons Volkswagen Piston and Ring Kits SC7621

CP-Carrillo Pistons offers piston and ring kits for a variety of European and vintage cars, including many Volkswagen and Audi models from the 1990s and up. Most of the pistons are forged aluminum for additional strength, durability, and weight reduction—engineered for maximum power. Dish-style pistons are available with one or two relief valves. Order the size options recommended for your engine application.

Standard features:

* Deep valve reliefs to accommodate high lift camshafts
* Large valve reliefs for +1mm valve sizes
* Custom skirt cam and barrel design
* Accumulator grooves
* High performance rings
* Fully CNC-machined and balanced to +/- 1 gram
* Wrist pins included
* Double pin oilers force-fed from oil ring groove
* Pin lock grooves for easy lock removal
* Pin fitting included
Brand: CP-Carrillo
Manufacturer's Part Number: SC7621
Part Type: Pistons
Product Line: CP Pistons Volkswagen Piston and Ring Kits
HP Direct Part Number: CNN-SC7621
Piston Rings Included: Yes
Bore (in.): 3.268 in.
Bore (mm): 83.000mm
Stroke: 92.80mm
Engine Stroke Type: Stock
Rod Length: 144.000mm
Piston Style: Dish, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.165 in.
Piston Head Volume (cc): -11.70cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.787 in.
Piston Ring Thickness: 1.00mm x 1.20mm x 2.80mm
File Fit: No
Gapless: No
Top Ring Thickness: 1.0mm
Top Ring Material: Steel
Top Ring Facing Material: Gas nitrided
Second Ring Thickness: 1.2mm
Second Ring Material: Cast iron
Second Ring Facing Material: Cast iron
Oil Ring Thickness: 2.8mm
Oil Ring Material: Carbon steel
Oil Ring Facing Material: Nitride
Oil Ring Tension: Low
Remanufactured: No
Quantity: Sold individually.
Notes: Designed for the 2.0L TFSI engines. Can be used in turbo, supercharger, and nitrous applications.
