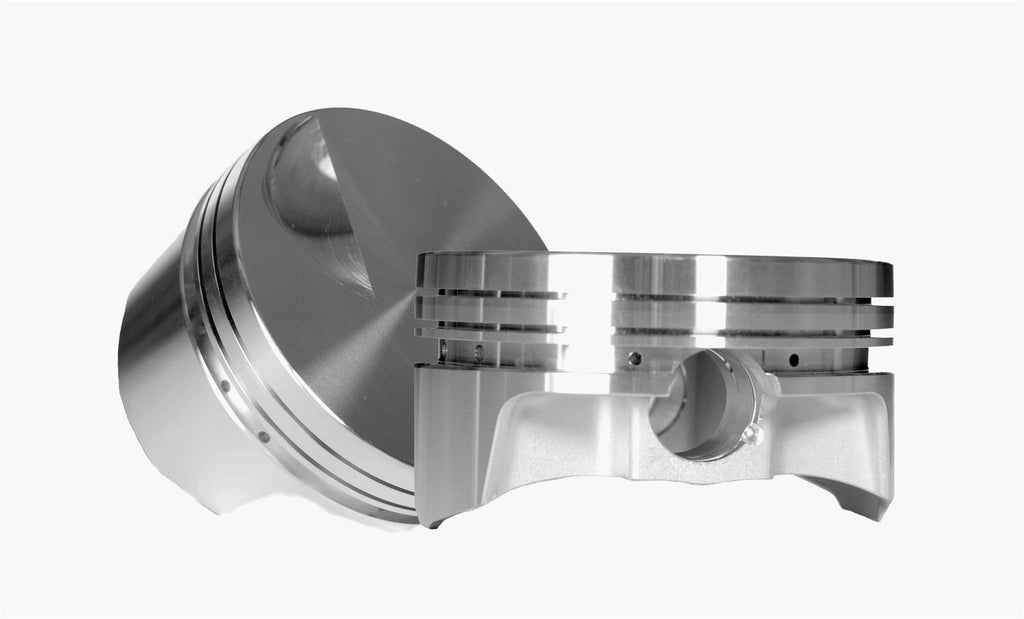

CP Pistons Toyota Piston and Ring Kits SC7452

CP Pistons Toyota piston and ring kits aren't just any piston and ring kits. No, they're a blending of creativity, experience, and proven technology, making them the best pistons for your application. These high-strength forged aluminum pistons are CNC-machined and balanced to within +/- 1 gram, ensuring that all of your pistons are created equal. Toyota pistons have custom skirt cam and barrel designs to optimize maximum performance for your application. CP pistons have full radiused dome designs with deep valve reliefs, making them compatible with oversized valves and higher lift cams. With their high performance rings and accumulator grooves, lightweight pins, and double pin oilers, these are not your ordinary pistons--they're engineered for ultimate power in your sport compact.Brand: CP-Carrillo
Manufacturer's Part Number: SC7452
Part Type: Pistons
Product Line: CP Pistons Toyota Piston and Ring Kits
HP Direct Part Number: CNN-SC7452
Piston Rings Included: Yes
Bore (in.): 3.406 in.
Bore (mm): 86.500mm
Stroke: 90.93mm
Rod Length: 138.000mm
Piston Style: Dish, with four valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.275 in.
Piston Head Volume (cc): +8.80cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.866 in.
File Fit: No
Gapless: No
Top Ring Thickness: 1.2mm
Top Ring Material: Steel
Second Ring Thickness: 1.5mm
Second Ring Material: Cast iron
Oil Ring Thickness: 3.0mm
Remanufactured: No
Quantity: Sold individually.
Notes: Can be used in turbo, supercharger, or nitrous applications.
