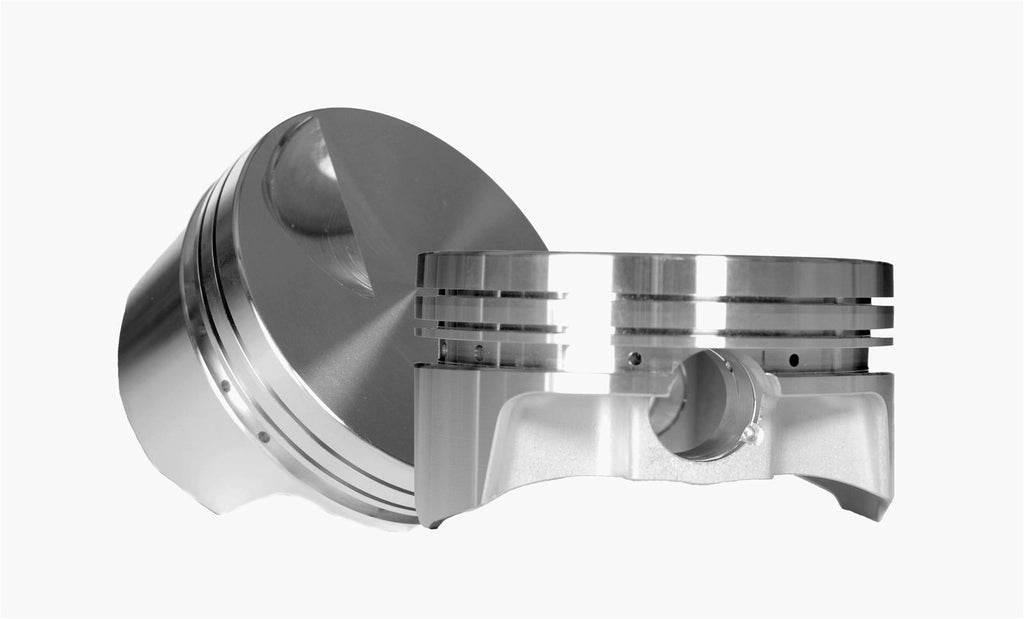

CP Pistons Super Series Big Block Chevy Dome Pistons SS5414

CP Pistons Super Series big block Chevy dome pistons are as good as they come. Founded to service the needs of those with the desire to build engines of the highest quality and technology., CP Pistons uses proprietary tooling, dedicated cutters, unique fixtures, and state-of-the-art equipment to produce superior pistons that will not compromise your expectations. Their climate-controlled inspection department is the most advanced in the industry and is outfitted with computerized electronic equipment specifically designed for their needs. Each piston is engineered using sophisticated computer modeling for optimum designs, while their 5-axis machining capability enables them to create pistons for any application.

Additional features include:

* Pin-fitting included at no cost
* Wrist pins included at no cost
* Radius dome and valve relief
* Double pin oilers, force fed from oil ring
* Balanced to +/-1 gram
* Accumulator and anti-detonation grooves included
* Pick lock grooves for easy lock removal
* Custom skirt cam and barrel shapes
* Fully CNC-machinedBrand: CP-Carrillo
Manufacturer's Part Number: SS5414
Part Type: Pistons
Product Line: CP Pistons Super Series Big Block Chevy Dome Pistons
HP Direct Part Number: CNN-SS5414
Piston Rings Included: No
Bore (in.): 4.600 in.
Bore (mm): 116.840mm
Stroke: 4.250 in.
Engine Stroke Type: Stroked
Rod Length: 6.385 in.
Piston Style: Dome, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.270 in.
Dome Height (in.): 0.590 in.
Piston Head Volume (cc): -46.00cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: No
Wrist Pin Included: Yes
Pin Diameter (in.): 0.990 in.
Piston Ring Thickness: 0.043 in. x 0.043 in. x 3.00mm
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold individually.
Notes: Pistons are for large bore aftermarket blocks. Supplied with double spiral locks.
