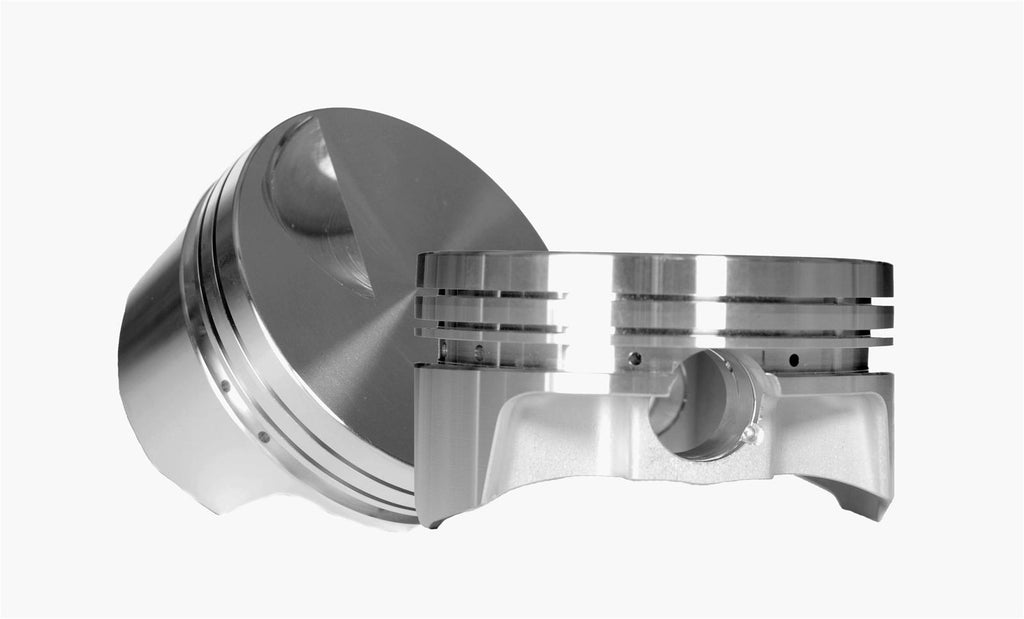

CP Pistons SB2.2 Dome with Gas Port Pistons S2524

CP Pistons SB2.2 dome with gas port pistons are as good as they come. Founded to service the needs of those with the desire to build engines of the highest quality and technology, CP Pistons uses proprietary tooling, dedicated cutters, unique fixtures, and their state-of-the-art equipment to produce superior pistons that will not compromise your expectations. Their climate-controlled inspection department is the most advanced in the industry and is outfitted with computerized electronic equipment specifically designed for their needs. Each piston is engineered using sophisticated computer modeling for optimum designs, while their 5-axis machining capability enables them to create any piston for any application.

Additional features include:

* Dedicated right and left forgings
* Pin-fitting included at no cost
* Chamfered pins and wire locks included
* Accumulator and anti-detonation grooves included
* Double pin oilers, force fed from oil ring
* Radius dome and valve relief
* May be cut to a flat top
* Balanced to +/-1 gram
* Pick lock grooves for easy lock removal
* Designed for backcut rings
* Custom skirt cam and barrel shapes
* Fully CNC-machinedBrand: CP-Carrillo
Manufacturer's Part Number: S2524
Part Type: Pistons
Product Line: CP Pistons SB2.2 Dome with Gas Port Pistons
HP Direct Part Number: CNN-S2524
Piston Rings Included: No
Bore (in.): 4.145 in.
Bore (mm): 105.283mm
Stroke: 3.800 in.
Engine Stroke Type: Stroked
Rod Length: 6.000 in.
Piston Style: Dome, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.100 in.
Dome Height (in.): 0.170 in.
Piston Head Volume (cc): -1.10cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: No
Wrist Pin Included: Yes
Pin Diameter (in.): 0.927 in.
Piston Ring Thickness: 1.50mm x 1.50mm x 3.00mm
File Fit: No
Gapless: No
Remanufactured: No
Quantity: Sold individually.
Notes: Rail supports included. Supplied with wire locks.
