CP Pistons M Piston Kits M9007

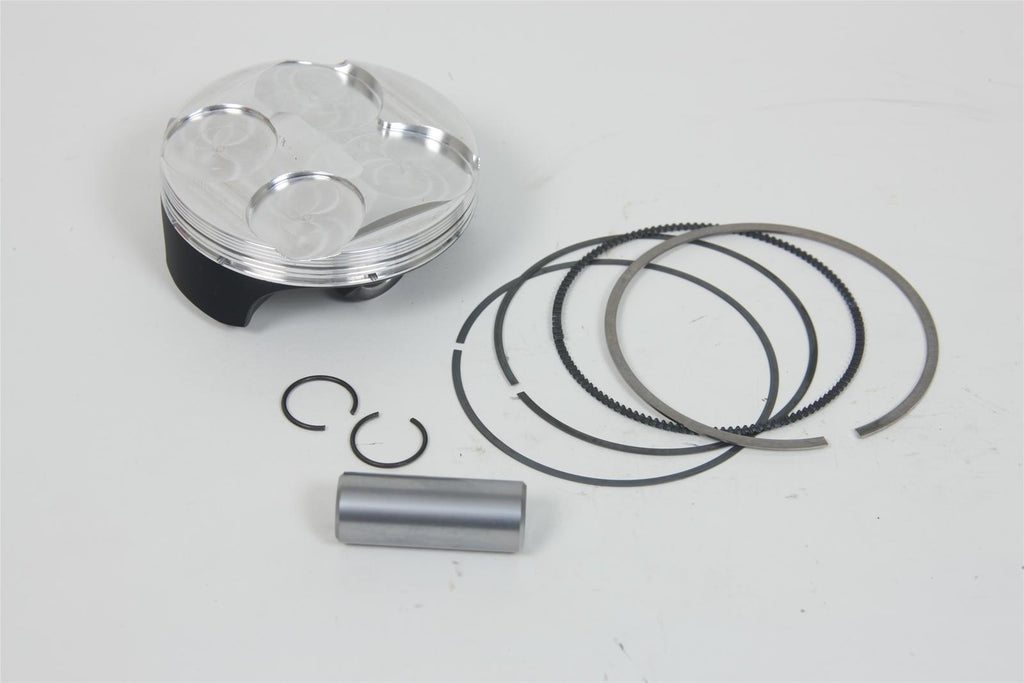

CP Piston M piston kits are available for your powersports applications. These kits include the piston, pin, locks, and rings. CP Pistons use X-forgings to minimize friction and weight without compromising strength. Double pin oilers add twice the amount of oil from the cylinder wall to the wrist pin. Radiused domes are used to maximize quench, while eliminating possible hot spots that promote detonation. CP Piston M piston kits have a V-shaped groove machined into the second ring to collect excess blowby between the top and second rings. This groove is known as the accumulator groove.Brand: CP-Carrillo
Manufacturer's Part Number: M9007
Part Type: Powersports Piston and Ring Kits
Product Line: CP Pistons M Piston Kits
HP Direct Part Number: CPD-M9007
Piston Material: Forged aluminum
Bore (mm): 97.000mm
Stroke: 60.80mm
Wrist Pin Style: Floating
Wrist Pin Retainers Included: Yes
Top Ring Material: Steel
Top Ring Facing Material: Gas nitrided
Second Ring Material: Cast iron
Second Ring Facing Material: Cast iron
Oil Ring Material: Stainless steel
Oil Ring Facing Material: Nitride
File Fit: No
Gapless: No
Gaskets Included: No
Quantity: Sold as a kit.
