Description

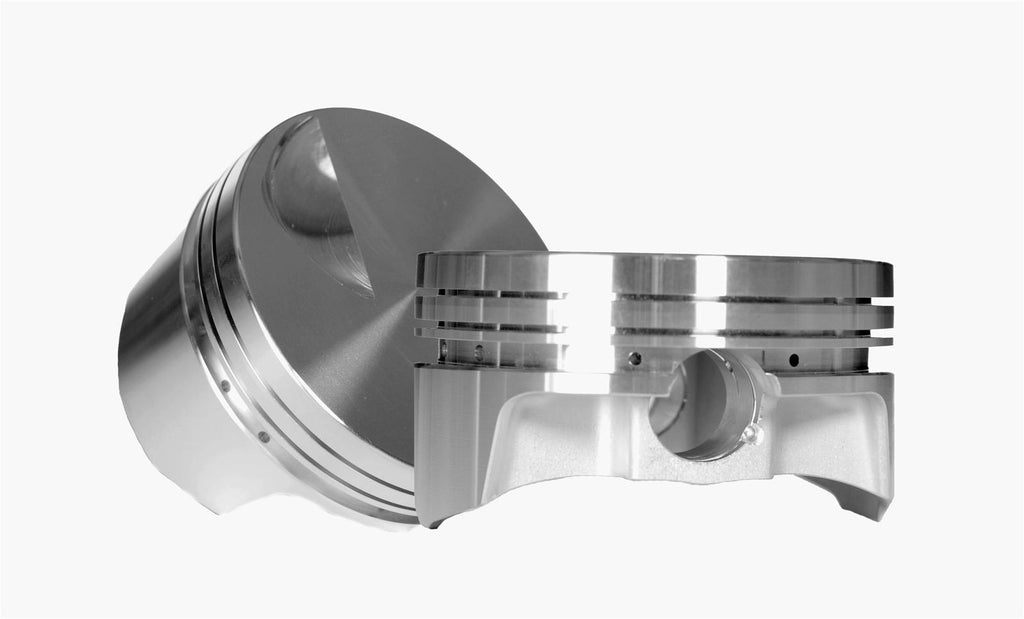

CP Pistons Honda H-Series piston and ring kits are as good as they come. Founded to service the needs of those with the desire to build engines of the highest quality and technology, CP Pistons uses proprietary tooling, dedicated cutters, and unique fixtures. Their state-of-the-art equipment produces superior pistons that will not compromise your expectations. The climate-controlled inspection department is the most advanced in the industry and is outfitted with computerized electronic equipment specifically designed for their needs. Each piston is engineered using sophisticated computer modeling for optimum designs, while their 5-axis machining capability enables them to create pistons for any application.
Additional features include:
* Full radius dome designs
* Some pistons are suitable for turbo, nitrous oxide, and supercharged engines
* Specific X-designated part numbers incorporate an X-style forging for additional strength, durability, and weight reduction
* Available in standard or oversized
* Deep valve relief depth accommodates high-lift camshaft
* Made for +1mm valve sizes
* Custom skirt cam and barrel design
* Accumulator grooves
* High-strength aluminum forgings
* High performance rings
* Fully CNC-machined and balanced to +/-1 gram
* Wrist pins included at no additional cost
* Double pin oilers, force fed oil ring
* Pick lock grooves for easy lock removal
* Pin fitting includedBrand: CP-Carrillo
Manufacturer's Part Number: SC7035-4
Part Type: Pistons
Product Line: CP Pistons Honda H-Series Piston and Ring Kits
HP Direct Part Number: CNN-SC7035-4
Piston Rings Included: Yes
Bore (in.): 3.504 in.
Bore (mm): 89.000mm
Stroke: 90.70mm
Rod Length: 143.150mm
Piston Style: Dish, with four valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.220 in.
Piston Head Volume (cc): +9.90cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.866 in.
File Fit: No
Gapless: No
Top Ring Thickness: 1.0mm
Top Ring Material: Steel
Second Ring Thickness: 1.2mm
Second Ring Material: Cast iron
Oil Ring Thickness: 2.8mm
Remanufactured: No
Quantity: Sold as a set of 4.
Notes: Can be used in turbo, supercharger, and nitrous applications. Must sleeve block.
Additional features include:
* Full radius dome designs
* Some pistons are suitable for turbo, nitrous oxide, and supercharged engines
* Specific X-designated part numbers incorporate an X-style forging for additional strength, durability, and weight reduction
* Available in standard or oversized
* Deep valve relief depth accommodates high-lift camshaft
* Made for +1mm valve sizes
* Custom skirt cam and barrel design
* Accumulator grooves
* High-strength aluminum forgings
* High performance rings
* Fully CNC-machined and balanced to +/-1 gram
* Wrist pins included at no additional cost
* Double pin oilers, force fed oil ring
* Pick lock grooves for easy lock removal
* Pin fitting includedBrand: CP-Carrillo
Manufacturer's Part Number: SC7035-4
Part Type: Pistons
Product Line: CP Pistons Honda H-Series Piston and Ring Kits
HP Direct Part Number: CNN-SC7035-4
Piston Rings Included: Yes
Bore (in.): 3.504 in.
Bore (mm): 89.000mm
Stroke: 90.70mm
Rod Length: 143.150mm
Piston Style: Dish, with four valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.220 in.
Piston Head Volume (cc): +9.90cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.866 in.
File Fit: No
Gapless: No
Top Ring Thickness: 1.0mm
Top Ring Material: Steel
Second Ring Thickness: 1.2mm
Second Ring Material: Cast iron
Oil Ring Thickness: 2.8mm
Remanufactured: No
Quantity: Sold as a set of 4.
Notes: Can be used in turbo, supercharger, and nitrous applications. Must sleeve block.
