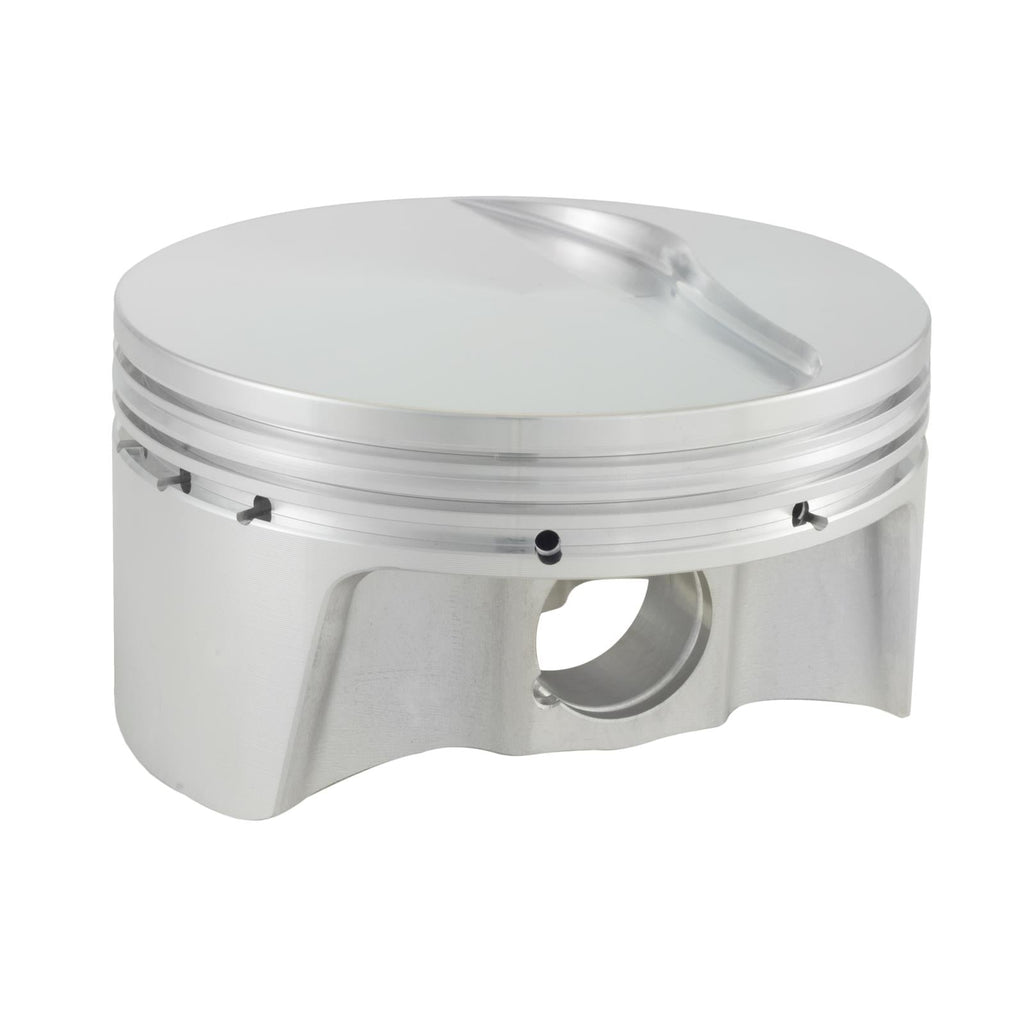

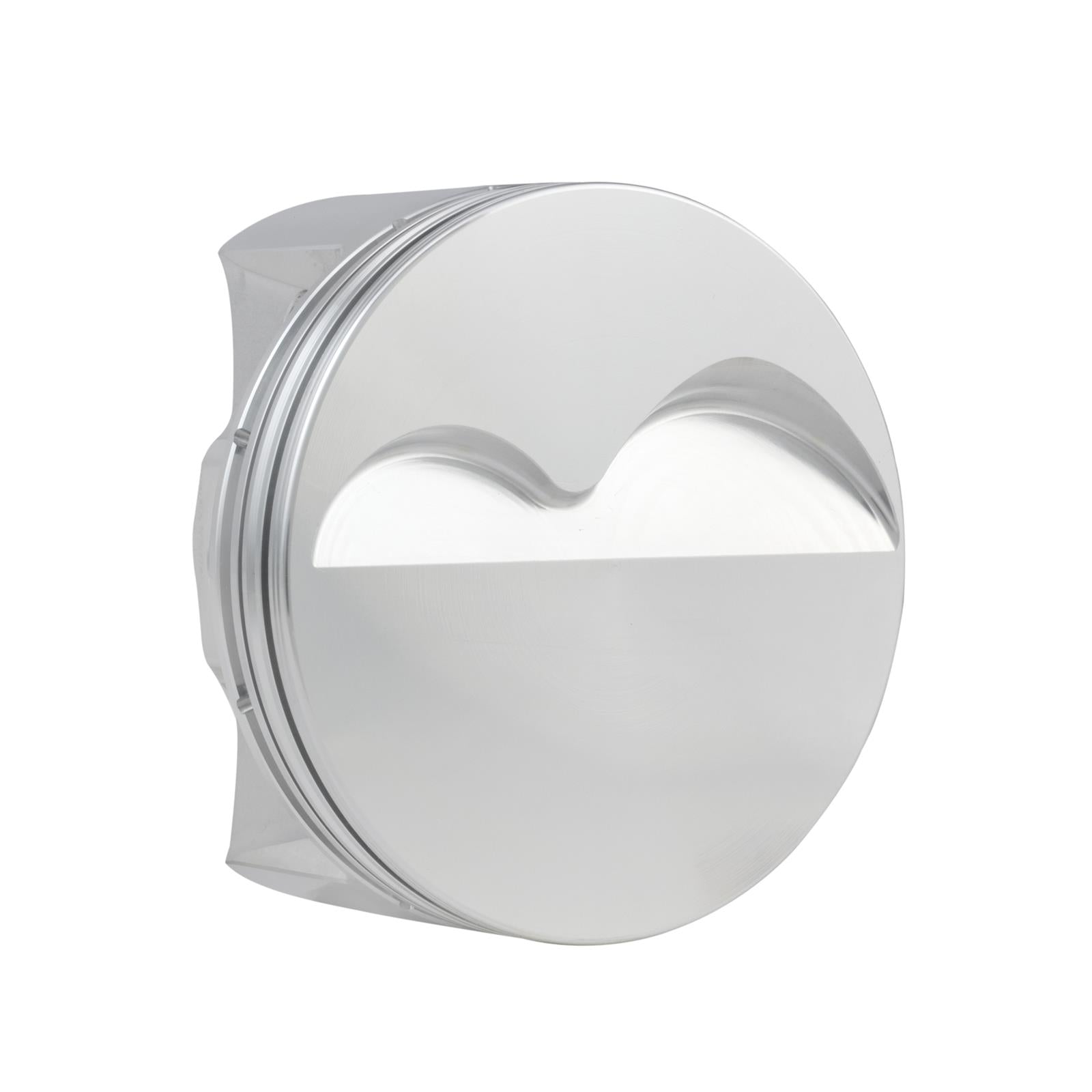

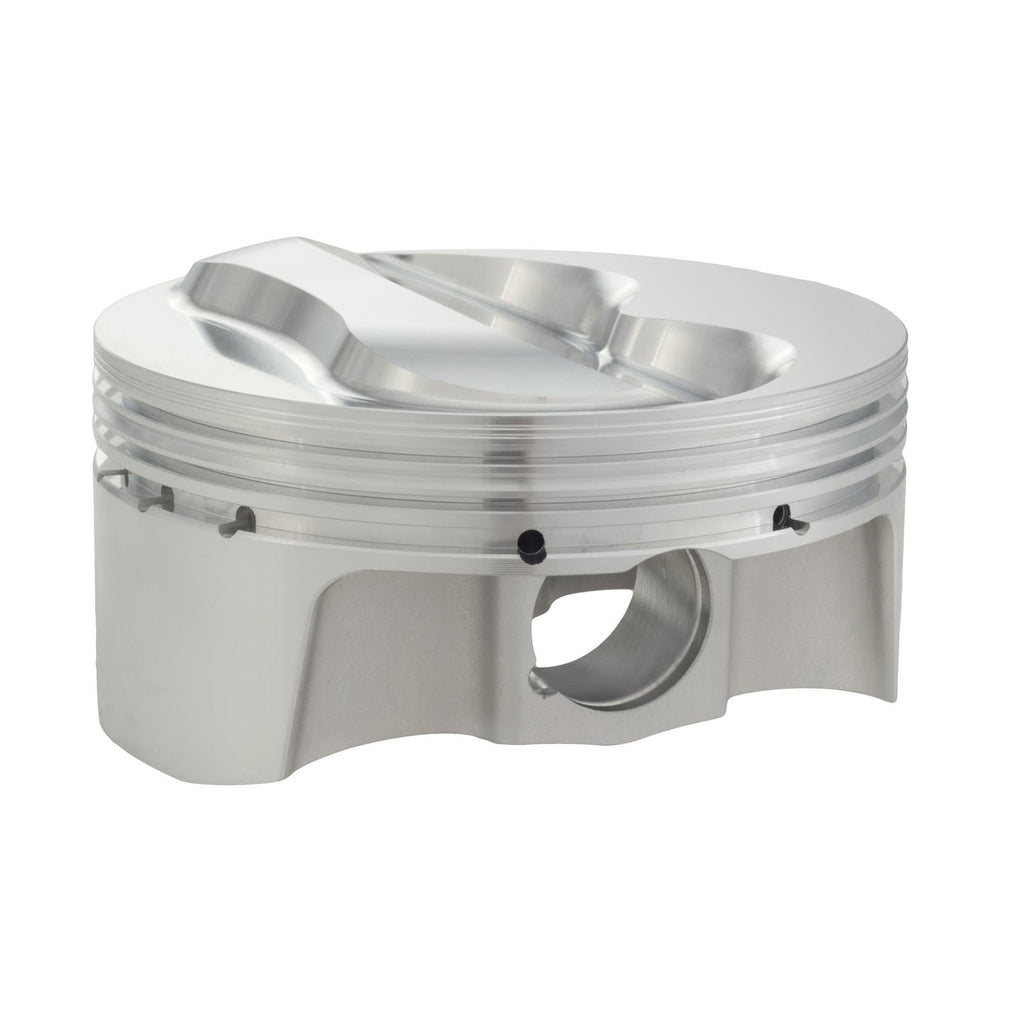

CP Pistons Ford Eco-Boost Piston and Ring Kits SC7530-6

CP-Carrillo offers piston and ring kits for a variety of sport compact vehicles, including Ford Eco-Boost cars with 4- or 6-cylinder 2.0L, 2.3L, and 3.5L engines. Forged from aluminum for additional strength, durability, and weight reduction, CP pistons represent the highest quality and are engineered for maximum power. They're compatible with turbo, supercharger, and/or nitrous applications.

Standard features include:

* Deep valve reliefs accommodate high lift camshafts
* Larger valve reliefs for +1mm valve sizes
* Custom skirt cam and barrel design
* Accumulator grooves
* High performance rings
* Fully CNC-machined and balanced to +/- gram; wrist pins included
* Double pin oilers force fed from oil ring groove
* Pin lock grooves for easy lock removal
* Pin fitting included


Brand: CP-Carrillo
Manufacturer's Part Number: SC7530-6
Part Type: Pistons
Product Line: CP Pistons Ford Eco-Boost Piston and Ring Kits
HP Direct Part Number: CNN-SC7530-6
Piston Rings Included: Yes
Bore (in.): 3.642 in.
Bore (mm): 92.500mm
Stroke: 86.70mm
Engine Stroke Type: Stock
Rod Length: 152.700mm
Piston Style: Dome, with two valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.240 in.
Dome Height (in.): 0.083 in.
Piston Head Volume (cc): -1.65cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.905 in.
Piston Ring Thickness: 1.00mm x 1.20mm x 2.80mm
File Fit: No
Gapless: No
Top Ring Thickness: 1.0mm
Top Ring Material: Steel
Top Ring Facing Material: Gas nitrided
Second Ring Thickness: 1.2mm
Second Ring Material: Cast iron
Second Ring Facing Material: Cast iron
Oil Ring Thickness: 2.8mm
Oil Ring Material: Carbon steel
Oil Ring Facing Material: Nitride
Oil Ring Tension: Low
Remanufactured: No
Quantity: Sold as a set of 6.
Notes: For use in models with Prince engine.
