Description

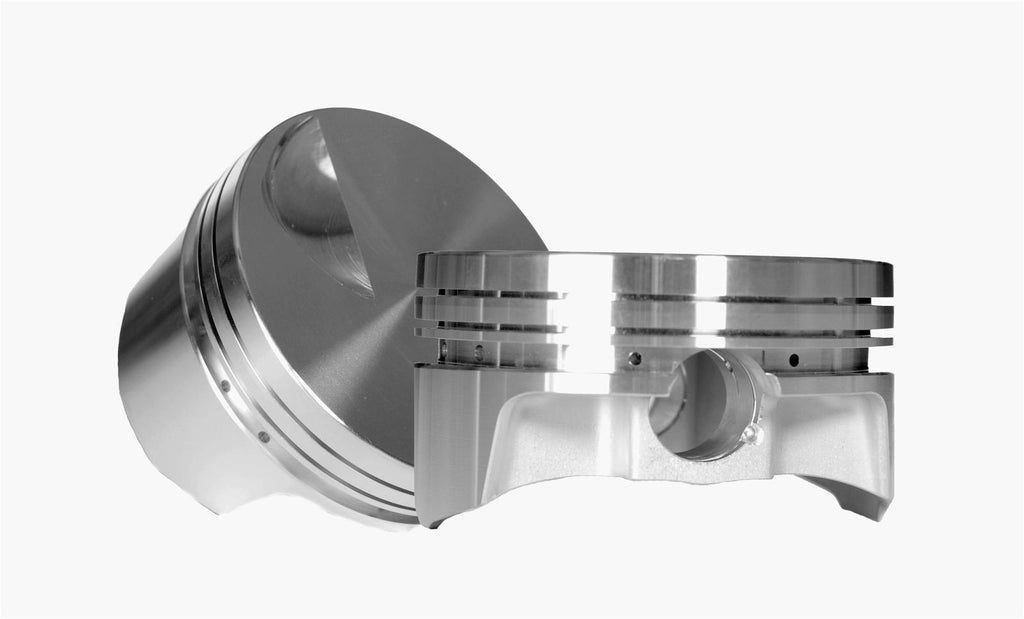

CP Pistons Ford Duratec piston and ring kits are as good as they come. CP Pistons was founded to service the needs of those with the desire to build engines of the highest quality and technology. Their use of proprietary tooling, dedicated cutters, and unique fixtures, and other state-of-the-art equipment , produces superior pistons that will not compromise your expectations. Their climate-controlled inspection department is the most advanced in the industry and is outfitted with computerized electronic equipment specifically designed for their needs. Pistons are engineered using sophisticated computer modeling for optimum designs, while their 5-axis machining capability enables them to create any piston for any application.
Additional features include:
* Available in standard or oversized
* Deep valve relief depth accommodates high-lift camshaft
* Made for +1mm valve sizes
* Custom skirt cam and barrel design
* Accumulator grooves
* High-strength aluminum forgings
* High performance rings
* Fully CNC-machined and balanced to +/-1 gram
* Wrist pins included at no additional cost
* Double pin oilers, force fed oil ring
* Pick lock grooves for easy lock removal
* Pin fitting includedBrand: CP-Carrillo
Manufacturer's Part Number: SC7523-4
Part Type: Pistons
Product Line: CP Pistons Ford Duratec Piston and Ring Kits
HP Direct Part Number: CNN-SC7523-4
Piston Rings Included: Yes
Bore (in.): 3.465 in.
Bore (mm): 88.000mm
Stroke: 94.00mm
Rod Length: 154.790mm
Piston Style: Dish, with no valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.122 in.
Piston Head Volume (cc): +26.80cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.827 in.
File Fit: No
Gapless: No
Top Ring Thickness: 1.0mm
Top Ring Material: Steel
Second Ring Thickness: 1.2mm
Second Ring Material: Cast iron
Oil Ring Thickness: 2.8mm
Remanufactured: No
Quantity: Sold as a set of 4.
Notes: Can be used in turbo, supercharger, and nitrous applications.
Additional features include:
* Available in standard or oversized
* Deep valve relief depth accommodates high-lift camshaft
* Made for +1mm valve sizes
* Custom skirt cam and barrel design
* Accumulator grooves
* High-strength aluminum forgings
* High performance rings
* Fully CNC-machined and balanced to +/-1 gram
* Wrist pins included at no additional cost
* Double pin oilers, force fed oil ring
* Pick lock grooves for easy lock removal
* Pin fitting includedBrand: CP-Carrillo
Manufacturer's Part Number: SC7523-4
Part Type: Pistons
Product Line: CP Pistons Ford Duratec Piston and Ring Kits
HP Direct Part Number: CNN-SC7523-4
Piston Rings Included: Yes
Bore (in.): 3.465 in.
Bore (mm): 88.000mm
Stroke: 94.00mm
Rod Length: 154.790mm
Piston Style: Dish, with no valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.122 in.
Piston Head Volume (cc): +26.80cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.827 in.
File Fit: No
Gapless: No
Top Ring Thickness: 1.0mm
Top Ring Material: Steel
Second Ring Thickness: 1.2mm
Second Ring Material: Cast iron
Oil Ring Thickness: 2.8mm
Remanufactured: No
Quantity: Sold as a set of 4.
Notes: Can be used in turbo, supercharger, and nitrous applications.
