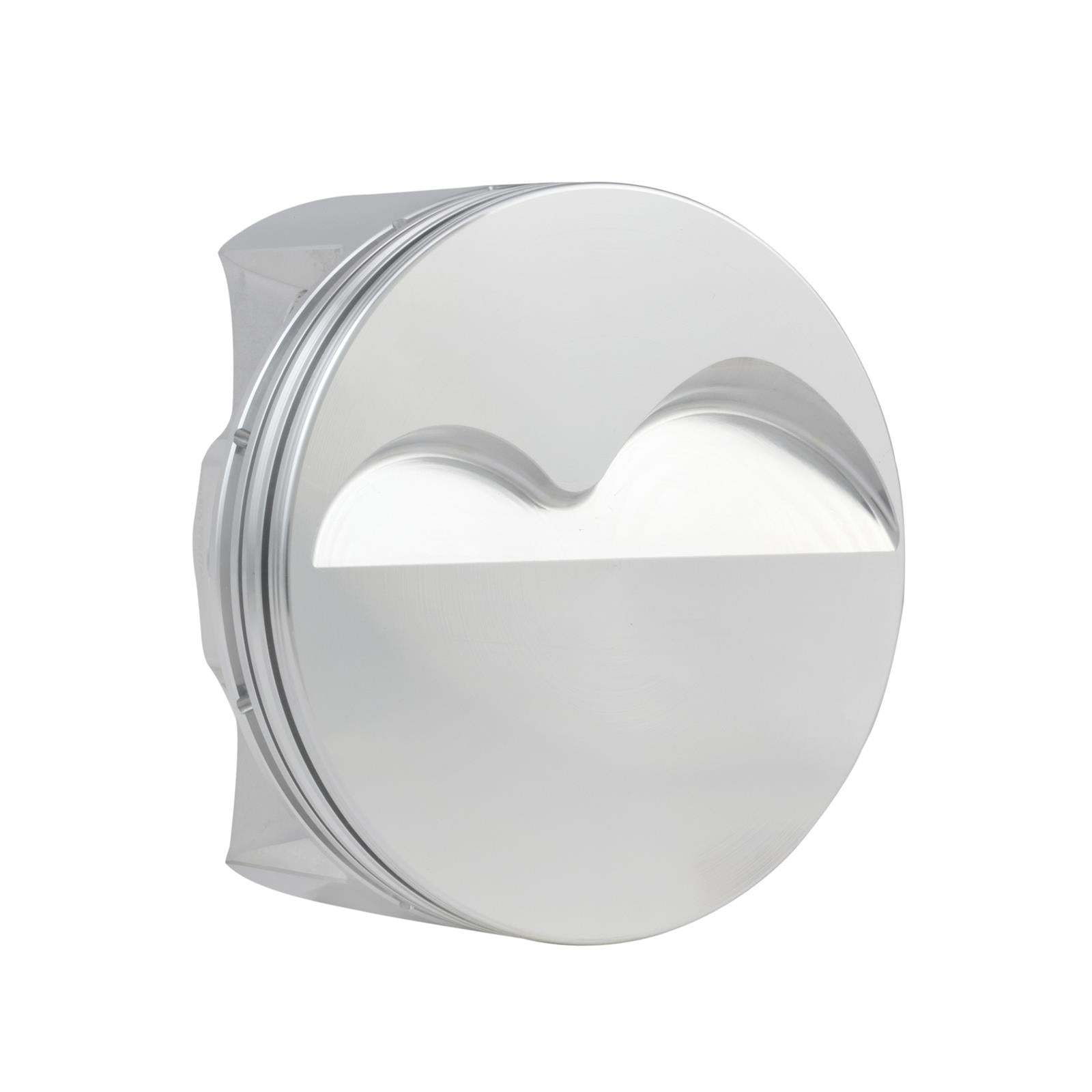

CP Pistons Dodge SRT-4 Piston and Ring Kits SC7504

Engineered for maximum power, CP Pistons Dodge SRT-4 piston and ring kits are compatible with oversized valves and high-lift cams. These pistons are high-strength aluminum forgings with an optimum skirt cam and barrel design for your SRT-4. They also feature deep valve relief depth to handle your turbo, supercharger, and nitrous applications. They are precision CNC-machined and balanced to +/-1 gram and feature high performance rings, accumulator grooves, double pin oilers, pin lock grooves, and include pin fittings and wrist pins. Fire up your sport compact with the power of Dodge SRT-4 pistons.Brand: CP-Carrillo
Manufacturer's Part Number: SC7504
Part Type: Pistons
Product Line: CP Pistons Dodge SRT-4 Piston and Ring Kits
HP Direct Part Number: CNN-SC7504
Piston Rings Included: Yes
Bore (in.): 3.465 in.
Bore (mm): 88.000mm
Stroke: 101.00mm
Engine Stroke Type: Stock
Actual Engine Displacement: 2.5L/150
Rod Length: 151.000mm
Piston Style: Dish, with four valve reliefs
Piston Material: Forged aluminum
Compression Height (in.): 1.400 in.
Piston Head Volume (cc): +13.40cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.866 in.
Piston Ring Thickness: 1.00mm x 1.20mm x 2.80mm
File Fit: No
Gapless: No
Top Ring Thickness: 1.0mm
Top Ring Material: Steel
Top Ring Facing Material: Gas nitrided
Second Ring Thickness: 1.2mm
Second Ring Material: Cast iron
Second Ring Facing Material: Cast iron
Oil Ring Thickness: 2.8mm
Oil Ring Material: Carbon steel
Oil Ring Facing Material: Nitride
Oil Ring Tension: Low
Remanufactured: No
Quantity: Sold individually.
Notes: Can be used in turbo, supercharger, and nitrous applications.
