Description
Brand: CP-Carrillo
Manufacturer's Part Number: CPK9015
Part Type: Powersports Piston and Ring Kits
Product Line: CP Pistons CPK Piston Kits
Automotive Fittings Part Number: CPD-CPK9015
Piston Material: Forged aluminum
Bore (mm): 97.000mm
Stroke: 60.80mm
Wrist Pin Style: Floating
Wrist Pin Retainers Included: Yes
Top Ring Material: Steel
Top Ring Facing Material: Gas nitrided
Second Ring Material: Cast iron
Second Ring Facing Material: Cast iron
Oil Ring Material: Stainless steel
Oil Ring Facing Material: Nitride
File Fit: No
Gapless: No
Gaskets Included: Yes
Quantity: Sold as a kit.
Description:

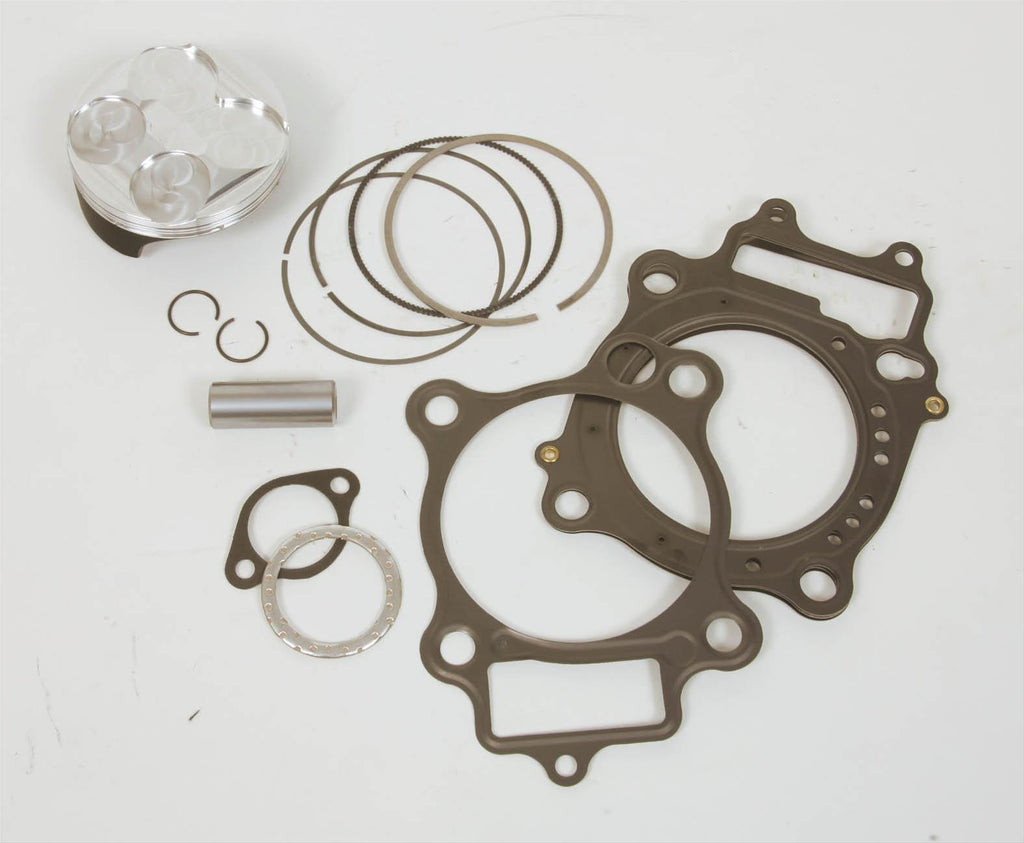

CP Pistons CPK piston kits come complete with a piston, wrist pin, locks, rings, and gasket. The anti-detonation grooves, also known as contact reduction grooves, protect the top ring by disrupting detonation waves. These grooves also limit the piston/cylinder contact during high temperatures and rpm. The featured accumulator groove is a V-shape machined into the second ring to collect excess blowby between the top and second rings. The accumulator groove also collects residual gasses during combustion and alleviates top ring flutter, while increasing ring seal. Other features, such as double pin oilers, in conjunction with their dual fed reservoir, add twice the amount of oil from the cylinder wall to the wrist pin. CP wrist pins have fine grooves that are intrinsically engraved into the product surface at the time of machining. These grooves are transformed into micro-dimple indentations to act as oil reservoirs, and the oil that would normally drain away through the grooves on an untreated product still remains in the dimples. X-forgings minimize friction and reduce weight without compromising strength. CPK piston kits go above and beyond in both quality and dependability.
Manufacturer's Part Number: CPK9015
Part Type: Powersports Piston and Ring Kits
Product Line: CP Pistons CPK Piston Kits
Automotive Fittings Part Number: CPD-CPK9015
Piston Material: Forged aluminum
Bore (mm): 97.000mm
Stroke: 60.80mm
Wrist Pin Style: Floating
Wrist Pin Retainers Included: Yes
Top Ring Material: Steel
Top Ring Facing Material: Gas nitrided
Second Ring Material: Cast iron
Second Ring Facing Material: Cast iron
Oil Ring Material: Stainless steel
Oil Ring Facing Material: Nitride
File Fit: No
Gapless: No
Gaskets Included: Yes
Quantity: Sold as a kit.
Description:
CP Pistons CPK piston kits come complete with a piston, wrist pin, locks, rings, and gasket. The anti-detonation grooves, also known as contact reduction grooves, protect the top ring by disrupting detonation waves. These grooves also limit the piston/cylinder contact during high temperatures and rpm. The featured accumulator groove is a V-shape machined into the second ring to collect excess blowby between the top and second rings. The accumulator groove also collects residual gasses during combustion and alleviates top ring flutter, while increasing ring seal. Other features, such as double pin oilers, in conjunction with their dual fed reservoir, add twice the amount of oil from the cylinder wall to the wrist pin. CP wrist pins have fine grooves that are intrinsically engraved into the product surface at the time of machining. These grooves are transformed into micro-dimple indentations to act as oil reservoirs, and the oil that would normally drain away through the grooves on an untreated product still remains in the dimples. X-forgings minimize friction and reduce weight without compromising strength. CPK piston kits go above and beyond in both quality and dependability.
