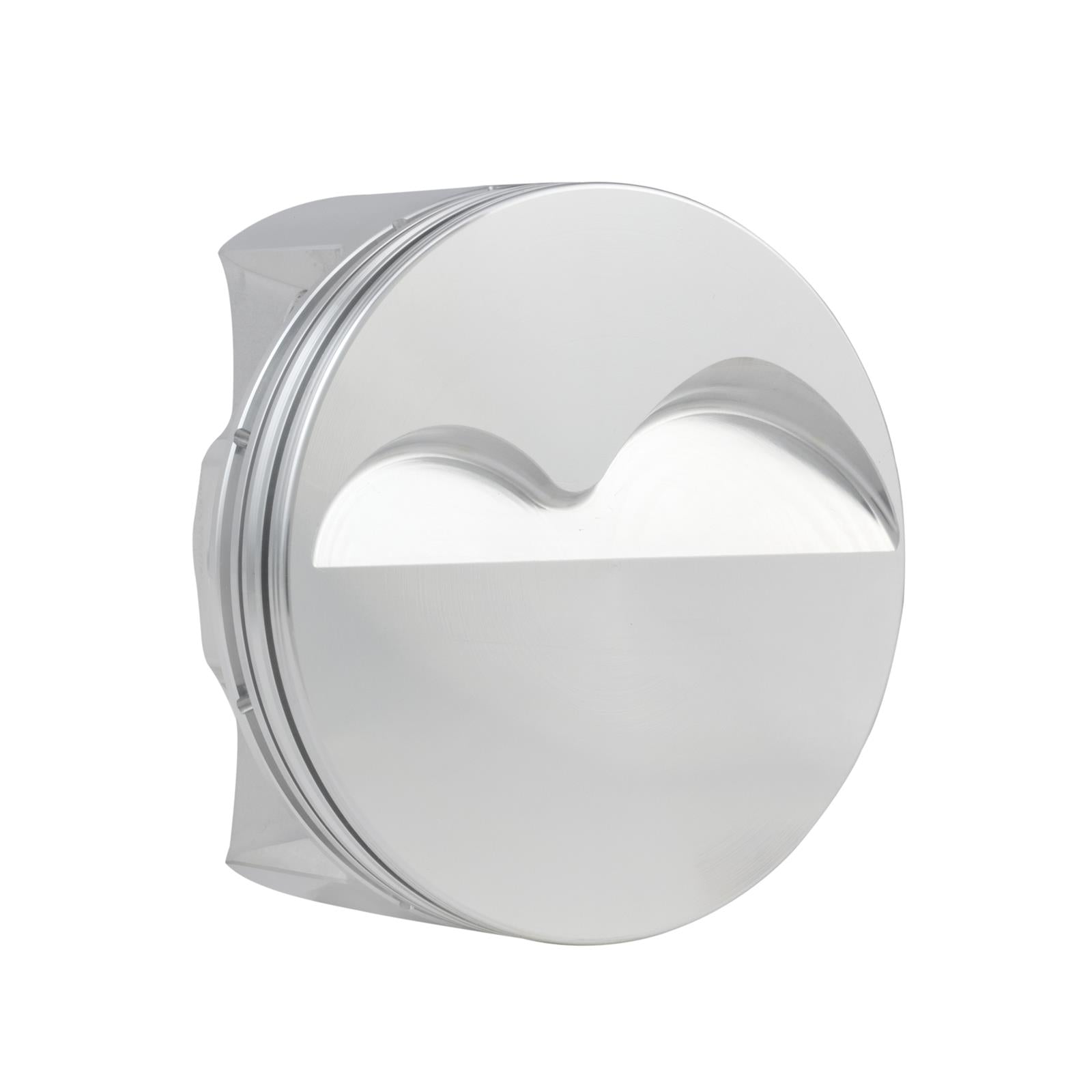

CP Pistons Bullet Series Pistons BBC5321-100-8

CP Pistons Bullet Series pistons are designed for a wide range of vehicles, including many Ford, Chevrolet, and Dodge engine and cylinder head applications from the early 1960s and up. These high performance replacements are inspired by the top forms of motorsports. Bullet forged aluminum pistons are available in numerous dish, dome, and flat top configurations; as well as many bore, stroke, and size options. The world leader in advanced, state-of-the-art piston manufacturing facilities, CP-Carrillo offers:

* Centralized manufacturing cells
* Application-specific forgings and hardware
* Larger production runs
* Available off the shelf
* Premier machines and tooling
* High-quality pistons at an affordable price

Bullet Series piston features:

* Pistons balanced ± 1 gram
* Available of the shelf
* Manufactured from 2618 for strength and durability
* Dual forced pin oilers
* Contact reduction grooves
* Accumulator groove
* Contemporary ring sets
* Forged side relief
* Chromoly wrist pins with wire locks
* FEA designed forging
* Tight tolerances
* Same manufacturing process as CP Pistons
* Rigorous quality control
* ISO 9000 certified
* Available individually or in a set of 8Brand: CP-Carrillo
Manufacturer's Part Number: BBC5321-100-8
Part Type: Pistons
Product Line: CP Pistons Bullet Series Pistons
HP Direct Part Number: CNN-BBC5321100-8
Piston Rings Included: Yes
Bore (in.): 4.600 in.
Bore (mm): 116.840mm
Stroke: 4.750 in.
Engine Stroke Type: Stroked
Rod Length: 6.700 in.
Piston Style: Flat top, with single valve relief
Piston Material: Forged aluminum
Compression Height (in.): 1.120 in.
Piston Head Volume (cc): +3.40cc
Wrist Pin Style: Press-fit or floating
Wrist Pin Retainers Included: Yes
Wrist Pin Included: Yes
Pin Diameter (in.): 0.990 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
File Fit: Yes
Gapless: No
Remanufactured: No
Quantity: Sold as a set of 8.
Notes: For use with open chamber cylinder heads.
